5935-00-104-9992
Plug-In Electronic Components Socket
5935001049992 001049992 400066
An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors". View more Plug-In Electronic Components Socket
May 2023
4
Marketplace 5935-00-104-9992
Request a Quotation from participating marketplace vendors
Related Documents 5935-00-104-9992 5+ Documents (More...)
400066 Plug-In https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-00-104-9992 Plug-In Electronic Components
https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-00-104-9992 Plug-In Electronic Components Socket,400066
... 011539446.2540 COIL,EVAPORATOR 18 EA NS Request Quotation Subscribe to View Vendor Details... 400066
JavaScript in your web browser . 4730-99-732-7735Pipe Tee4730997327735 997327735 1076 B 217 H926-400066
217 JavaScript in your web browser . 4730-99-732-7735Pipe Tee4730997327735 9973277351076 B 217H926-400066
153-9446 Evaporator Coil 2540011539446 011539446 2463Circuit Card Assembly5998014282463 014282463 400066
/fsg-53/fsc-5330/no 5330-25-134-2578 Preformed Packing 5330251342578251342578 FMV-140012/22F1403-400066
067-9913 Instruction Plate 9905010679913 010679913 2463Circuit Card Assembly5998014282463 014282463 400066
www.nsnlookup.com /fsg-59/fsc-5998/us 5998-01-428-2463 Circuit Card Assembly 5998014282463014282463 400066
21-895-0873 Angle Bracket 5340218950873 218950873,400066 Tee4730997327735 9973277351076 B 217H926-400066
Restrictions 5935-00-104-9992
5935-00-104-9992 is a Plug-In Electronic Components Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5935-00-104-9992
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-00-104-9992
- US Navy (N9BN)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- KE
Approved Sources 5935-00-104-9992
- Part Number
- Manufacturer
- Status
- 400066
- Manufacturer
- 20284 - Aimtron Systems, Llc (Active)
- Primary Buy
- Primary Buy
- 400066
- 56289 - Sprague Electric Co World Hqs (Active)
- Secondary Buy
- Secondary Buy
- 400066
- 12909 - Cardion Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5935-00-104-9992
- Characteristic
- Specifications
- FIIG
- Specifications
- A02300

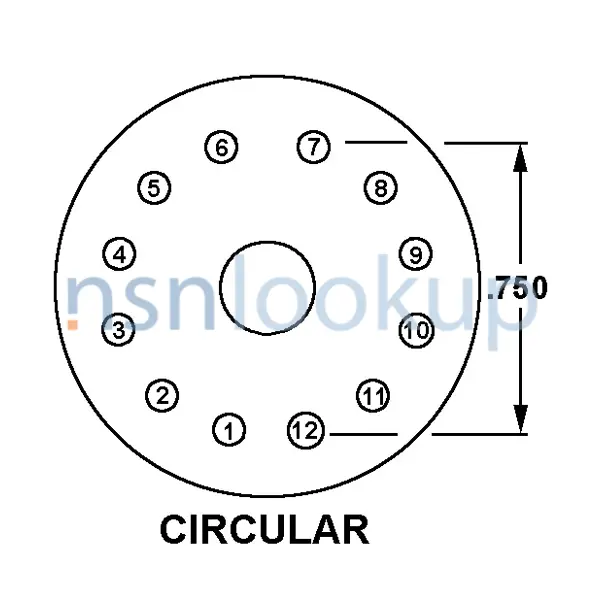

- Contact Position Arrangement Style [CRPY]
- Circular
- Accommodated Contact Quantity [AFRL]
- 12
- Contact Material [AFRG]
- Brass
- Contact Surface Treatment [AFRH]
- Cadmium
- Body Style [AAQL]
- High Voltage
- Overall Height [ABKW]
- 0.669 Inches Nominal
- Body Diameter [ABPM]
- 1.656 Inches Nominal
- Overall Diameter [ADAV]
- 1.938 Inches Nominal
- Projection Length Above Mounting Surface [AKXD]
- 0.200 Inches Nominal
- Body Material [AAFZ]
- Mica
- Terminal Type And Quantity [TTQY]
- 12 Any Acceptable
- Mounting Type For Which Designed [BCNX]
- Tube
DLA Procurement Analysis 5935-00-104-9992
Management Data 5935-00-104-9992
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5935-00-104-9992
Freight Information 5935-00-104-9992
5935-00-104-9992 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061680. A Sub NMFC of Z. It has a NMFC Description of ELEC WIRING PLUGS ETC. 5935-00-104-9992 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34570 which rates the freight between FCL and LCL. 5935-00-104-9992 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5935-00-104-9992 is not classified as a special type of cargo when transported by water. 5935-00-104-9992 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5935-00-104-9992
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- MIL-DTL-17667, Neutral Wrapping Paper
- PPP-C-795, Cellular Plastic Film Cushioning; or A-A-3129, Open Cell Plastic Cushioning; or PPP-C-1797, Polypropylene Foam Cushioning; or A-A-59136, Polyethylene Foam Cushioning
- --
- --
- No special marking
- MIL-DTL-17667, Neutral Wrapping Paper
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566 or PPP-B-676, Folding or Setup Box
Contracting Technical Data File (CTDF) 5935-00-104-9992 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- Z
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
