5935-00-076-3024
Plug-In Electronic Components Socket
5935000763024 000763024 WP5C X106-1 430049 10304428 WPSC 204264 499-044-028 70-312 4-6451-742 377-410-022
An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors". View more Plug-In Electronic Components Socket
Managed by United States
NSN Created on 1 Jan 1963
Data Last Changed
November 2023
November 2023
NATO Update Count
20
20
NATO Data Quality
Marketplace 5935-00-076-3024
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 5935-00-076-3024 5+ Documents (More...)
WP5C X106-1 430049 10304428 WPSC 204264 377-410-022 499-044-028 70-312 4-6451-742 An item designed to
(Identification) 1/3 NSN 5935-00-076-3024 (Identification) 2/3 NSN 5935-00-076-3024 (Identification
NE Updated Every Day 5935-00-076-3024 RQST Updated Every Day 5935-00-076-3024 RQST NE Related Documents
(Identification) 1/3 NSN 5935-00-076-3024 (Identification) 2/3 NSN 5935-00-076-3024 (Identification
NE Updated Every Day 5935-00-076-3024 RQST Updated Every Day 5935-00-076-3024 RQST NE Related Documents
for $1 a day Upgrade your Account Upgrade 2810-00-215-9687Deflector Assembly2810002159687 002159687 430049
-001 430049 Managed by United States NSN Created on 13 Oct 1976 Data Last Changed May 2023 NATO Update
,WP5C Account Upgrade 5935-00-076-3024Plug-In Electronic Components Socket5935000763024 000763024 WP5C
-001 430049 Managed by United States NSN Created on 13 Oct 1976 Data Last Changed May 2023 NATO Update
,WP5C Account Upgrade 5935-00-076-3024Plug-In Electronic Components Socket5935000763024 000763024 WP5C
$1 a day Upgrade your Account Upgrade 4320-01-158-1352Compensator Housing4320011581352 011581352 204264
Request a Quotation from participating marketplace vendors Request Subscribe to View Vendor Details... 204264
JavaScript in your web browser . 4710-14-483-0855Branched Metal Tube Assembly4710144830855 144830855 204264
Request a Quotation from participating marketplace vendors Request Subscribe to View Vendor Details... 204264
JavaScript in your web browser . 4710-14-483-0855Branched Metal Tube Assembly4710144830855 144830855 204264
Account Upgrade 5935-01-071-0401Plug-In Electronic Components Socket5935010710401 010710401 PP10 430049
day Upgrade your Account Upgrade 2510-01-482-7757Vehicular Door Hinge2510014827757 014827757 133-430049
Plug-In Electronic Components Socket,PP10 Master Tape Detent Assembly 7025010289700 430049 https https
day Upgrade your Account Upgrade 2510-01-482-7757Vehicular Door Hinge2510014827757 014827757 133-430049
Plug-In Electronic Components Socket,PP10 Master Tape Detent Assembly 7025010289700 430049 https https
Upgrade your Account Upgrade 2915-00-296-6773Cure Dated Pump Parts Kit2915002966773 002966773 212541 204264
204264-1 Managed by United States NSN Created on 1 Jan 1961 Data Last Changed January 2023 NATO Update
Subscribe to View Vendor Details... 204-264-1 PARTS KIT,PUMP,CURE DATED 28 EA NS Request Quotation 204264
204264-1 Managed by United States NSN Created on 1 Jan 1961 Data Last Changed January 2023 NATO Update
Subscribe to View Vendor Details... 204-264-1 PARTS KIT,PUMP,CURE DATED 28 EA NS Request Quotation 204264
Restrictions 5935-00-076-3024
5935-00-076-3024 is a Plug-In Electronic Components Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item contains Silver.
Import and Export 5935-00-076-3024
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-00-076-3024
- US Army (A918)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- A196
- Supplementary Receivers:
- CL
- US Air Force (FXGX)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- FXTX
- US Navy (N9BN)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- HDKEJV
- Poland (WP01)
- Effective Date:
- 1 Jun 2006
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5935-00-076-3024
- Part Number
- Manufacturer
- Status
- 10304428
- Manufacturer
- 18876 - Us Army Aviation And Missile Command (Active)
- Primary Buy
- Primary Buy
- WPSC
- 76854 - Electro Switch Corp. (Active)
- Secondary Buy
- Secondary Buy
- 204264
- 14028 - Sypris Electronics, Llc (Active)
- Secondary Buy
- Secondary Buy
- 499-044-028
- 07421 - L3harris Interstate Electronics (Active)
- Secondary Buy
- Secondary Buy
- 70-312
- 94696 - Se Relays Llc Magnecraft (Active)
- Secondary Buy
- Secondary Buy
- 4-6451-742
- 76854 - Electro Switch Corp. (Active)
- Secondary Buy
- Secondary Buy
- 377-410-022
- 07421 - L3harris Interstate Electronics (Active)
- Secondary Buy
- Secondary Buy
- WPSC
- 29238 - Oak Industries Inc Switch Div (Obsolete)
- Advisory Reference
- Advisory Reference
- 204264
- 06KW9 - Lucent Technologies Inc Dba Federal (Replaced)
- Advisory Reference
- Advisory Reference
- WP5C
- 76854 - Electro Switch Corp. (Active)
- Advisory Reference
- Advisory Reference
- X106-1
- 36378 - Raytheon Technical Services Company (Replaced)
- Advisory Reference
- Advisory Reference
- 430049
- 36378 - Raytheon Technical Services Company (Replaced)
- Advisory Reference
- Advisory Reference
Datasheet 5935-00-076-3024
- Characteristic
- Specifications
- FIIG
- Specifications
- A02300
- Contact Position Arrangement Style [CRPY]
- Triple In Line
- Accommodated Contact Quantity [AFRL]
- 10
- Contact Material [AFRG]
- Copper Alloy
- Contact Surface Treatment [AFRH]
- Silver

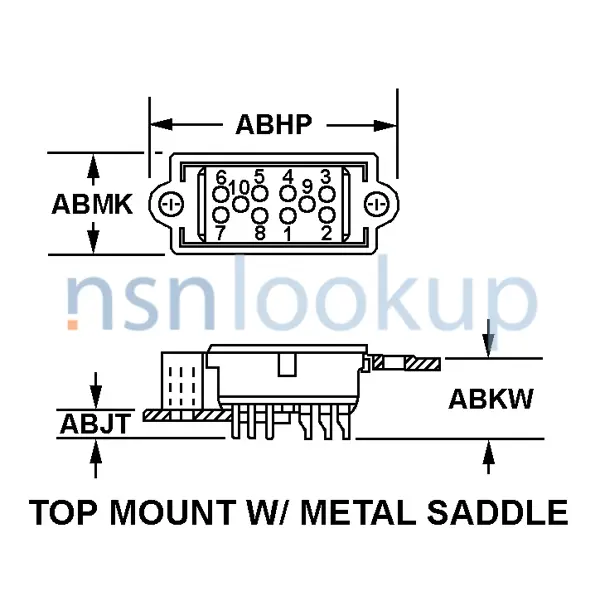

- Body Style [AAQL]
- Top Mount W/Metal Saddle
- Overall Length [ABHP]
- 2.594 Inches Nominal
- Overall Height [ABKW]
- 1.000 Inches Nominal
- Overall Width [ABMK]
- 1.750 Inches Nominal
- Body Material [AAFZ]
- Plastic
- Terminal Type And Quantity [TTQY]
- 10 Tab, Solder Lug
- Mounting Type For Which Designed [BCNX]
- Chassis
- Mounting Method [AXGY]
- Unthreaded Hole
- Mounting Hole Style [AEVB]
- Rectangular, W/Two Mounting Holes/Slots
- Mounting Hole Diameter [ABTB]
- 0.188 Inches Nominal
- Body Mounting Hole Accommodation Length [ADAJ]
- 1.275 Inches Nominal
- Body Mounting Hole Accommodation Width [ADAK]
- 1.478 Inches Nominal
- Distance Between Mounting Facility Centers [AEJN]
- 2.125 Inches Nominal
- Polarization Type [AKWN]
- Contact Position
- Features Provided [CBBL]
- Component Retaining Device
- Specific Equipment Accommodated [AFJE]
- Relay
- Fabrication Method [AARN]
- Molded
- Precious Material [PRMT]
- Silver
- Precious Material And Weight [PMWT]
- 0.010 Silver Grains, Troy
- Precious Material And Location [PMLC]
- Contact Surfaces Silver
