5935-00-062-1639
Electrical Receptacle Connector
5935000621639 000621639 119703
An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR. View more Electrical Receptacle Connector
May 2023
2
Marketplace 5935-00-062-1639
Request a Quotation from participating marketplace vendors
Related Documents 5935-00-062-1639 5+ Documents (More...)
Updated Every Day 5935-00-062-1639 RQST NE Related Documents 5935-00-062-1639 5+ Documents ( More...
) https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-00-062-1639 Electrical Receptacle Connector 000621639
https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-00-062-1639 Electrical Receptacle Connector 000621639
Upgrade your Account Upgrade 5935-00-062-1639Electrical Receptacle Connector5935000621639 000621639
to enable JavaScript in your web browser . 5305-15-152-3440Screw5305151523440 1515234400-119703 https
119703 https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-00-062-1639 Electrical Receptacle Connector
/fsg-53/fsc-5305/it
/fr 5975-14-417-7037 Electrical Equipment Mounting Base 144177037 Screw 5305151523440 151523440,0-119703
Part NumberManufacturerStatus9505560 A4735 - Isoli Spa (Active) Primary Buy RNCC 3 RNVC 2 DAC 1 0-119703
to enable JavaScript in your web browser . 5305-15-152-3440Screw5305151523440 151523440 0-119703 9505560
14-503-4966 Primary Expulsion Fuse Cutout 5920145034966 Active) Primary Buy RNCC 3 RNVC 2 DAC 1 0-119703
Restrictions 5935-00-062-1639
5935-00-062-1639 is a Electrical Receptacle Connector that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item contains gold.
Import and Export 5935-00-062-1639
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-00-062-1639
- US Navy (N9BN)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- NIND
- Supplementary Collaborators:
- HD
Approved Sources 5935-00-062-1639
- Part Number
- Manufacturer
- Status
- 119703
- Manufacturer
- 09306 - Invensys Systems, Inc. (Active)
- Primary Buy
- Primary Buy
Datasheet 5935-00-062-1639
- Characteristic
- Specifications
- FIIG
- Specifications
- A039B0

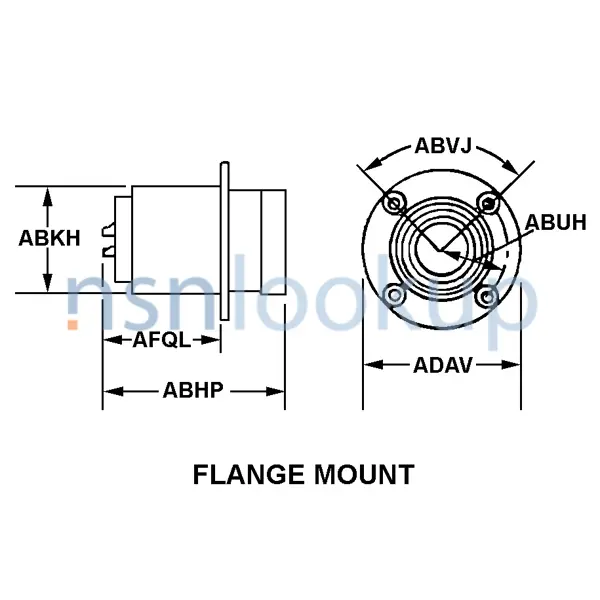

- Body Style [AAQL]
- Flange Mount
- Mounting Hole Circle Radius [ABUH]
- 2.859 Inches Nominal
- Distance From Mounting Shoulder To Rear Face [AFQL]
- 5.000 Inches Nominal
- Unthreaded Mounting Hole Diameter [AEBV]
- 0.187 Inches Nominal
- Threaded Device Type [AFQR]
- Back Shell
- Thread Series Designator [THSD]
- Unef
- Nominal Thread Size [CQJX]
- 1.250 Inches
- Thread Class [AAJD]
- 2A
- Thread Quantity Per Inch [CMLP]
- 12
- Thread Direction [AAJF]
- Right-Hand
- Shell Type [AFRT]
- Solid
- Shell Material [CSPT]
- Steel
- Shell Surface Treatment [CSWM]
- Chromate
- Mating End Quantity [AFQW]
- 1
- Contact Position Arrangement Style [AFQX]
- B4s Single Mating End
- Insert Material [CQZG]
- Plastic Single Mating End
- Included Contact Quantity [CXCG]
- 1 Single Mating End 1St Contact Grouping
- Included Contact Quantity [CXCG]
- 3 Single Mating End 2Nd Contact Grouping
- Contact Removability [AFQZ]
- Nonremovable Single Mating End All Contact Groupings
- Included Contact Type [CXCL]
- Round Pin Single Mating End All Contact Groupings
- Contact Material [CQTZ]
- Copper Alloy Single Mating End All Contact Groupings
- Contact Surface Treatment [CQYH]
- Gold Single Mating End All Contact Groupings
- Terminal Location [CQTM]
- Back Single Mating End All Contact Groupings
- Special Features [FEAT]
- Wire Leads 5.500 In. Lg
- Precious Material [PRMT]
- Gold
- Precious Material And Weight [PMWT]
- 0.020 Gold Grains, Troy
- Precious Material And Location [PMLC]
- Contact Surfaces Gold
DLA Procurement Analysis 5935-00-062-1639
Management Data 5935-00-062-1639
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5935-00-062-1639
Freight Information 5935-00-062-1639
5935-00-062-1639 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061680. A Sub NMFC of Z. It has a NMFC Description of ELEC WIRING PLUGS ETC. 5935-00-062-1639 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34570 which rates the freight between FCL and LCL. 5935-00-062-1639 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5935-00-062-1639 is not classified as a special type of cargo when transported by water. 5935-00-062-1639 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5935-00-062-1639
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- MIL-DTL-17667, Type II, Neutral Wrapping Paper, Creped
- ASTM-D4727, Fiberboard used as Pads, Cells, Die-cuts or Sleeves
- --
- ASTM-D5118, Type CF, Class Domestic, Corrugated Fiberboard Box
- No special marking
- MIL-DTL-17667, Type II, Neutral Wrapping Paper, Creped
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Any Suitable Fiber Box
