5935-00-056-2475
Plug-In Electronic Components Socket
5935000562475 000562475 CP35-1-18B1BC 38991B 9159439 10051783 3701-50B30 203-62-14-001 A7010014REV2PT1 479408 A7010014P1REV2 54A14775 2036214001
An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors". View more Plug-In Electronic Components Socket
November 2023
68



Marketplace 5935-00-056-2475
Request a Quotation from participating marketplace vendors
Related Documents 5935-00-056-2475 5+ Documents (More...)
54A14775 2036214001 An item designed to electrically connect and mechanically position the base of an
(Identification) 1/3 NSN 5935-00-056-2475 (Identification) 2/3 NSN 5935-00-056-2475 (Identification
https//www.nsnlookup.com /fsg-47/fsc-4720/it 4720-15-142-9159 Tube 4720151429159 151429159,479408 479408
Italy NSN Created on 22 Oct 1996 Data Last Changed https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-00-056-2475
Plug-In Electronic Components Socket 2475Plug-In Electronic Components Socket5935000562475 000562475
CP35-1-18B1BC 9159439 10051783 38991B 3701-50B30 Sprocket Wheel 3020011363638 011363638,50B30 CP35-1
www.nsnlookup.com /fsg-30/fsc-3020/ca 3020-21-886-4385 https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-00-056-2475
Plug-In Electronic Components Socket Sprocket Wheel 3020218864385 218864385,50B30 CP35-1-18B1BC

/fsg-30/fsc-3020/us
Plug-In Electronic Components Socket www.nsnlookup.com /fsg-59/fsc-5935/us 5935-00-056-2475 https
3020005577273005577273 www.nsnlookup.com /fsg-30/fsc-3020/ca 3020-21-886-4385 Sprocket 218864385,50B30 CP35-1-18B1BC
Restrictions 5935-00-056-2475
5935-00-056-2475 is a Plug-In Electronic Components Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item contains Silver.
Import and Export 5935-00-056-2475
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-00-056-2475
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Israel (YD01)
- Effective Date:
- 1 Apr 1991
- Kuwait (YK01)
- Effective Date:
- 1 Jan 2015
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Jul 1997
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Dec 1995
Approved Sources 5935-00-056-2475
- Part Number
- Manufacturer
- Status
- 203-62-14-001
- Manufacturer
- 71785 - Cinch Connectivity Solutions Inc. (Active)
- Original Design
- Original Design
- CP35-1-18B1BC
- 25500 - Lockheed Martin Corporation (Active)
- Secondary Buy
- Secondary Buy
- 38991B
- 38151 - Marathon Electric, Llc (Obsolete)
- Secondary Buy
- Secondary Buy
- 9159439
- 18876 - Us Army Aviation And Missile Command (Active)
- Secondary Buy
- Secondary Buy
- 10051783
- 18876 - Us Army Aviation And Missile Command (Active)
- Secondary Buy
- Secondary Buy
- 3701-50B30
- 00752 - L3harris Technologies, Inc. (Active)
- Secondary Buy
- Secondary Buy
- A7010014REV2PT1
- 78792 - General Electric Co Transmitter (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 479408
- 94580 - Honeywell International Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- A7010014REV2PT1
- 24446 - General Electric Company (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- A7010014P1REV2
- 24446 - General Electric Company (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 54A14775
- 71785 - Cinch Connectivity Solutions Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- A7010014P1REV2
- 78792 - General Electric Co Transmitter (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 2036214001
- 71785 - Cinch Connectivity Solutions Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5935-00-056-2475
- Characteristic
- Specifications
- FIIG
- Specifications
- A02300
- Accommodated Contact Quantity [AFRL]
- 14
- Body Material [AAFZ]
- Plastic
- Body Style [AAQL]
- Top Or Bottom Mount W/Metal Saddle
- Contact Material [AFRG]
- Beryllium Copper

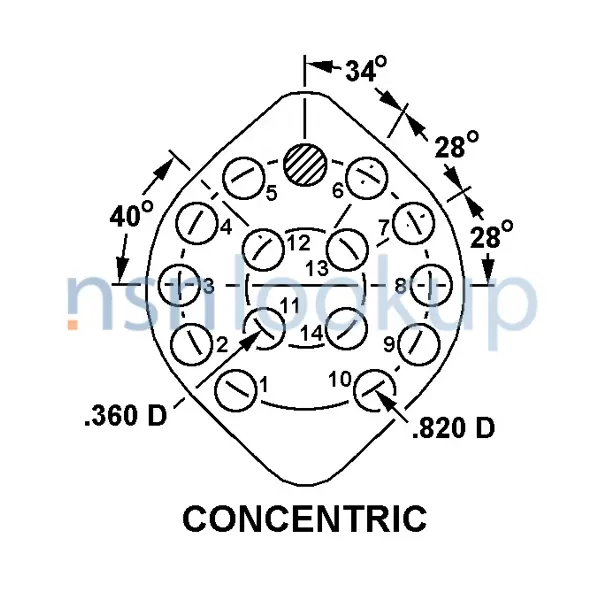

- Contact Position Arrangement Style [CRPY]
- Concentric
- Contact Surface Treatment [AFRH]
- Silver
- Distance Between Mounting Facility Centers [AEJN]
- 1.120 Inches Minimum And 1.130 Inches Maximum
- Fabrication Method [AARN]
- Molded
- Mounting Hole Diameter [ABTB]
- 0.122 Inches Minimum And 0.129 Inches Maximum
- Mounting Hole Style [AEVB]
- Two Mounting Holes/Slots, In-Line
- Mounting Method [AXGY]
- Saddle
- Mounting Type For Which Designed [BCNX]
- Chassis
- Polarization Type [AKWN]
- Colored Dot
- Precious Material And Location [PMLC]
- Contact Surfaces Silver
- Precious Material And Weight [PMWT]
- 0.014 Silver Grains, Troy
- Precious Material [PRMT]
- Silver
- Projection Length Below Mounting Surface [AKXC]
- 0.516 Inches Nominal
- Saddle Material [AKWW]
- Brass
- Saddle Surface Treatment [AKWX]
- Cadmium
- Overall Height [ABKW]
- 0.672 Inches Minimum And 0.704 Inches Maximum
- Overall Length [ABHP]
- 1.328 Inches Minimum And 1.360 Inches Maximum
- Overall Width [ABMK]
- 0.921 Inches Minimum And 0.953 Inches Maximum
- Specific Equipment Accommodated [AFJE]
- Relay
- Terminal Type And Quantity [TTQY]
- 14 Tab, Solder Lug
