5935-00-033-7651
Plug-In Electronic Components Socket
5935000337651 000337651 8004-7G6 10127811
An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors". View more Plug-In Electronic Components Socket
May 2023
13
Marketplace 5935-00-033-7651
Request a Quotation from participating marketplace vendors
Related Documents 5935-00-033-7651 5+ Documents (More...)
(Identification) 1/3 NSN 5935-00-033-7651 (Identification) 2/3 NSN 5935-00-033-7651 (Identification
BUY NE FedMall Updated Every Day 5935-00-033-7651 RQST NE Updated Every Day 5935-00-033-7651 RQST
Marketplace Restrictions Approved Sources Datasheet https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-00-033-7651
Plug-In Electronic Components Socket RQST NE Updated Every Day 5935-00-033-7651 RQST https//www.nsnlookup.com
Components Socket your Account Upgrade 5935-00-033-7651Plug-In Electronic Components Socket5935000337651 000337651
8004-7G6 your Account Upgrade 5935-00-033-7651Plug-In Electronic Components Socket5935000337651 000337651
Components Socket your Account Upgrade 5935-00-033-7651Plug-In Electronic Components Socket5935000337651 000337651
8004-7G6 Shouldered Shaft 3040144848320 144848320,7G6 DAC 5 9001-KP-7G6 https//www.nsnlookup.com /fsg
Plug-In Electronic Components Socket 8004-7G6 -118-8508 Bushing Insulator 5970251188508 251188508,7G6
-00-393-4833Oil Pump4320003934833 003934833 NSN 5935-00-033-7651 274-3223 Film Fixed Resistor https/
Restrictions 5935-00-033-7651
5935-00-033-7651 is a Plug-In Electronic Components Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item contains gold.
Import and Export 5935-00-033-7651
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-00-033-7651
- US Navy (N9BN)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- HD
Approved Sources 5935-00-033-7651
- Part Number
- Manufacturer
- Status
- 8004-7G6
- Manufacturer
- 00779 - Te Connectivity Corporation (Active)
- Primary Buy
- Primary Buy
- 8004-7G6
- 91506 - Augat Inc (Replaced)
- Original Design
- Original Design
- 10127811
- 18876 - Us Army Aviation And Missile Command (Active)
- Secondary Buy
- Secondary Buy
Datasheet 5935-00-033-7651
- Characteristic
- Specifications
- FIIG
- Specifications
- A02300

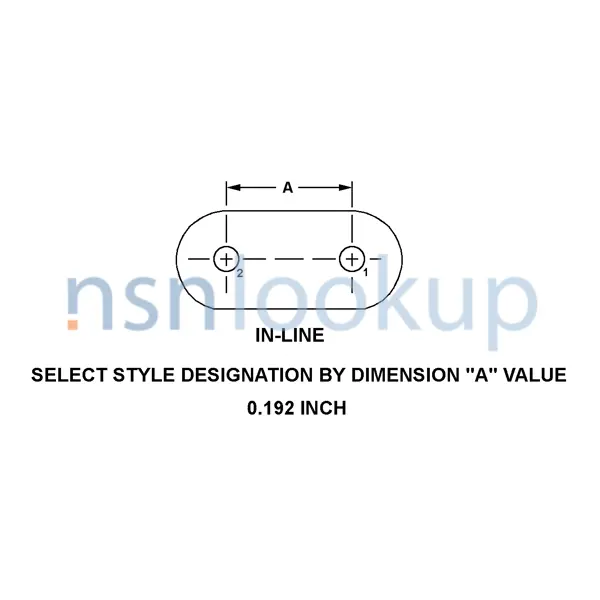

- Contact Position Arrangement Style [CRPY]
- In Line
- Accommodated Contact Quantity [AFRL]
- 2
- Contact Material [AFRG]
- Beryllium Copper
- Contact Surface Treatment [AFRH]
- Gold

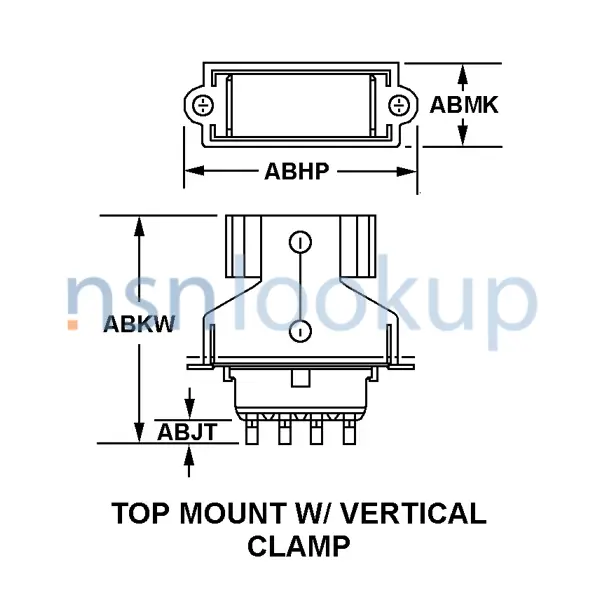

- Body Style [AAQL]
- Top Mount W/Vertical Clamp
- Overall Length [ABHP]
- 0.812 Inches Nominal
- Terminal Length [ABJT]
- 0.187 Inches Nominal
- Overall Height [ABKW]
- 0.906 Inches Nominal
- Overall Width [ABMK]
- 0.328 Inches Nominal
- Body Material [AAFZ]
- Plastic
- Terminal Type And Quantity [TTQY]
- 2 Wire Lead
- Mounting Type For Which Designed [BCNX]
- Chassis
- Mounting Method [AXGY]
- Unthreaded Hole
- Mounting Hole Style [AEVB]
- Round, Body
- Body Mounting Hole Accommodation Diameter [ADAL]
- 0.093 Inches Nominal
- Specific Equipment Accommodated [AFJE]
- Crystal
DLA Procurement Analysis 5935-00-033-7651
Management Data 5935-00-033-7651
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 5935-00-033-7651
Freight Information 5935-00-033-7651
5935-00-033-7651 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061680. A Sub NMFC of Z. It has a NMFC Description of ELEC WIRING PLUGS ETC. 5935-00-033-7651 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34570 which rates the freight between FCL and LCL. 5935-00-033-7651 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5935-00-033-7651 is not classified as a special type of cargo when transported by water. 5935-00-033-7651 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5935-00-033-7651
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- --
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- See Method of Preservation
- --
Contracting Technical Data File (CTDF) 5935-00-033-7651 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
