5935-00-020-9008
Electrical Connector Guide
5935000209008 000209008 188444-1 2050048-0701 200390-4 4501026
An aligning device specifically designed to insure proper mating of electrical connectors. Its mating end is unthreaded. It is designed to be installed in an ADAPTER (2), CONNECTOR; CONNECTOR BODY, PLUG, RECEPTACLE, ELECTRICAL; CONNECTOR BODY, RECEPTACLE, ELECTRICAL; CONNECTOR, PLUG, ELECTRICAL; CONNECTOR, RECEPTACLE, ELECTRICAL; COVER, ELECTRICAL CONNECTOR; DUMMY CONNECTOR, PLUG; DUMMY CONNECTOR, RECEPTACLE; INSERT, ELECTRICAL CONNECTOR; SHELL, ELECTRICAL CONNECTOR; or a SHIELD, ELECTRICAL CONNECTOR. It may be used for polarization. Its mounting facilities may include threads, press fit, or the like. View more Electrical Connector Guide
January 2023
38
Marketplace 5935-00-020-9008
Request a Quotation from participating marketplace vendors
Related Documents 5935-00-020-9008 5+ Documents (More...)
RQST NE Updated Every Day 5935-00-020-9008 RQST Updated Every Day 5935-00-020-9008 RQST NE Related
Electrical Connector Guide 5935000209008 Documents 5935-00-020-9008 5+ Documents ( More... https
5935991194775 4844 5935-14-552-5867 https 5935218061213 https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-00-020-9008
Electrical Connector Guide 5935000209008 https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935 https
CIRCUIT CARD ASSEMBLY 1245 EA NS Request Quotation Subscribe to View Vendor Details... 200390-4 CIRCUIT
Guide 5935000209008 Upgrade 5935-00-020-9008Electrical Connector Guide5935000209008 000209008 188444
CIRCUIT CARD ASSEMBLY 1 EA NS Request Quotation https//www.nsnlookup.com /fsg-59/fsc-5935/us 5935-00-020-9008
Electrical Connector Guide 5935000209008 Request a Quotation from participating marketplace vendors
Electrical Connector Guide 5935000209008 day Upgrade your Account Upgrade 5935-00-020-9008Electrical
Connector Guide5935000209008 000209008 188444 //www.nsnlookup.com /fsg-59/fsc-5935/us 5935-00-020-9008
Restrictions 5935-00-020-9008
5935-00-020-9008 is a Electrical Connector Guide that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5935-00-020-9008
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5935-00-020-9008
- Poland (WP01)
- Effective Date:
- 1 Apr 2006
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Mar 1998
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5935-00-020-9008
- Part Number
- Manufacturer
- Status
- 188444-1
- Manufacturer
- 37695 - Raytheon Company (Active)
- Primary Buy
- Primary Buy
- 2050048-0701
- 06845 - Raytheon Company (Active)
- Secondary Buy
- Secondary Buy
- 200390-4
- 00779 - Te Connectivity Corporation (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 4501026
- 13799 - H & E Venture, Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5935-00-020-9008
- Characteristic
- Specifications
- FIIG
- Specifications
- A10100
- Body Diameter [ABPM]
- 0.180 Inches Nominal
- Material [MATT]
- Copper Alloy
- Mounting Facility Type And Quantity [AXHR]
- 1 Threaded Coupling
- Nominal Thread Size [CQJX]
- 0.112 Inches
- Overall Length [ABHP]
- 0.770 Inches Minimum And 0.790 Inches Maximum

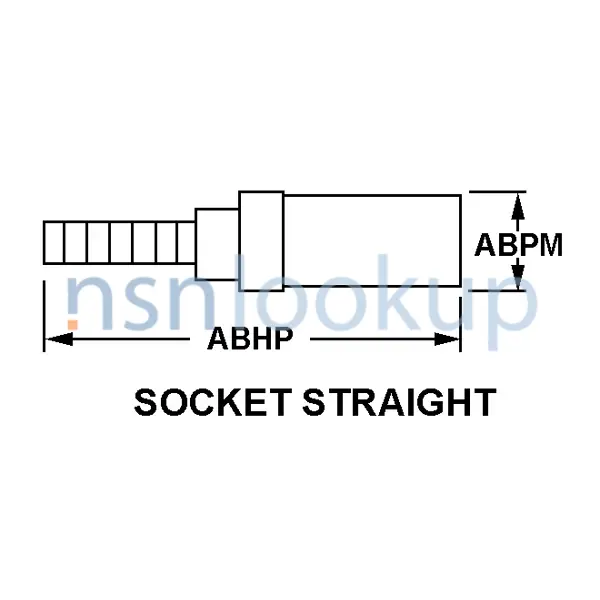

- Style Designator [STYL]
- Socket Straight
- Surface Treatment [SFTT]
- Cadmium
- Thread Class [AAJD]
- 2A
- Thread Direction [AAJF]
- Right-Hand
- Thread Quantity Per Inch [CMLP]
- 40
- Thread Series Designator [THSD]
- Unc
DLA Procurement Analysis 5935-00-020-9008
