5930-01-533-0112
Interlock Switch
5930015330112 015330112 440K-E33031
An item which completes or interrupts the connections in one or more electrical circuits. Its electrical elements consist of separate parts designed to be mounted respectively on a frame and a door, drawer, or cover, It acts as a safety device to open a circuit when the door or drawer is opened or the cover removed. It does not include devices of which a complete switch with an actuator is one of the parts; for such devices, use SWITCH (as modified). Excludes SWITCH, MERCURY; and SWITCH, REED. View more Interlock Switch
January 2023
1
Marketplace 5930-01-533-0112
Request a Quotation from participating marketplace vendors
Related Documents 5930-01-533-0112 2+ Documents (More...)
RQST NE Updated Every Day 5930-01-533-0112 RQST Updated Every Day 5930-01-533-0112 RQST NE Related Documents
5930-01-533-0112 2+ Documents ( More... ) https//www.nsnlookup.com /fsg-59/fsc-5930/us 5930-01-533-0112
Interlock Switch 5930015330112 015330112 for $1 a day Upgrade your Account Upgrade 5930-01-533-
0112Interlock Switch5930015330112 015330112 440K-E33031 https//www.nsnlookup.com /fsg-59/fsc-5930/us
Restrictions 5930-01-533-0112
5930-01-533-0112 is a Interlock Switch that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5930-01-533-0112
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5930-01-533-0112
- United Kingdom (ZK01)
- Effective Date:
- 1 Aug 2005
Approved Sources 5930-01-533-0112
- Part Number
- Manufacturer
- Status
- 440K-E33031
- Manufacturer
- 307W7 - Rockwell Automation Inc (Obsolete)
- Original Design
- Original Design
Datasheet 5930-01-533-0112
- Characteristic
- Specifications
- FIIG
- Specifications
- A053A0
- Maximum Voltage Rating In Volts [AFXE]
- 600.0 Ac
- Contact Load Current Rating At Maximum Rated Voltage [CXQR]
- 1.200 Amperes Resistive Ac

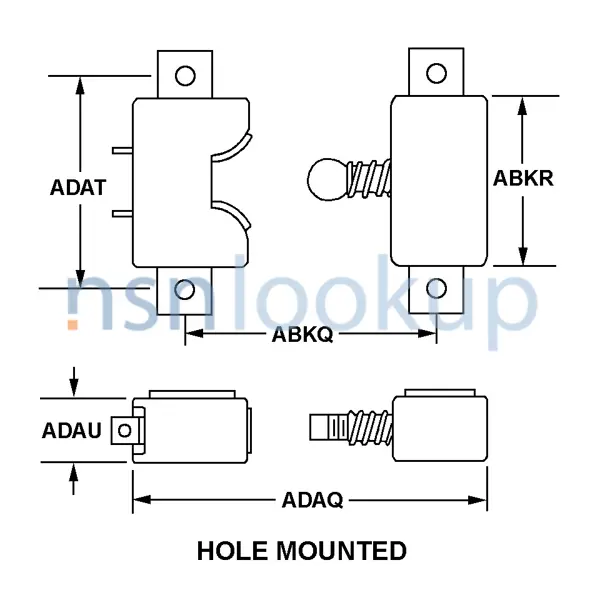

- Body Style [AAQL]
- Hole Mounted
- Center To Center Distance Between Mounting Facilities Parallel To Length [ABKQ]
- 36.0 Millimeters Nominal
- Center To Center Distance Between Mounting Facilities Parallel To Width [ABKR]
- 18.0 Millimeters Nominal
- Body Length [ADAQ]
- 75.0 Millimeters Nominal
- Body Width [ADAT]
- 29.0 Millimeters Nominal
- Body Height [ADAU]
- 25.0 Millimeters Nominal
- Overall Length [ABHP]
- 75.0 Millimeters Nominal
- Terminal Type And Quantity [TTQY]
- 4 Screw
- Mounting Method [AXGY]
- Terminal
- End Item Identification [AGAV]
- Destroyer, Type 45
Similar Supply Items to 5930-01-533-0112
Freight Information 5930-01-533-0112
5930-01-533-0112 has freight characteristics.. 5930-01-533-0112 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
