5930-01-481-3571
Push Switch
5930014813571 014813571 E34PB2-1X
A switch that is externally actuated by a device such as a push rod or button, which requires pushing for each actuation. The action may be momentary, with mechanical return. The actuating device may or may not be an integral part of the switch. The item may include provisions for mounting indicating lamp(s) or light emitting diode(s) in the actuator. Includes items consisting of individually separable switches that are physically interlocked, that have a common actuator, or are electrically connected. Excludes LIGHT-SWITCH; LIGHT-SWITCH ASSEMBLY; SWITCH, BEAM SELECTING, HEADLIGHT; SWITCH, FOOT; SWITCH, INTERLOCK; SWITCH, PRESSURE; SWITCH, PUSH-PULL; SWITCH, SENSITIVE and SWITCH ASSEMBLY. For devices which start, stop, reverse, select and/or regulate the speed of a motor, see STARTER, MOTOR and CONTROLLER, MOTOR. View more Push Switch
May 2023
1
Marketplace 5930-01-481-3571
Request a Quotation from participating marketplace vendors
Related Documents 5930-01-481-3571 3+ Documents (More...)
Updated Every Day 5930-01-481-3571 RQST NE Related Documents 5930-01-481-3571 3+ Documents ( More...
NE FedMall Updated Every Day 5930-01-481-3571 RQST NE Updated Every Day 5930-01-481-3571 RQST Updated
Push Switch 5930014813571 014813571 Documents 5930-01-481-3571 3+ Documents ( More... https https
Push Switch 5930014813571 014813571 Upgrade for $1 a day Upgrade your Account Upgrade 5930-01-481
-3571Push Switch5930014813571 014813571 E34PB2 Updated Every Day 5930-01-481-3571 RQST Updated Every
Restrictions 5930-01-481-3571
5930-01-481-3571 is a Push Switch that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5930-01-481-3571
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5930-01-481-3571
- US Navy (N9BN)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- HD
Approved Sources 5930-01-481-3571
- Part Number
- Manufacturer
- Status
- E34PB2-1X
- Manufacturer
- 81118 - Eaton Corporation (Active)
- Primary Buy
- Primary Buy
Datasheet 5930-01-481-3571
- Characteristic
- Specifications
- FIIG
- Specifications
- A053A0
- Nonpile-Up Contact Arrangement [CRLD]
- 1 Pole, Double Throw, One Position Momentary Single Switch Unit

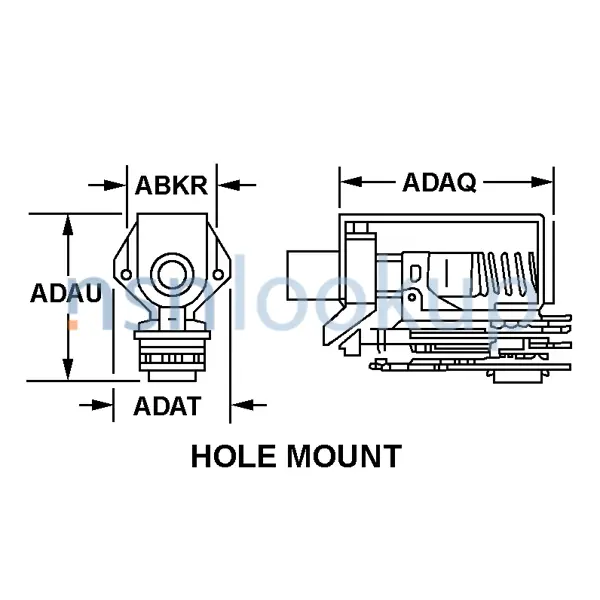

- Body Style [AAQL]
- Hole Mount
- Center To Center Distance Between Mounting Facilities Parallel To Width [ABKR]
- 1.780 Inches Nominal
- Body Length [ADAQ]
- 1.090 Inches Nominal
- Body Height [ADAU]
- 2.150 Inches Nominal
- Inclosure Type [AKNA]
- Fully Inclosed
- Hazardous Locations/Environmental Protection [ABFE]
- Corrosion Resistant
- Mounting Method [AXGY]
- Flush
- Special Features [FEAT]
- Flush Push Button Red, Non-Illuminated Momentary Contact.Used On A Starter Motor
DLA Procurement Analysis 5930-01-481-3571
Management Data 5930-01-481-3571
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 5930-01-481-3571
Freight Information 5930-01-481-3571
5930-01-481-3571 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061300. A Sub NMFC of X. It has a NMFC Description of CIRCUIT BREAKER/SWITCH NOI. 5930-01-481-3571 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34410 which rates the freight between FCL and LCL. 5930-01-481-3571 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5930-01-481-3571 is not classified as a special type of cargo when transported by water. 5930-01-481-3571 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5930-01-481-3571
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- --
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- See Method of Preservation
- --
Contracting Technical Data File (CTDF) 5930-01-481-3571 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
