5930-01-481-3569
Pull Switch
5930014813569 014813569 RMS-1T-WP MSI-10B
A switch which is actuated by a device, such as a pull rod or a chain which requires pulling for each action. Excludes LIGHT-SWITCH ASSEMBLY and SWITCH, SENSITIVE. View more Pull Switch
November 2023
2
Marketplace 5930-01-481-3569
Request a Quotation from participating marketplace vendors
Related Documents 5930-01-481-3569 1+ Documents (More...)
United States (US) 4. 5930-01-481-3569 Marketplace Restrictions Approved Sources Datasheet Management
BUY NE FedMall Updated Every Day 5930-01-481-3569 RQST NE Updated Every Day 5930-01-481-3569 RQST
Restrictions 5930-01-481-3569
5930-01-481-3569 is a Pull Switch that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5930-01-481-3569
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5930-01-481-3569
- US Navy (N9BN)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- HD
Approved Sources 5930-01-481-3569
- Part Number
- Manufacturer
- Status
- MSI-10B
- Manufacturer
- 0A0E0 - Cerberus Pyrotronics Inc (Active)
- Primary Buy
- Primary Buy
- RMS-1T-WP
- 0A0E0 - Cerberus Pyrotronics Inc (Active)
- Advisory Reference
- Advisory Reference
Datasheet 5930-01-481-3569
- Characteristic
- Specifications
- FIIG
- Specifications
- A053A0

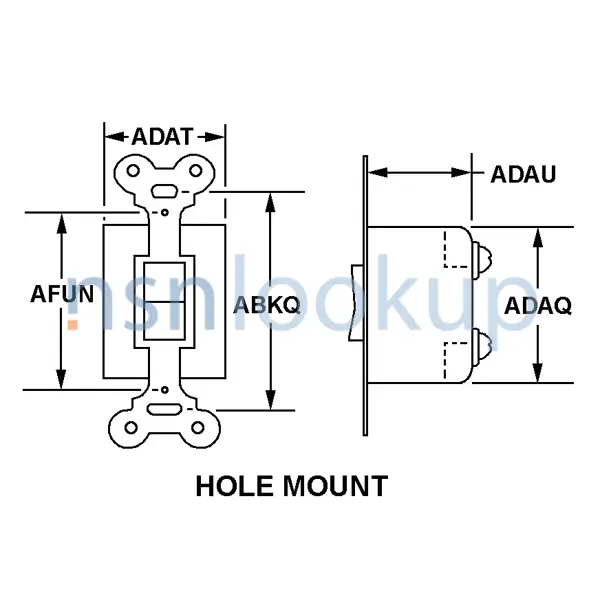

- Body Style [AAQL]
- Hole Mount
- Body Length [ADAQ]
- 3.000 Inches Nominal
- Body Width [ADAT]
- 1.875 Inches Nominal
- Body Height [ADAU]
- 3.500 Inches Nominal
- Inclosure Type [AKNA]
- Fully Inclosed
- Mounting Method [AXGY]
- Screw
- Special Features [FEAT]
- Adjustable Manual Fire Alarm Box; Single Action; Reset With Allen Key; Two Wire Operation; Color-Matte Red Finish With Raised White Lettering
- End Item Identification [AGAV]
- Fire Detection
DLA Procurement Analysis 5930-01-481-3569
- Last Stock Position:
- 25 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5930-01-481-3569
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 5930-01-481-3569
Freight Information 5930-01-481-3569
5930-01-481-3569 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061300. A Sub NMFC of X. It has a NMFC Description of CIRCUIT BREAKER/SWITCH NOI. 5930-01-481-3569 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34410 which rates the freight between FCL and LCL. 5930-01-481-3569 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5930-01-481-3569 is not classified as a special type of cargo when transported by water. 5930-01-481-3569 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5930-01-481-3569
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- --
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- See Method of Preservation
- --
Procurement History 5930-01-481-3569 1 Records
Contracting Technical Data File (CTDF) 5930-01-481-3569 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
