5930-01-353-0423
Push-Pull Switch
5930013530423 013530423 7109P3YWQE
A switch which is actuated in one direction by pushing and in the opposite direction by pulling. Excludes LIGHT-SWITCH ASSEMBLY. View more Push-Pull Switch
January 2023
9
Marketplace 5930-01-353-0423
Request a Quotation from participating marketplace vendors
Related Documents 5930-01-353-0423 1+ Documents (More...)
5930-01-353-0423 1+ Documents ( More... ) https//www.nsnlookup.com /fsg-59/fsc-5930/us 5930-01-353-0423
/fsg-59/fsc-5930/us 5930-01-353-0423 /fsg-59/fsc-5930/us 5930-01-353-0423 RQST NE Updated Every Day
Restrictions 5930-01-353-0423
5930-01-353-0423 is a Push-Pull Switch that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5930-01-353-0423
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5930-01-353-0423
- United Kingdom (ZK01)
- Effective Date:
- 1 Mar 1997
- Greece (ZU01)
- Effective Date:
- 1 May 2008
Approved Sources 5930-01-353-0423
- Part Number
- Manufacturer
- Status
- 7109P3YWQE
- Manufacturer
- 63HW9 - C & K Components, Llc (Active)
- Primary Buy
- Primary Buy
- 7109P3YWQE
- 09353 - C And K Components Inc (Replaced)
- Original Design
- Original Design
Datasheet 5930-01-353-0423
- Characteristic
- Specifications
- FIIG
- Specifications
- A053A0
- Nonpile-Up Contact Arrangement [CRLD]
- 1 Pole, Double Throw, One Position Momentary Single Switch Unit
- Maximum Voltage Rating In Volts [AFXE]
- 120.0 Ac
- Contact Load Current Rating At Maximum Rated Voltage [CXQR]
- 5.000 Amperes Inductive Ac

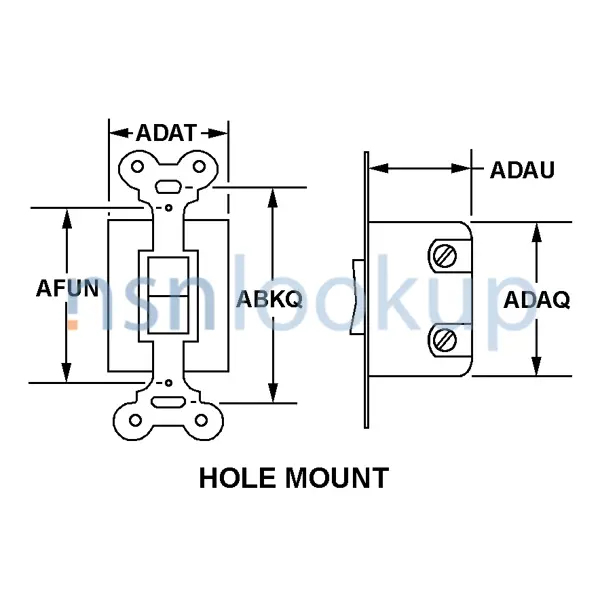

- Body Style [AAQL]
- Hole Mount
- Center To Center Distance Between Mounting Facilities Parallel To Length [ABKQ]
- 1.156 Inches Nominal
- Body Height [ADAU]
- 0.370 Inches Nominal
- Actuator Style [AFUQ]
- Pivoted
- Actuator Color [AFVA]
- Black Single Actuator
- Terminal Type And Quantity [TTQY]
- 3 Tab, Solder Lug
- Mounting Method [AXGY]
- Bracket
- Special Features [FEAT]
- Actuator Matl Nylon
Similar Supply Items to 5930-01-353-0423
Freight Information 5930-01-353-0423
5930-01-353-0423 has freight characteristics managed by the United Kingdom (UK).. 5930-01-353-0423 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
