5930-01-346-5647
Slide Switch
5930013465647 013465647 24-D-0075 5930-002-001SNSSFE
A switch designed to be actuated by the sliding of a button, bar, or knob. View more Slide Switch
January 2023
7
Marketplace 5930-01-346-5647
Request a Quotation from participating marketplace vendors
Related Documents 5930-01-346-5647 2+ Documents (More...)
RQST NE Updated Every Day 5930-01-346-5647 RQST Updated Every Day 5930-01-346-5647 RQST NE Related Documents
5930-01-346-5647 2+ Documents ( More... ) https//www.nsnlookup.com /fsg-59/fsc-5930/us 5930-01-346-5647
Slide Switch 5930013465647 013465647 www.nsnlookup.com /fsg-59/fsc-5930/us 5930-01-346-5647 https
Restrictions 5930-01-346-5647
5930-01-346-5647 is a Slide Switch that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5930-01-346-5647
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5930-01-346-5647
- Taiwan, Province of China (YE01)
- Effective Date:
- 1 Feb 2015
Approved Sources 5930-01-346-5647
- Part Number
- Manufacturer
- Status
- 24-D-0075
- Manufacturer
- 07126 - Electro Switch Corp. (Active)
- Primary Buy
- Primary Buy
- 5930-002-001SNSSFE
- S7549 - Aidc/Aerospace Industrial (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5930-01-346-5647
- Characteristic
- Specifications
- FIIG
- Specifications
- A053A0
- Actuator Height [AFUS]
- 8.130 Inches Nominal
- Actuator Length [AFGK]
- 29.340 Inches Nominal
- Actuator Position-Action Relationship [AFUX]
- Up Position Maintained And Down Position Maintained

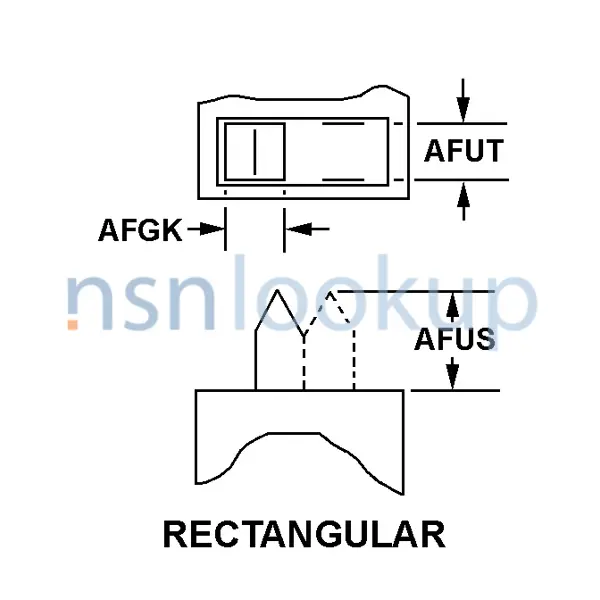

- Actuator Style [AFUQ]
- Rectangular
- Actuator Width [AFUT]
- 9.400 Inches Nominal
- Body Height [ADAU]
- 26.670 Inches Nominal
- Body Length [ADAQ]
- 40.890 Inches Nominal
- Body Style [AAQL]
- Printed Circuit
- Body Width [ADAT]
- 35.180 Inches Nominal
- Contact Load Current Rating At Maximum Rated Voltage [CXQR]
- 125.000 Milliamperes Resistive Dc
- Maximum Voltage Rating In Volts [AFXE]
- 28.0 Dc And 28.0 Ac
- Mounting Method [AXGY]
- Screw
- Terminal Type And Quantity [TTQY]
- 5 Pin
NATO Stock Numbers Related to 5930-01-346-5647
Freight Information 5930-01-346-5647
5930-01-346-5647 has freight characteristics managed by the Department of Energy (DOE).. 5930-01-346-5647 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
