5930-01-261-2237
Sensitive Switch
5930012612237 012612237 675-12199-503 82918 675-12199-503 R6-10004 R6-10006
A switch with a quick-acting mechanism actuated by a highly delicate tactile contact. Includes membrane switch. Excludes SWITCH, FLEXIBLE; SWITCH, PRESSURE; and SWITCH, THERMOSTATIC. View more Sensitive Switch
Managed by United States
NSN Created on 11 Aug 1987
Data Last Changed
May 2023
May 2023
NATO Update Count
3
3
NATO Data Quality
Marketplace 5930-01-261-2237
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 5930-01-261-2237 5+ Documents (More...)
675-12199-503 82918 675-12199-503 R6-10006 R6-10004 A switch with a quick-acting mechanism actuated
BUY NE FedMall Updated Every Day 5930-01-261-2237 RQST NE Updated Every Day 5930-01-261-2237 RQST
Updated Every Day 5930-01-261-2237 RQST NE Related Documents 5930-01-261-2237 5+ Documents ( More...
BUY NE FedMall Updated Every Day 5930-01-261-2237 RQST NE Updated Every Day 5930-01-261-2237 RQST
Updated Every Day 5930-01-261-2237 RQST NE Related Documents 5930-01-261-2237 5+ Documents ( More...
Lacquer 8010131136162131136162 JavaScript in your https//www.nsnlookup.com /fsg-59/fsc-5930/us 5930-01-261-2237
Sensitive Switch 5930012612237 012612237 $1 a day Upgrade your Account Upgrade 5930-01-261-2237Sensitive
Switch5930012612237 012612237 675-12199 -503 82918 675-12199-503 R6-10006 R6-10004 A switch with a quick-acting
Sensitive Switch 5930012612237 012612237 $1 a day Upgrade your Account Upgrade 5930-01-261-2237Sensitive
Switch5930012612237 012612237 675-12199 -503 82918 675-12199-503 R6-10006 R6-10004 A switch with a quick-acting
-514-21 12199-514-11 12199-514-1 An electrical https//www.nsnlookup.com /fsg-59/fsc-5930/us 5930-01-261-2237
Sensitive Switch 5930012612237 012612237 $1 a day Upgrade your Account Upgrade 5930-01-261-2237Sensitive
Switch5930012612237 012612237 675-12199 -503 82918 675-12199-503 R6-10006 R6-10004 A switch with a quick-acting
Sensitive Switch 5930012612237 012612237 $1 a day Upgrade your Account Upgrade 5930-01-261-2237Sensitive
Switch5930012612237 012612237 675-12199 -503 82918 675-12199-503 R6-10006 R6-10004 A switch with a quick-acting
Transformer 5950003080948 which -514-21 12199-514 https//www.nsnlookup.com /fsg-59/fsc-5930/us 5930-01-261-2237
Sensitive Switch 5930012612237 012612237 $1 a day Upgrade your Account Upgrade 5930-01-261-2237Sensitive
Switch5930012612237 012612237 675-12199 -503 82918 675-12199-503 R6-10006 R6-10004 A switch with a quick-acting
Sensitive Switch 5930012612237 012612237 $1 a day Upgrade your Account Upgrade 5930-01-261-2237Sensitive
Switch5930012612237 012612237 675-12199 -503 82918 675-12199-503 R6-10006 R6-10004 A switch with a quick-acting
-514-21 12199-514-11 12199-514-1 An electrical https//www.nsnlookup.com /fsg-59/fsc-5930/us 5930-01-261-2237
Sensitive Switch 5930012612237 012612237 $1 a day Upgrade your Account Upgrade 5930-01-261-2237Sensitive
Switch5930012612237 012612237 675-12199 -503 82918 675-12199-503 R6-10006 R6-10004 A switch with a quick-acting
Sensitive Switch 5930012612237 012612237 $1 a day Upgrade your Account Upgrade 5930-01-261-2237Sensitive
Switch5930012612237 012612237 675-12199 -503 82918 675-12199-503 R6-10006 R6-10004 A switch with a quick-acting
Restrictions 5930-01-261-2237
5930-01-261-2237 is a Sensitive Switch that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5930-01-261-2237
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5930-01-261-2237
- US Air Force (FXGX)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- FXTX
Approved Sources 5930-01-261-2237
- Part Number
- Manufacturer
- Status
- 675-12199-503 82918
- Manufacturer
- 82918 - The Boeing Company (Active)
- Source Control
- Source Control
- 675-12199-503
- 82918 - The Boeing Company (Active)
- Primary Buy
- Primary Buy
- 675-12199-503
- 21649 - Otto Engineering Inc (Active)
- Secondary Buy
- Secondary Buy
- R6-10004
- 21649 - Otto Engineering Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- R6-10006
- 21649 - Otto Engineering Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5930-01-261-2237
- Characteristic
- Specifications
- FIIG
- Specifications
- A053A0
- Actuator Height [AFUS]
- 1.250 Inches Maximum
- Actuator Movement [CXQQ]
- 13.0 Pretravel Degrees Nominal And 32.0 Overtravel Degrees Nominal And 3.0 Differential Degrees Maximum
- Actuator Length [AFGK]
- 1.500 Inches Nominal
- Actuator Roller Diameter [AFUV]
- 0.750 Inches Nominal
- Actuator Roller Width [AFUW]
- 0.310 Inches Nominal
- Actuator Style [AFUQ]
- Roller Arm

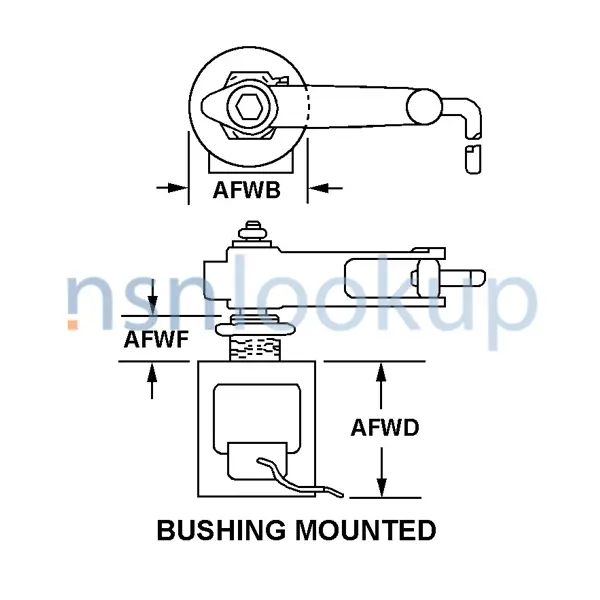

- Body Style [AAQL]
- Bushing Mounted
- Contact Load Current Rating At Maximum Rated Voltage [CXQR]
- 4.000 Amperes Resistive Dc And 2.000 Amperes Inductive Dc And 4.000 Amperes Motor Dc
- Housing Bushing Length [AFWF]
- 0.340 Inches Nominal
- Housing Diameter [AFWB]
- 1.000 Inches Maximum
- Housing Length [AFWD]
- 2.000 Inches Maximum
- Maximum Voltage Rating In Volts [AFXE]
- 28.0 Dc
- Mounting Method [AXGY]
- Threaded Bushing
- Nominal Thread Size [CQJX]
- 0.469 Inches
- Nonpile-Up Contact Arrangement [CRLD]
- 1 Pole, Single Throw, Normally Open, Momentary Action Single Switch Unit
- Inclosure Type [AKNA]
- Fully Inclosed
- Overall Length [ABHP]
- 3.250 Inches Maximum
- Thread Series Designator [THSD]
- Uns
- Switch Release Force [CRRM]
- 108.0 Inch-Ounces Minimum
- Switch Actuating Force [CSJN]
- 192.0 Inch-Ounces Minimum And 300.0 Inch-Ounces Maximum
- Terminal Type And Quantity [TTQY]
- 1 Connector, Receptacle
- Thread Quantity Per Inch [CMLP]
- 32
