5930-01-255-6163
Sensitive Switch
5930012556163 012556163 700327-K1
A switch with a quick-acting mechanism actuated by a highly delicate tactile contact. Includes membrane switch. Excludes SWITCH, FLEXIBLE; SWITCH, PRESSURE; and SWITCH, THERMOSTATIC. View more Sensitive Switch
May 2023
2
Marketplace 5930-01-255-6163
Request a Quotation from participating marketplace vendors
Related Documents 5930-01-255-6163 5+ Documents (More...)
5930-01-255-6163 5+ Documents ( More... ) https//www.nsnlookup.com /fsg-59/fsc-5930/us 5930-01-255-6163
/3 NSN 5930-01-255-6163 (Identification /3 NSN 5930-01-255-6163 (Identification RQST NE Updated Every
700327 https//www.nsnlookup.com /fsg-59/fsc-5930/us 5930-01-255-6163 Sensitive Switch 5930012556163
012556163 for $1 a day Upgrade your Account Upgrade 5930-01-255-6163Sensitive Switch5930012556163 012556163
0158Sensitive Switch5930012340158 012340158700327 https//www.nsnlookup.com /fsg-59/fsc-5930/us 5930-01-255-6163
Sensitive Switch 5930012556163 012556163 for $1 a day Upgrade your Account Upgrade 5930-01-255-
700327 -K1 Sensitive Switch 5930014846567014846567 for $1 a day Upgrade your Account Upgrade 5930-01
700327 https//www.nsnlookup.com /fsg-59/fsc-5930/us 5930-01-255-6163 Sensitive Switch 5930012556163
Sensitive Switch 5930012556163 012556163 for $1 a day Upgrade your Account Upgrade 5930-01-255-
6163Sensitive Switch5930012556163 012556163 700327 -K1 700327 -K1 Sensitive Switch 5930014846567014846567
Restrictions 5930-01-255-6163
5930-01-255-6163 is a Sensitive Switch that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5930-01-255-6163
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5930-01-255-6163
- National Security Agency (DGX1)
- Effective Date:
- 1 May 2010
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5930-01-255-6163
- Part Number
- Manufacturer
- Status
- 700327-K1
- Manufacturer
- 30086 - L3harris Maritime Power & Energy (Active)
- Primary Buy
- Primary Buy
- 700327-K1
- 04597 - Projects Unlimited Inc (Active)
- Secondary Buy
- Secondary Buy
Datasheet 5930-01-255-6163
- Characteristic
- Specifications
- FIIG
- Specifications
- A053A0
- Actuator Free Position Height [AFUU]
- 1.129 Inches Nominal
- Actuator Height [AFUS]
- 0.075 Inches Nominal

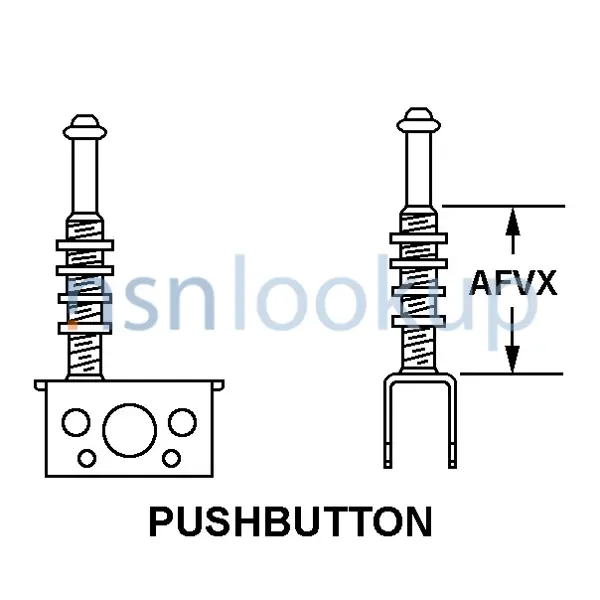

- Actuator Adapter Style [AFVV]
- Pushbutton
- Actuator Diameter [AFUR]
- 0.094 Inches Nominal
- Actuator Style [AFUQ]
- Round
- Adapter Bushing Length [AFVX]
- 0.688 Inches Nominal
- Body Height [ADAU]
- 1.050 Inches Nominal
- Body Length [ADAQ]
- 1.940 Inches Nominal
- Body Style [AAQL]
- Hole Mounted
- Body Width [ADAT]
- 0.687 Inches Nominal
- Center To Center Distance Between Mounting Facilities Parallel To Length [ABKQ]
- 1.000 Inches Nominal
- Contact Load Current Rating At Maximum Rated Voltage [CXQR]
- 15.000 Amperes Resistive Dc And 15.000 Amperes Resistive Ac
- Maximum Voltage Rating In Volts [AFXE]
- 250.0 Ac And 30.0 Dc
- Mounting Method [AXGY]
- Threaded Bushing
- Nominal Thread Size [CQJX]
- 0.469 Inches
- Nonpile-Up Contact Arrangement [CRLD]
- 1 Pole, Double Throw, One Position Momentary Single Switch Unit
- Inclosure Type [AKNA]
- Uninclosed
- Overall Length [ABHP]
- 2.062 Inches Nominal
- Thread Series Designator [THSD]
- Uns
- Unthreaded Mounting Hole Diameter [AEBV]
- 0.140 Inches Nominal
- Terminal Type And Quantity [TTQY]
- 3 Screw
- Thread Class [AAJD]
- 2A
- Thread Quantity Per Inch [CMLP]
- 32
DLA Procurement Analysis 5930-01-255-6163
Management Data 5930-01-255-6163
Similar Supply Items to 5930-01-255-6163
Freight Information 5930-01-255-6163
5930-01-255-6163 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061300. A Sub NMFC of X. It has a NMFC Description of CIRCUIT BREAKER/SWITCH NOI. 5930-01-255-6163 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34410 which rates the freight between FCL and LCL. 5930-01-255-6163 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5930-01-255-6163 is not classified as a special type of cargo when transported by water. 5930-01-255-6163 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5930-01-255-6163
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- --
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- See Method of Preservation
- --
Contracting Technical Data File (CTDF) 5930-01-255-6163 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
