5930-01-250-2636
Pressure Switch
5930012502636 012502636 2F1458-1 10135375
A switch which is actuated by changes in pressure of any gas or liquid or by changes in a vacuum acting upon its sensing element. Excludes BAROSWITCH; SWITCH, PRESSURE-THERMOSTATIC; and SWITCH, SENSITIVE. View more Pressure Switch
November 2023
8
Product Information 5930-01-250-2636

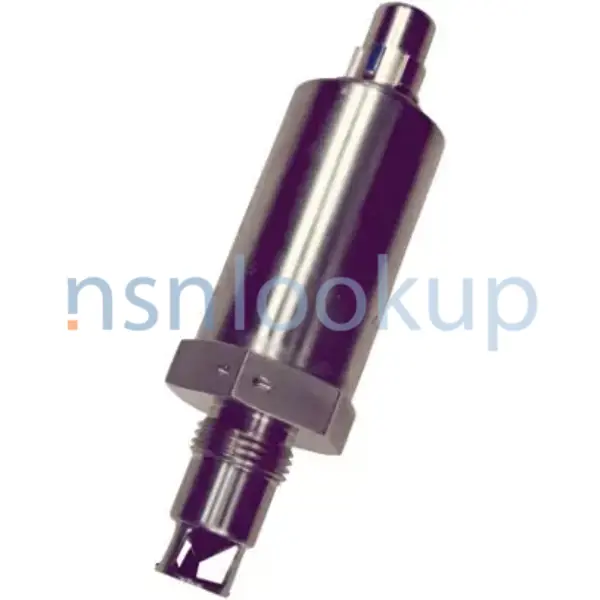

Electro/Optical Level Sensor
Used on Boeing F/A-18E/F “Super Hornet” Strike Fighter
Eaton's electro/optical level sensor detects the presence of fuel in the aircraft’s tank vent tube to avoid overfill.
Marketplace 5930-01-250-2636
Request a Quotation from participating marketplace vendors
Related Documents 5930-01-250-2636 2+ Documents (More...)
Photo 1/2 NSN 5930-01-250-2636 (Identification) 2/2 - - 1.
Marketplace 5930-01-250-2636 Need Help?
-101 10135375 A grouping of two or more physically connected or related electrical an/or electronic parts
Pressure Switch 5930012502636 012502636 day Upgrade your Account Upgrade 5930-01-250-2636Pressure
Restrictions 5930-01-250-2636
5930-01-250-2636 is a Pressure Switch that is an aviation critical safety item or flight safety critical aircraft part. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5930-01-250-2636
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5930-01-250-2636
- US Navy (N9BN)
- Effective Date:
- 1 Aug 2006
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- GTKE
- Finland (WF01)
- Effective Date:
- 1 Apr 2011
- Australia (ZA01)
- Effective Date:
- 1 Aug 2008
Approved Sources 5930-01-250-2636
- Part Number
- Manufacturer
- Status
- 2F1458-1
- Manufacturer
- 97484 - Eaton Aerospace Llc (Active)
- Primary Buy
- Primary Buy
- 2F1458-1
- 0PXV4 - The Boeing Company (Active)
- Secondary Buy
- Secondary Buy
- 2F1458-1
- 76301 - The Boeing Company (Active)
- Secondary Buy
- Secondary Buy
- 10135375
- A486G - Nimikkeistokeskus Ncb Finland (Active)
- NATO Reference
- NATO Reference
Datasheet 5930-01-250-2636
- Characteristic
- Specifications
- FIIG
- Specifications
- A048B0
- Style Designator [STYL]
- Cylindrical
- Overall Length [ABHP]
- 4.190 Inches Nominal
- Width Across Flats [ASDB]
- 1.250 Inches Nominal
- Body Length [ADAQ]
- 2.160 Inches Nominal
- Overall Diameter [ADAV]
- 1.250 Inches Nominal
- Pressure Switch Type [AJZC]
- Differential
- Nonpile-Up Contact Arrangement [CRLD]
- 1 Pole, Single Throw, Both Positions Maintained
- Contact Action Stimulus [CQGB]
- Decrease
- Contact Adjustability [CTYC]
- Actuation Point Not Adjustable
- Contact Voltage Rating In Volts [CTZB]
- 28.0 Dc At Sea Level Single Voltage
- Contact Load Current Rating [CTHF]
- 100.0 Milliamperes Resistive Load Single Voltage
- Media For Which Designed [MEDA]
- Gas
- Terminal Type [CSCF]
- Wire Lead
- Mounting Method [AXGY]
- Input Port
- Hazardous Locations/Environmental Protection [ABFE]
- Explosion Proof
Weapon Systems (WSDC) 5930-01-250-2636
DLA Procurement Analysis 5930-01-250-2636
- Last Stock Position:
- 98 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5930-01-250-2636
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5930-01-250-2636
Freight Information 5930-01-250-2636
5930-01-250-2636 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061300. A Sub NMFC of X. It has a NMFC Description of CIRCUIT BREAKER/SWITCH NOI. 5930-01-250-2636 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34410 which rates the freight between FCL and LCL. 5930-01-250-2636 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5930-01-250-2636 is not classified as a special type of cargo when transported by water. 5930-01-250-2636 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5930-01-250-2636
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- --
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- Special requirements
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- See Method of Preservation
- --
Procurement History 5930-01-250-2636 11 Records
- Contract
- Date
- CAGE
- Quantity
- Net Price
- Std Price
- CAGE
- SPE4AX13D94100107
- 14 Sep 2017
- Subscribe
- 75
- Subscribe
- Subscribe
- Subscribe
- SPE4AX13D94100099
- 08 Aug 2017
- Subscribe
- 21
- Subscribe
- Subscribe
- Subscribe
- SPE4AX13D9410008201
- 30 Jun 2017
- Subscribe
- 84
- Subscribe
- Subscribe
- Subscribe
- SPE4A516M8592
- 24 Aug 2016
- Subscribe
- 18
- Subscribe
- Subscribe
- Subscribe
- SPE4A516M6114
- 01 Jul 2016
- Subscribe
- 1
- Subscribe
- Subscribe
- Subscribe
- SPE4A516M3157P00001
- 08 Feb 2016
- Subscribe
- 31
- Subscribe
- Subscribe
- Subscribe
- SPM4A111G000700N3
- 27 Oct 2015
- Subscribe
- 70
- Subscribe
- Subscribe
- Subscribe
- SPM4A111G000700N2
- 02 Oct 2015
- Subscribe
- 5
- Subscribe
- Subscribe
- Subscribe
- SPE7M814M0407P00002
- 31 Oct 2013
- Subscribe
- 4
- Subscribe
- Subscribe
- Subscribe
- SPM7M813M4254P00001
- 21 May 2013
- Subscribe
- 20
- Subscribe
- Subscribe
- Subscribe
- SPM7M813M3944
- 07 May 2013
- Subscribe
- 25
- Subscribe
- Subscribe
- Subscribe
Contracting Technical Data File (CTDF) 5930-01-250-2636 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
