5930-01-224-0320
Sensitive Switch
5930012240320 012240320 2000-13B
A switch with a quick-acting mechanism actuated by a highly delicate tactile contact. Includes membrane switch. Excludes SWITCH, FLEXIBLE; SWITCH, PRESSURE; and SWITCH, THERMOSTATIC. View more Sensitive Switch
May 2023
4
Marketplace 5930-01-224-0320
Request a Quotation from participating marketplace vendors
Related Documents 5930-01-224-0320 1+ Documents (More...)
BUY NE FedMall Updated Every Day 5930-01-224-0320 RQST NE Updated Every Day 5930-01-224-0320 RQST
Updated Every Day 5930-01-224-0320 RQST NE Related Documents 5930-01-224-0320 1+ Documents ( More...
Restrictions 5930-01-224-0320
5930-01-224-0320 is a Sensitive Switch that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5930-01-224-0320
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5930-01-224-0320
- US Navy (N9BN)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- HD
Approved Sources 5930-01-224-0320
- Part Number
- Manufacturer
- Status
- 2000-13B
- Manufacturer
- 16016 - Patriot Sensors & Controls Corp (Active)
- Primary Buy
- Primary Buy
Datasheet 5930-01-224-0320
- Characteristic
- Specifications
- FIIG
- Specifications
- A053A0
- Actuator Height [AFUS]
- 1.500 Inches Nominal
- Actuator Diameter [AFUR]
- 0.500 Inches Nominal
- Actuator Style [AFUQ]
- Round

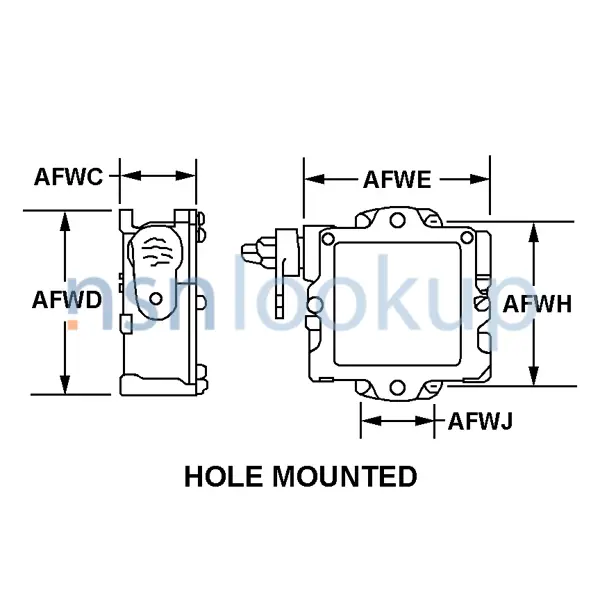

- Body Style [AAQL]
- Hole Mounted
- Case Material [ADTV]
- Metal
- Center To Center Distance Between Housing Mounting Facilities Parallel To Length [AFWH]
- 3.875 Inches Nominal
- Center To Center Distance Between Housing Mounting Facilities Parallel To Width [AFWJ]
- 5.375 Inches Nominal
- Contact Load Current Rating At Maximum Rated Voltage [CXQR]
- 250.000 Milliamperes Resistive Dc And 15.000 Amperes Resistive Ac
- Hazardous Locations/Environmental Protection [ABFE]
- Watertight
- Housing Height [AFWC]
- 2.969 Inches Nominal
- Housing Length [AFWD]
- 4.500 Inches Nominal
- Housing Width [AFWE]
- 6.000 Inches Nominal
- Maximum Voltage Rating In Volts [AFXE]
- 460.0 Ac And 250.0 Dc
- Mounting Method [AXGY]
- Unthreaded Hole
- Nonpile-Up Contact Arrangement [CRLD]
- 1 Pole, Double Throw, Both Positions Maintained Single Switch Unit
- Inclosure Type [AKNA]
- Fully Inclosed
- Overall Height [ABKW]
- 4.500 Inches Nominal
- Overall Length [ABHP]
- 7.500 Inches Nominal
- Overall Width [ABMK]
- 2.969 Inches Nominal
- Terminal Type And Quantity [TTQY]
- 3 Tab W/Screw
