5930-01-212-0887
Box Switch
5930012120887 012120887 H223DS-100AMP H223DS W/H100SN H223NDS
A switch designed with its actuator extending from the box which incloses the circuit elements. The door or cover of the box is designed so that it may be readily opened or removed, thus providing relatively easy access to the circuit elements. The item is commonly designated as a safety switch or entrance switch. May be fusible and may have interlocking device. View more Box Switch
May 2023
6
Marketplace 5930-01-212-0887
Request a Quotation from participating marketplace vendors
Related Documents 5930-01-212-0887 2+ Documents (More...)
(Identification) 1/2 NSN 5930-01-212-0887 (Identification) 2/2 - - 1.
BUY NE FedMall Updated Every Day 5930-01-212-0887 RQST NE Updated Every Day 5930-01-212-0887 RQST
Box Switch 5930012120887 012120887 Upgrade for $1 a day Upgrade your Account Upgrade 5930-01-212
-0887Box Switch5930012120887 012120887 H223DS -100AMP H223DS W/H100SN H223NDS A switch designed with
Restrictions 5930-01-212-0887
5930-01-212-0887 is a Box Switch that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5930-01-212-0887
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5930-01-212-0887
- US Navy (N9BN)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- HD
Approved Sources 5930-01-212-0887
- Part Number
- Manufacturer
- Status
- H223DS W/H100SN
- Manufacturer
- 56365 - Schneider Electric Usa, Inc. (Active)
- Primary Buy
- Primary Buy
- H223NDS
- 51918 - Schneider Electric Usa, Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- H223DS-100AMP
- 51918 - Schneider Electric Usa, Inc. (Active)
- Advisory Reference
- Advisory Reference
Datasheet 5930-01-212-0887
- Characteristic
- Specifications
- FIIG
- Specifications
- A053A0
- Actuator Style [AFUQ]
- Cast/Stamped
- Body Style [AAQL]

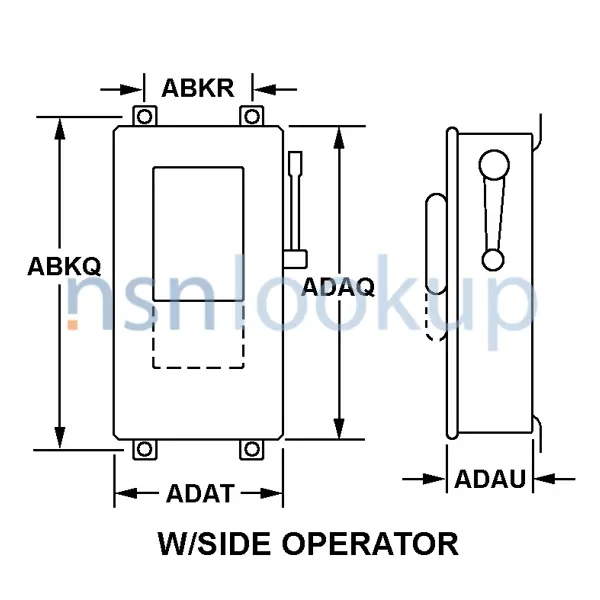

- With Side Operator
- Contact Load Current Rating At Maximum Rated Voltage [CXQR]
- 100.000 Amperes Resistive Ac
- Hazardous Locations/Environmental Protection [ABFE]
- Raintight And Watertight
- Maximum Voltage Rating In Volts [AFXE]
- 240.0 Ac
- Nonpile-Up Contact Arrangement [CRLD]
- 2 Pole, Double Throw, Both Positions Maintained Single Switch Unit
- Special Features [FEAT]
- Nema 4 And 5 Devices,Solid Neutral
DLA Procurement Analysis 5930-01-212-0887
Management Data 5930-01-212-0887
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5930-01-212-0887
Freight Information 5930-01-212-0887
5930-01-212-0887 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 063160. A Sub NMFC of Z. It has a NMFC Description of SWITCH BOXES/ELEC ENCLOSURES. 5930-01-212-0887 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 35205 which rates the freight between FCL and LCL. 5930-01-212-0887 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5930-01-212-0887 is not classified as a special type of cargo when transported by water. 5930-01-212-0887 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5930-01-212-0887
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- --
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- See Method of Preservation
- --
Contracting Technical Data File (CTDF) 5930-01-212-0887 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
