5930-01-208-7713

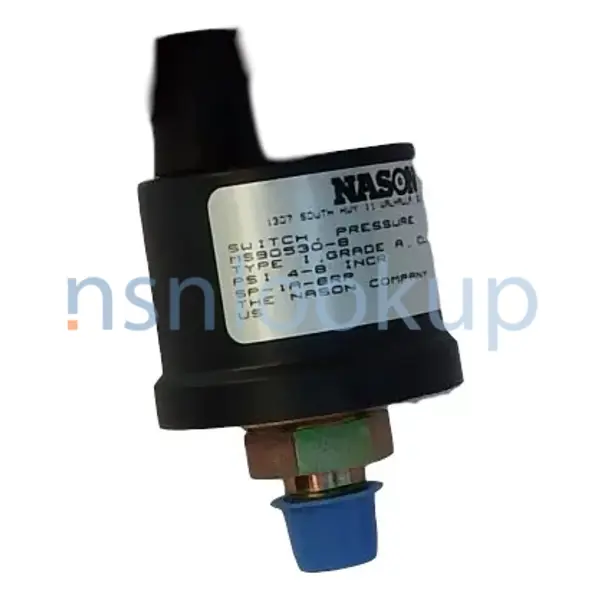

Pressure Switch
5930012087713 012087713 MIL-DTL-12211 MS90530-8 MIL-S-12211
A switch which is actuated by changes in pressure of any gas or liquid or by changes in a vacuum acting upon its sensing element. Excludes BAROSWITCH; SWITCH, PRESSURE-THERMOSTATIC; and SWITCH, SENSITIVE. View more Pressure Switch
Managed by United States
NSN Created on 19 May 1985
Data Last Changed
November 2023
November 2023
NATO Update Count
18
18
NATO Data Quality
Marketplace 5930-01-208-7713
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 5930-01-208-7713 5+ Documents (More...)
MIL-DTL-12211 MS90530-8 MIL-S-12211 A switch which is actuated by changes in pressure of any gas or
MS90530-8 SWITCH,PRESSURE 1 EA NS Request Quotation Subscribe to View Vendor Details... 5930-01-208-7713
5930-01-208-7713 RQST Updated Every Day 5930-01-208-7713 RQST NE Related Documents 5930-01-208-7713
MS90530-8 SWITCH,PRESSURE 1 EA NS Request Quotation Subscribe to View Vendor Details... 5930-01-208-7713
5930-01-208-7713 RQST Updated Every Day 5930-01-208-7713 RQST NE Related Documents 5930-01-208-7713
MS90530-7 MIL-S-12211 A switch which is actuated by changes in pressure of any gas or liquid or
Pressure Switch 5930012087713 012087713 MS90530-8 MIL-S-12211 A switch which is actuated by changes
8376925 1508143 MS90530-5 MIL-S-12211 A switch which is actuated by changes in pressure of any
Pressure Switch 5930012087713 012087713 MS90530-8 MIL-S-12211 A switch which is actuated by changes
8376925 1508143 MS90530-5 MIL-S-12211 A switch which is actuated by changes in pressure of any
for $1 a day Upgrade your Account Upgrade 5930-00-692-9256Pressure Switch5930006929256 006929256 MIL-DTL-12211
8376925 1508143 MS90530-5 MIL-S-12211 A switch which is actuated by changes in pressure of any
Pressure Switch 5930012087713 012087713 1508143MS90530-5MIL-S-12211 A -12211 A switch A switch
8376925 1508143 MS90530-5 MIL-S-12211 A switch which is actuated by changes in pressure of any
Pressure Switch 5930012087713 012087713 1508143MS90530-5MIL-S-12211 A -12211 A switch A switch
/1 1508209 8380688 M12211/1-1B17F MILS12211 MIL-DTL-12211 MS90530-3 M12211/1 A switch which is
Pressure Switch 5930012087713 012087713 for $1 a day Upgrade your Account Upgrade 5930-01-208-7713Pressure
Switch5930012087713 012087713 MIL-DTL-12211 for $1 a day Upgrade your Account Upgrade 5930-00-692-9256Pressure
Pressure Switch 5930012087713 012087713 for $1 a day Upgrade your Account Upgrade 5930-01-208-7713Pressure
Switch5930012087713 012087713 MIL-DTL-12211 for $1 a day Upgrade your Account Upgrade 5930-00-692-9256Pressure
for $1 a day Upgrade your Account Upgrade 5930-00-944-1660Pressure Switch5930009441660 009441660 MIL-DTL-12211
/1 M12211/1-1B6F 300831 MIL-S-12211 MS90530-1 MIL-DTL-12211 M12211/1-B6F 5930PL0898054 A switch
/www.nsnlookup.com /fsg-59/fsc-5930/us 5930-00-944-1660 Pressure Switch 5930009441660009441660 MIL-DTL-12211
/1 M12211/1-1B6F 300831 MIL-S-12211 MS90530-1 MIL-DTL-12211 M12211/1-B6F 5930PL0898054 A switch
/www.nsnlookup.com /fsg-59/fsc-5930/us 5930-00-944-1660 Pressure Switch 5930009441660009441660 MIL-DTL-12211
Restrictions 5930-01-208-7713
5930-01-208-7713 is a Pressure Switch that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5930-01-208-7713
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5930-01-208-7713
- US Army (A918)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- A196
- Supplementary Receivers:
- AZBF
- US Marine Corps (MC49)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- MC13
- US Navy (N9BN)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GG
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Spain (YB01)
- Effective Date:
- 1 Dec 1996
- Belgium (ZB01)
- Effective Date:
- 1 Jul 2002
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 2002
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Norway (ZT01)
- Effective Date:
- 1 Nov 2007
- Greece (ZU01)
- Effective Date:
- 1 Apr 2006
Approved Sources 5930-01-208-7713
- Part Number
- Manufacturer
- Status
- MS90530-8
- Manufacturer
- 96906 - Military Standards (Active)
- Definitive Standard
- Definitive Standard
- MIL-DTL-12211
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
- MIL-S-12211
- 81349 - Military Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 5930012087713
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
Datasheet 5930-01-208-7713
- Characteristic
- Specifications
- FIIG
- Specifications
- A048B0
- End Item Identification [AGAV]
- 2350-01-031-0586 Howitzer Medium
- Contact Action Stimulus [CQGB]
- Increase
- Contact Adjustability [CTYC]
- Actuation Point Not Adjustable
- Contact Stimulus Rating [CTYX]
- 4.00 Actuation Point Minimum Pounds Per Square Inch And 8.00 Actuation Point Maximum Pounds Per Square Inch
- Contact Voltage Rating In Volts [CTZB]
- 24.0 Dc At Sea Level Single Voltage
- Hazardous Locations/Environmental Protection [ABFE]
- Waterproof
- Media For Which Designed [MEDA]
- Gas Or Liquid
- Mounting Method [AXGY]
- Clamp
- Nominal Thread Size [CQJX]
- 0.250 Inches Single Pressure Connection
- Nonpile-Up Contact Arrangement [CRLD]
- 1 Pole, Single Throw, Normally Closed, Momentary Action
- Style Designator [STYL]
- Cylindrical
- Inside Diameter [AARX]
- 0.250 Inches Nominal Single Connection
- Pressure Connector Type [CTZL]
- Double Compression, Threaded Internal Single Connection
- Pressure Switch Type [AJZC]
- Gage
- Overall Diameter [ADAV]
- 2.230 Inches Maximum
- Overall Length [ABHP]
- 4.750 Inches Maximum
- Width Across Flats [ASDB]
- 0.880 Inches Nominal
- Specification/Standard Data [ZZZK]
- 96906-Ms90530 Government Standard
- Terminal Type [CSCF]
- Connector, Receptacle
- Test Data Document [TEST]
- 81349-Mil-S-12211 Specification (Includes Engineering Type Bulletins, Brochures,Etc., That Reflect Specification Type Data In Specification Format; Excludes Commercial Catalogs, Industry Directories, And Similar Trade Publications, Reflecting General Type Data On Certain Environmental And Performance Requirements And Test Conditions That Are Shown As "Typical", "Average", "Nominal", Etc.).
- Thread Series Designator [THSD]
- Nptf Single Pressure Connection
- Thread Quantity Per Inch [CMLP]
- 18 Single Pressure Connection
Weapon Systems (WSDC) 5930-01-208-7713
DLA Procurement Analysis 5930-01-208-7713
- Last Stock Position:
- 157 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5930-01-208-7713
Army
- Materiel Category and Inventory Manager:
- Q
- Electronics Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
Similar Supply Items to 5930-01-208-7713
Freight Information 5930-01-208-7713
5930-01-208-7713 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061300. A Sub NMFC of X. It has a NMFC Description of CIRCUIT BREAKER/SWITCH NOI. 5930-01-208-7713 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34410 which rates the freight between FCL and LCL. 5930-01-208-7713 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5930-01-208-7713 is not classified as a special type of cargo when transported by water. 5930-01-208-7713 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
