5930-01-168-7476
Dust And Moisture Seal Boot
5930011687476 011687476 B1532 B1532-0 7800-0081-001 9454263 1437626-7 B-1532 B-1532-0 B15320
A flexible, nonmetallic item designed to prevent entry of dust, moisture and other contaminants into critical areas around shafts, levers, electrical wires and hoses. Sealing may be either static or dynamic. The item may include mounting hardware (support plates, clamps and the like). Excludes BELLOWS, PROTECTION; GROMMET, NONMETALLIC; and CABLE NIPPLE, ELECTRICAL. See also CAP, ELECTRICAL; CAP, PROTECTIVE, DUST AND MOISTURE SEAL; and SHIELD, ELECTRICAL CONNECTOR. View more Dust And Moisture Seal Boot
November 2023
13
Marketplace 5930-01-168-7476
Request a Quotation from participating marketplace vendors
Related Documents 5930-01-168-7476 5+ Documents (More...)
B15320 BOOT,DUST AND MOISTURE SEAL 60 EA NS Request Quotation Updated Every Day 5930-01-168-7476 RQST
Dust And Moisture Seal Boot 5930011687476 day Restrictions 5930-01-168-7476 DEMIL: A | DEMILI :
0 7800-0081-001 9454263 1437626-7 B-1532 B-1532-0 B15320 A flexible, nonmetallic item designed https/
/www.nsnlookup.com /fsg-59/fsc-5930/us 5930-01-168-7476 Dust And Moisture Seal Boot 5930011687476 day
https//www.nsnlookup.com /fsg-59/fsc-5930/us 5930-01-168-7476 Dust And Moisture Seal Boot 5930011687476
B1532-0 7800-0081-001 9454263 1437626-7 B-1532 B-1532-0 B15320 A flexible, nonmetallic item designed
-0 7800-0081-001 9454263 1437626 01-168-7476Dust And Moisture Seal Boot5930011687476 011687476 B1532B1532
-0 7800-0081-001 9454263 1437626 https//www.nsnlookup.com /fsg-59/fsc-5930/us 5930-01-168-7476 Dust And
NATO Update https 1963 Data Last Request Quotation Updated Every Day 5330-00-599-0319 RQST NE Updated B1532
-0 7800-0081 And Moisture Seal Boot 5930011687476 01-168-7476Dust And Moisture Seal Boot5930011687476
Restrictions 5930-01-168-7476
5930-01-168-7476 is a Dust And Moisture Seal Boot that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5930-01-168-7476
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5930-01-168-7476
- US Army (A918)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- A196
- US Coast Guard (C911)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- C007
- US Air Force (FXGX)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXTX
- US Navy (N9BN)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- GTHD
- Poland (WP01)
- Effective Date:
- 1 Apr 2008
- Canada (ZC01)
- Effective Date:
- 1 Sep 1996
Approved Sources 5930-01-168-7476
- Part Number
- Manufacturer
- Status
- 1437626-7
- Manufacturer
- 91506 - Augat Inc (Replaced)
- Original Design
- Original Design
- B-1532
- 95146 - Alco Electronic Products Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- B-1532-0
- 95146 - Alco Electronic Products Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- B15320
- 91506 - Augat Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 9454263
- 98750 - San Antonio Air Logistics Center (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 9454263
- 98752 - Warner Robins Air Logistics Center (Active)
- Vendor Drawing
- Vendor Drawing
- B1532
- 00779 - Te Connectivity Corporation (Active)
- Advisory Reference
- Advisory Reference
- B1532-0
- 00779 - Te Connectivity Corporation (Active)
- Advisory Reference
- Advisory Reference
- 7800-0081-001
- 06032 - Antenna Products Corporation (Active)
- Advisory Reference
- Advisory Reference
Datasheet 5930-01-168-7476
- Characteristic
- Specifications
- FIIG
- Specifications

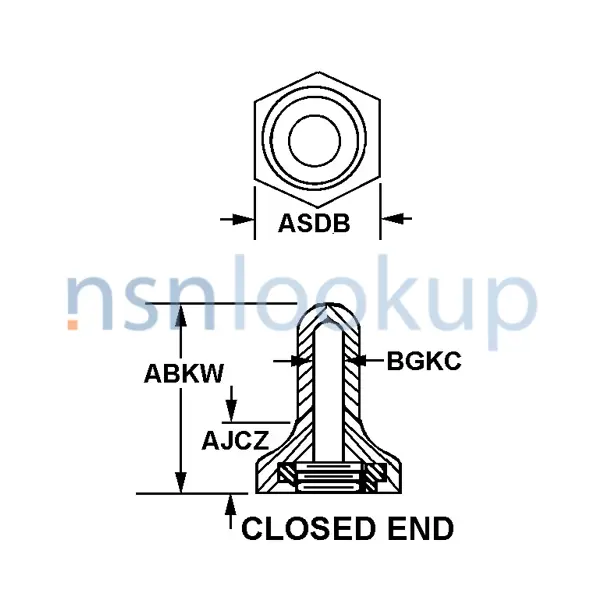

- A02000
- Style Designator [STYL]
- Closed End
- Overall Height [ABKW]
- 0.740 Inches Nominal
- Width Across Flats [ASDB]
- 0.670 Inches Nominal
- Material [MATT]
- Rubber Synthetic Body
- Mounting Method [AXGY]
- Thread
- Mounting Device Quantity [ACUP]
- 1
- Base Thread Location [CSFT]
- Internal
- Thread Series [BZRR]
- Uns
- Nominal Thread Size [CQJX]
- 0.469 Inches
- Thread Quantity Per Inch [CMLP]
- 32
- Thread Class [AAJD]
- 2B
- Thread Length [AASA]
- 0.142 Inches Nominal
- Special Features [FEAT]
- Color Black; Drawing Name-Cover, Toggle Switch
Weapon Systems (WSDC) 5930-01-168-7476
DLA Procurement Analysis 5930-01-168-7476
- Last Stock Position:
- 917 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5930-01-168-7476
Army
- Materiel Category and Inventory Manager:
- Q
- Electronics Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- EH
- ELECTRONIC COMPONENTS
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 5930-01-168-7476
Freight Information 5930-01-168-7476
5930-01-168-7476 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 194090. A Sub NMFC of X. It has a NMFC Description of WASHERS/SEALS. 5930-01-168-7476 is rated as class 60 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 95100 which rates the freight between FCL and LCL. 5930-01-168-7476 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 846 for ocean manifesting and military sealift. 5930-01-168-7476 is not classified as a special type of cargo when transported by water. 5930-01-168-7476 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5930-01-168-7476
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- --
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- See Method of Preservation
- --
Procurement History 5930-01-168-7476 1 Records
Contracting Technical Data File (CTDF) 5930-01-168-7476 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
