5930-01-134-3556

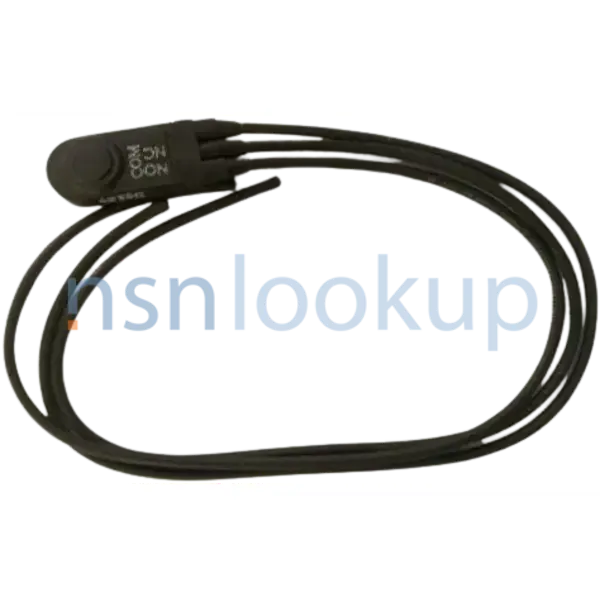

Sensitive Switch
5930011343556 011343556 11669649 A2016 M5305-000 P9752
A switch with a quick-acting mechanism actuated by a highly delicate tactile contact. Includes membrane switch. Excludes SWITCH, FLEXIBLE; SWITCH, PRESSURE; and SWITCH, THERMOSTATIC. View more Sensitive Switch
January 2023
14
Marketplace 5930-01-134-3556
Request a Quotation from participating marketplace vendors
Related Documents 5930-01-134-3556 5+ Documents (More...)
Industria Milanese, Elettroceramica Spa is an Active Manufacturer with the Cage Code A2016.
What is CAGE Code A2016?
What is CAGE Code A2016?
A2016 RING,BEARING,INNER 47 EA NS Request Quotation A2016 RING,BEARING,INNER 47 EA NS Request Quotation
Quotation Subscribe to View Vendor Details... 16561 RING,BEARING,INNER 99 EA NS Request Quotation A2016
A2016 RING,BEARING,INNER 47 EA NS Request Quotation A2016 RING,BEARING,INNER 47 EA NS Request Quotation
Restrictions 5930-01-134-3556
5930-01-134-3556 is a Sensitive Switch that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5930-01-134-3556
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5930-01-134-3556
- US Army (A918)
- Effective Date:
- 25 Apr 2008
- Former MOE Rule:
- A196
- Supplementary Receivers:
- AZBF
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Spain (YB01)
- Effective Date:
- 1 Mar 1999
- Greece (ZU01)
- Effective Date:
- 1 Aug 1995
- Turkey (ZW01)
- Effective Date:
- 1 Dec 2005
Approved Sources 5930-01-134-3556
- Part Number
- Manufacturer
- Status
- 11669649
- Manufacturer
- 19200 - Combat Capabilities Development (Active)
- Source Control
- Source Control
- A2016
- 81901 - Calculagraph Co (Inc) (Active)
- Primary Buy
- Primary Buy
- M5305-000
- 93953 - Melstrom Manufacturing Corporation (Active)
- Secondary Buy
- Secondary Buy
- P9752
- 81901 - Calculagraph Co (Inc) (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5930-01-134-3556
- Characteristic
- Specifications
- FIIG
- Specifications
- A053A0
- End Item Identification [AGAV]
- M60 Tank Family
- Actuator Height [AFUS]
- 0.032 Inches Nominal
- Actuator Diameter [AFUR]
- 0.438 Inches Nominal
- Actuator Movement [CXQQ]
- 0.015 Pretravel Inches Minimum And 0.015 Overtravel Inches Minimum And 0.005 Differential Inches Maximum
- Actuator Style [AFUQ]
- Round, Flush
- Body Diameter [ABPM]
- 0.810 Inches Nominal
- Body Length [ADAQ]
- 0.380 Inches Nominal
- Body Style [AAQL]
- Hole Mounted
- Case Material [ADTV]
- Metal
- Contact Load Current Rating At Maximum Rated Voltage [CXQR]
- 15.000 Amperes Resistive Dc And 7.500 Amperes Inductive Dc And 7.500 Amperes Lamp Dc
- Hazardous Locations/Environmental Protection [ABFE]
- Waterproof
- Maximum Voltage Rating In Volts [AFXE]
- 24.0 Dc
- Nonpile-Up Contact Arrangement [CRLD]
- 1 Pole, Single Throw, Both Positions Maintained Single Switch Unit
- Inclosure Type [AKNA]
- Fully Inclosed
- Overall Length [ABHP]
- 2.435 Inches Nominal
- Special Features [FEAT]
- Cables 12.000 Lg From Switch
- Switch Actuating Force [CSJN]
- 453.6 Grams Minimum And 907.2 Grams Maximum
- Switch Release Force [CRRM]
- 226.8 Grams Nominal
- Terminal Type And Quantity [TTQY]
- 3 Wire Lead
