5930-01-117-2764

Pressure Switch

5930011172764 011172764 74B838001-111 211C117-130 74B838001

A switch which is actuated by changes in pressure of any gas or liquid or by changes in a vacuum acting upon its sensing element. Excludes BAROSWITCH; SWITCH, PRESSURE-THERMOSTATIC; and SWITCH, SENSITIVE. View more Pressure Switch

5930-01-117-2764 SWITCH,PRESSURE 5930011172764 011172764

Managed by United States
NSN Created on 12 Aug 1981
Data Last Changed
November 2023
NATO Update Count
8
NATO Data Quality

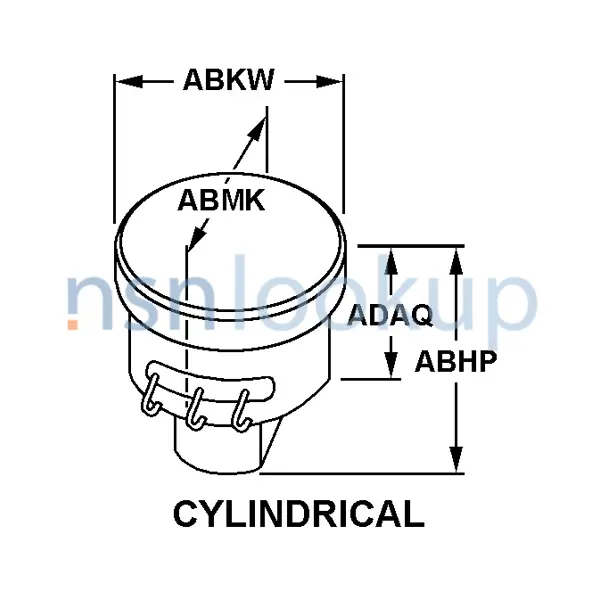

STYL Style 44 for 5930-01-117-2764 1/1
NSN 5930-01-117-2764 (Identification) 1/1

5930-01-117-2764 Stock and Availability Marketplace 5930-01-117-2764

Need Help?
Request a Quotation from participating marketplace vendors
eBay Updated Every Day
5930-01-117-2764 RQST NE eBay
eBay Updated Every Day
5930-01-117-2764 RQST eBay
Amazon Updated Every Day
5930-01-117-2764 RQST NE Amazon

5930-01-117-2764 Related Documents Related Documents 5930-01-117-2764 5+ Documents (More...)

74B838001-111 211C117-130 74B838001 A switch which is actuated by changes in pressure of any gas or
5930-01-117-2764 5+ Documents ( More... ) https//www.nsnlookup.com /fsg-59/fsc-5930/us 5930-01-117-2764
Pressure Switch 5930011172764 https//www.nsnlookup.com /fsg-59/fsc-5930/us 5930-01-117-2764 Pressure
for $1 a day Upgrade your Account Upgrade 5930-01-322-0902Pressure Switch5930013220902 013220902 74B838001
https//www.nsnlookup.com /fsg-59/fsc-5930/us 5930-01-322-0902 Pressure Switch 5930013220902013220902 74B838001
Pressure Switch 5930011172764 011172764 0902Pressure Switch5930013220902 013220902 Updated Every
for $1 a day Upgrade your Account Upgrade 5930-01-116-4463Pressure Switch5930011164463 011164463 74B838001
Pressure Switch 5930011172764 https//www.nsnlookup.com /fsg-59/fsc-5930/us 5930-01-117-2764 Pressure
Switch 5930011172764 011172764 Updated Every Day 5930-01-117-2764 https https/ https//www.nsnlookup.com
your Account Upgrade 5930-01-337-5063Pressure Switch5930013375063 013375063 21C1-1-9 2335-127-17 74B838001
5930-01-337-5063 RQST NE Updated Every Day 5930- https//www.nsnlookup.com /fsg-59/fsc-5930/us 5930-01-117-2764
Pressure Switch 5930011172764 011172764 -117-2764 https https/ https//www.nsnlookup.com https//
for $1 a day Upgrade your Account Upgrade 5930-01-356-0124Pressure Switch5930013560124 013560124 74B838001
https//www.nsnlookup.com /fsg-59/fsc-5930/us 5930-01-356-0124 Pressure Switch 5930013560124013560124 74B838001
Pressure Switch 5930011172764 011172764 0902Pressure Switch5930013220902 013220902 74B838001 https

5930-01-117-2764 Demil Restrictions 5930-01-117-2764

DEMIL: A | DEMILI: 1 | CRITICALITY: X | HMIC: P | PMIC: A | EDC: | ADPEC:

5930-01-117-2764 is a Pressure Switch that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.

5930-01-117-2764 HTS and ScheduleB Import and Export 5930-01-117-2764

5930-01-117-2764 End Users End Users 5930-01-117-2764

US Navy (N9BN)
Effective Date:
1 Jul 2005
Former MOE Rule:
N9ND
Supplementary Collaborators:
GTKE
Spain (YB01)
Effective Date:
1 Apr 1991
Australia (ZA01)
Effective Date:
1 Apr 1991
Canada (ZC01)
Effective Date:
1 Apr 1991

5930-01-117-2764 Manufacturers Approved Sources 5930-01-117-2764

5930-01-117-2764 Technical Data Datasheet 5930-01-117-2764

Characteristic
Specifications
FIIG
A048B0
End Item Identification [AGAV]
Bleed Air Sys
Contact Action Stimulus [CQGB]
Increase
Contact Adjustability [CTYC]
Deactuation Point Not Adjustable And Actuation Point Not Adjustable
Contact Load Current Rating [CTHF]
2.000 Amperes Resistive Load Single Voltage
Contact Stimulus Rating [CTYX]
150.00 Actuation Point Nominal Pounds Per Square Inch Gage And 120.00 Deactuation Point Nominal Pounds Per Square Inch Gage And 30.00 Differential Point Nominal Pounds Per Square Inch Gage
Contact Voltage Rating In Volts [CTZB]
28.0 Dc At Sea Level Single Voltage
Features Provided [CBBL]
Electrical Box Connector
Hazardous Locations/Environmental Protection [ABFE]
Explosion Proof
Media For Which Designed [MEDA]
Gas
Mounting Method [AXGY]
Input Port
Nominal Thread Size [CQJX]
0.438 Inches Single Pressure Connection
Nonpile-Up Contact Arrangement [CRLD]
1 Pole, Double Throw, One Position Momentary
Operating Temp Rating [AWTN]
-65.0 Deg Fahrenheit Minimum And 300.0 Deg Fahrenheit Maximum
Style Designator [STYL]
Cylindrical
Pressure Connector Type [CTZL]
Flared, Threaded External Single Connection
Pressure Switch Type [AJZC]
Gage
Proof Pressure [CQJB]
190.00 Pounds Per Square Inch Gage
Overall Diameter [ADAV]
1.120 Inches Nominal
Overall Length [ABHP]
3.500 Inches Nominal
Terminal Type [CSCF]
Connector, Receptacle
Thread Series Designator [THSD]
Unf Single Pressure Connection
Thread Quantity Per Inch [CMLP]
20 Single Pressure Connection

5930-01-117-2764 Weapon Systems (WSDC) Weapon Systems (WSDC) 5930-01-117-2764

5930-01-117-2764 Stock, Inventory and Procurement DLA Procurement Analysis 5930-01-117-2764

Last Stock Position:
5 In Stock
DLA Administrative Lead Time:
Subscribe
DLA Production Lead Time:
Subscribe
Subscribe to View DLA Inventory and Forecast...

5930-01-117-2764 Management Data Management Data 5930-01-117-2764

Effective Date
Organization
Unit of Issue
Unit Price
Qty Unit Pack
Oct 2022
Department of the Navy (DN)
EA
Subscribe
1
Oct 2021
Department of the Navy (DN)
EA
Subscribe
1
Oct 2020
Department of the Navy (DN)
EA
Subscribe
1
Oct 2019
Department of the Navy (DN)
EA
Subscribe
1

Navy Navy

Cognizance:
9B
Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg

5930-01-117-2764 Related Items NATO Stock Numbers Related to 5930-01-117-2764

5930-01-117-2764 Freight Data Freight Information 5930-01-117-2764

5930-01-117-2764 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061300. A Sub NMFC of X. It has a NMFC Description of CIRCUIT BREAKER/SWITCH NOI. 5930-01-117-2764 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34410 which rates the freight between FCL and LCL. 5930-01-117-2764 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5930-01-117-2764 is not classified as a special type of cargo when transported by water. 5930-01-117-2764 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

5930-01-117-2764 Packaging Data Packaging Data 5930-01-117-2764

Responsible Activity
Packaging Data Source
Primary Inventory Control Activity (PICA)
--

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation
--
--
--
0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
85 to 110G
No Requirement

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying
1
--
--
--
--
--
Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking
--
--
--
--
--
No special marking

Intermediate Pack Level

Quantity of Unit Packs
Container
See Method of Preservation
--

5930-01-117-2764 Procurement History Procurement History 5930-01-117-2764 8 Records

Contract
Date
CAGE
Quantity
Net Price
Std Price
SPE7M016V8549
25 Mar 2016
Subscribe
29
Subscribe
Subscribe
SPE7M015V7736
02 Apr 2015
Subscribe
8
Subscribe
Subscribe
SPE7M015V1493
31 Oct 2014
Subscribe
10
Subscribe
Subscribe
SPE7M014VH969
23 Sep 2014
Subscribe
12
Subscribe
Subscribe
SPE7M814M3715
21 Aug 2014
Subscribe
4
Subscribe
Subscribe
SPE7M114M5239
14 May 2014
Subscribe
10
Subscribe
Subscribe
SPE7M114M5229
14 May 2014
Subscribe
2
Subscribe
Subscribe
SPM4A111G0007YMVE01
17 Apr 2013
Subscribe
5
Subscribe
Subscribe

5930-01-117-2764 Contracting Technical Data File (CTDF) Contracting Technical Data File (CTDF) 5930-01-117-2764 October 2021

Criticality and Quality

Critical Item Code:
X
Flight Safety:
Life Support:
Certified Samples:
Serialization:
First Article Test (FAT):
Certificate of Quality Compliance:
Production Lot Testing:
Special Testing:
Qualified Products List (QPL):

Commercial Properties

Government Furnished Material:
Government Furnished Tooling:
Government Furnished Property:
Price Evaluation Code:
Diminshing Manufacturing Sources:
Warranty:
Commerical Off The Shelf (COTS):
End Item Application:
Auctioning Candidate:
Source of Procurement:
Contract Option:

Restrictions

Boeing Rights Guard:
Export Controlled:
Controlled Technical Data Package (TDP):
Restricted Technical Data Package (TDP):
Contains Classified Material
Weapons System Indicator Code (WSIC):
F

Packaging Requirements

Packaging Determination Table:
Packaging Review Code:
Special Packaging Instruction Number (SPIN):
Special Packaging Instruction Number Revision:
Special Packaging Instruction Number Date:
Pallet Reference Number Required:
