5930-01-098-6743

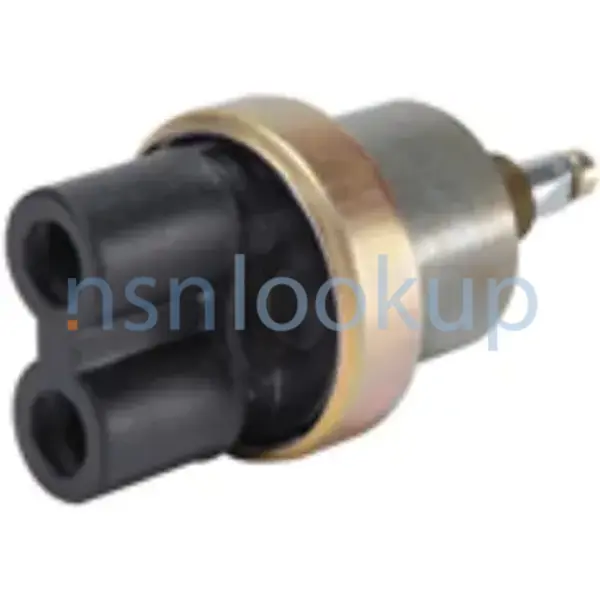

Rotary Switch
5930010986743 010986743 1309 11669214
A switch actuated by a definite angular rotation of the switch shaft about its axis. For items having rated actuation travel and pressure characteristics, see SWITCH, SENSITIVE. Excludes RELAY, ROTARY; SWITCH, STEPPING; and SWITCH, TELEPHONE (as modified). View more Rotary Switch
Managed by United States
NSN Created on 6 Aug 1980
Data Last Changed
August 2025
August 2025
NATO Update Count
6
6
NATO Data Quality
Marketplace 5930-01-098-6743
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 5930-01-098-6743 5+ Documents (More...)
1309 11669214 A switch actuated by a definite angular rotation of the switch shaft about its axis.
Vendor Details... 1309 SWITCH,ROTARY 52 EA NS Request Quotation Subscribe to View Vendor Details... 11669214
. 5930-01-098-6743 SWITCH,ROTARY 1 EA NS Request Quotation Subscribe to View Vendor Details... 1309 SWITCH
Vendor Details... 1309 SWITCH,ROTARY 52 EA NS Request Quotation Subscribe to View Vendor Details... 11669214
. 5930-01-098-6743 SWITCH,ROTARY 1 EA NS Request Quotation Subscribe to View Vendor Details... 1309 SWITCH
001-1372 5930-00-152-8212 5930-00-306-0823 5930-00-269-9825 5930-00-207-9422 5930-00-409-0785 5930-01-098-6743
890-4368 5930-00-152-8212 5930-00-306-0823 5930-00-269-9825 5930-00-207-9422 5930-00-409-0785 5930-01-098-6743
334-2862 5930-00-152-8212 5930-00-306-0823 5930-00-269-9825 5930-00-207-9422 5930-00-409-0785 5930-01-098-6743
134-5036 5930-00-152-8212 5930-00-306-0823 5930-00-269-9825 5930-00-207-9422 5930-00-409-0785 5930-01-098-6743
Restrictions 5930-01-098-6743
5930-01-098-6743 is a Rotary Switch that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5930-01-098-6743
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5930-01-098-6743
- US Army (A918)
- Effective Date:
- 1 Aug 2006
- Former MOE Rule:
- A196
- Supplementary Receivers:
- AZCTBD
- US Air Force (FXGX)
- Effective Date:
- 1 Aug 2006
- Former MOE Rule:
- FXTX
- US Marine Corps (MC49)
- Effective Date:
- 1 Aug 2006
- Former MOE Rule:
- MC13
- US Navy (N9BN)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GG
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 2008
Approved Sources 5930-01-098-6743
- Part Number
- Manufacturer
- Status
- 11669214
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
- 1309
- 0ZSM8 - Ucom, Inc. (Active)
- Secondary Buy
- Secondary Buy
- 11669214
- 1Y875 - Southern Automotive Wholesalers, Inc (Active)
- Secondary Buy
- Secondary Buy
- 1309
- 81263 - Universal Components Corp (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5930-01-098-6743
- Characteristic
- Specifications
- FIIG
- Specifications
- A052B0
- Contact Load Current Rating [CTHF]
- 10.0 Amperes Inductive Load Dc At Sea Level And 5.0 Amperes Lamp Load Dc At Sea Level And 10.0 Amperes Resistive Load Dc At Sea Level
- Contact Voltage Rating In Volts [CQMK]
- 28.0 Dc At Sea Level
- Mounting Method [AXGY]
- Threaded Bushing Single Mounting Facility
- Nominal Thread Size [CQJX]
- 0.500 Inches Single Mounting Facility
- Individual Section Quantity [AFBH]
- 1
- Shaft Length [ABXF]
- 0.375 Inches Nominal Single Actuator
- Switch Actuator Indexing Position Quantity [CRJH]
- 3 Single Actuator
- Switch Actuator Positioning Increment [CSLC]
- 45.0 Degrees Single Actuator
- Switch Actuator Stop Device Type [CTDN]
- Fixed Stop Single Actuator
- Switch Contact Basic Design [AJZE]
- Nonpile-Up Nonsymmetrical
- Thread Class [AAJD]
- 2A Single Mounting Facility
- Thread Length [AASA]
- 0.560 Inches Nominal Single Mounting Facility
- Thread Series Designator [THSD]
- Unf Single Mounting Facility
Weapon Systems (WSDC) 5930-01-098-6743
DLA Procurement Analysis 5930-01-098-6743
- Last Stock Position:
- 18 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5930-01-098-6743
Army
- Materiel Category and Inventory Manager:
- Q
- Electronics Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- EH
- ELECTRONIC COMPONENTS
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Material Identification:
- B
- Consumable Repair Parts
- Operational Test:
- No Special Procedures
Similar Supply Items to 5930-01-098-6743
Freight Information 5930-01-098-6743
5930-01-098-6743 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061300. A Sub NMFC of X. It has a NMFC Description of CIRCUIT BREAKER/SWITCH NOI. 5930-01-098-6743 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34410 which rates the freight between FCL and LCL. 5930-01-098-6743 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5930-01-098-6743 is not classified as a special type of cargo when transported by water. 5930-01-098-6743 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5930-01-098-6743
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- --
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- See Method of Preservation
- --
Procurement History 5930-01-098-6743 20 Records
- Contract
- Date
- CAGE
- Quantity
- Net Price
- Std Price
- CAGE
- SPE7M118F74DE
- 12 May 2018
- Subscribe
- 1
- Subscribe
- Subscribe
- Subscribe
- SPE7L117D001247GF
- 22 Aug 2017
- Subscribe
- 1
- Subscribe
- Subscribe
- Subscribe
- SPE7L116D000367T4
- 29 Jul 2016
- Subscribe
- 1
- Subscribe
- Subscribe
- Subscribe
- SPE7L116D0003936W
- 01 Jun 2016
- Subscribe
- 5
- Subscribe
- Subscribe
- Subscribe
- SPE7L116D0003521Y
- 30 Apr 2016
- Subscribe
- 1
- Subscribe
- Subscribe
- Subscribe
- SPE7L116D0003237X
- 09 Apr 2016
- Subscribe
- 2
- Subscribe
- Subscribe
- Subscribe
- SPE7L116D0003225E
- 08 Apr 2016
- Subscribe
- 1
- Subscribe
- Subscribe
- Subscribe
- SPE7L116D00030450
- 24 Feb 2016
- Subscribe
- 1
- Subscribe
- Subscribe
- Subscribe
- SPM7LX12D900568YQ
- 01 Mar 2013
- Subscribe
- 5
- Subscribe
- Subscribe
- Subscribe
- SPM7LX12D900568SH
- 28 Feb 2013
- Subscribe
- 1
- Subscribe
- Subscribe
- Subscribe
- SPM7LX12D900565TT
- 19 Feb 2013
- Subscribe
- 2
- Subscribe
- Subscribe
- Subscribe
- SPM7LX12D900565EJ
- 17 Feb 2013
- Subscribe
- 1
- Subscribe
- Subscribe
- Subscribe
- SPM7LX12D900565BU
- 17 Feb 2013
- Subscribe
- 1
- Subscribe
- Subscribe
- Subscribe
- SPM7LX12D9005655Y
- 14 Feb 2013
- Subscribe
- 1
- Subscribe
- Subscribe
- Subscribe
- SPM7LX12D900564ML
- 13 Feb 2013
- Subscribe
- 1
- Subscribe
- Subscribe
- Subscribe
- SPM7LX12D900563VQ
- 12 Feb 2013
- Subscribe
- 1
- Subscribe
- Subscribe
- Subscribe
- SPM7LX12D9005641F
- 12 Feb 2013
- Subscribe
- 1
- Subscribe
- Subscribe
- Subscribe
- SPM7LX12D900561TP
- 05 Feb 2013
- Subscribe
- 1
- Subscribe
- Subscribe
- Subscribe
- SPM7LX12D9005623F
- 05 Feb 2013
- Subscribe
- 1
- Subscribe
- Subscribe
- Subscribe
- SPM7LX12D900561RU
- 04 Feb 2013
- Subscribe
- 1
- Subscribe
- Subscribe
- Subscribe
Contracting Technical Data File (CTDF) 5930-01-098-6743 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- T
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
