5930-01-093-0013
Lock Switch
5930010930013 010930013 313976 67202A
A switch which is externally actuated by a key designed to be inserted into a switch, or actuated by a predetermined combination dial setting(s). Excludes SWITCH, LOCK, IGNITION. View more Lock Switch
January 2023
8
Marketplace 5930-01-093-0013
Request a Quotation from participating marketplace vendors
Related Documents 5930-01-093-0013 3+ Documents (More...)
RQST NE Updated Every Day 5930-01-093-0013 RQST Updated Every Day 5930-01-093-0013 RQST NE Related Documents
5930-01-093-0013 3+ Documents ( More... ) https//www.nsnlookup.com /fsg-59/fsc-5930/us 5930-01-093-0013
58163 - Meggitt (North Hollywood), Inc. https//www.nsnlookup.com /fsg-59/fsc-5930/us 5930-01-093-0013
Lock Switch 5930010930013 010930013,313976 Upgrade for $1 a day Upgrade your Account Upgrade 5930-01
/fsg-43/fsc-4310/us
how to enable JavaScript in your web browser . 5340-33-155-7468Mending Plate5340331557468 331557468 313976
Lock Switch 5930010930013 010930013,313976 Upgrade for $1 a day Upgrade your Account Upgrade 5930
Restrictions 5930-01-093-0013
5930-01-093-0013 is a Lock Switch that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5930-01-093-0013
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5930-01-093-0013
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Saudi Arabia (YS01)
- Effective Date:
- 1 Feb 2015
Approved Sources 5930-01-093-0013
- Part Number
- Manufacturer
- Status
- 313976
- Manufacturer
- 22915 - Northrop Grumman Corp (Active)
- Primary Buy
- Primary Buy
- 67202A
- 82121 - Electro Switch Corp. (Active)
- Secondary Buy
- Secondary Buy
Datasheet 5930-01-093-0013
- Characteristic
- Specifications
- FIIG
- Specifications
- A053A0
- Maximum Voltage Rating In Volts [AFXE]
- 200.0 Ac
- Contact Load Current Rating At Maximum Rated Voltage [CXQR]
- 5.000 Amperes Inductive Ac

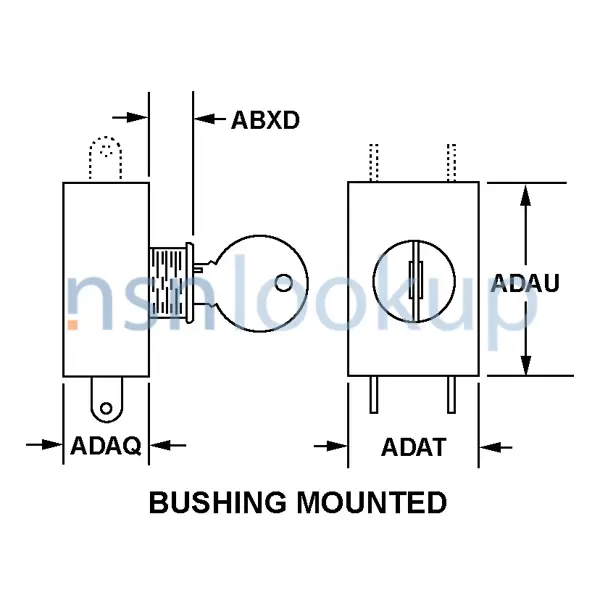

- Body Style [AAQL]
- Bushing Mounted
- Bushing Length [ABXD]
- 0.625 Inches Maximum
- Body Length [ADAQ]
- 2.160 Inches Nominal
- Body Width [ADAT]
- 2.000 Inches Nominal
- Body Height [ADAU]
- 2.000 Inches Nominal
- Terminal Type And Quantity [TTQY]
- 16 Screw
- Inclosure Type [AKNA]
- Fully Inclosed
NATO Stock Numbers Related to 5930-01-093-0013
Freight Information 5930-01-093-0013
5930-01-093-0013 has freight characteristics managed by Saudi Arabia.It has a National Motor Freight Classification (NMFC) of 061300. A Sub NMFC of X. It has a NMFC Description of CIRCUIT BREAKER/SWITCH NOI. 5930-01-093-0013 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. 5930-01-093-0013 is rated as class 77.5 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 34410 which rates the freight between FCL and LCL. 5930-01-093-0013 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5930-01-093-0013 is not classified as a special type of cargo when transported by water. 5930-01-093-0013 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
