5930-01-074-9602
Push Switch
5930010749602 010749602 12283173 1XE79-3
A switch that is externally actuated by a device such as a push rod or button, which requires pushing for each actuation. The action may be momentary, with mechanical return. The actuating device may or may not be an integral part of the switch. The item may include provisions for mounting indicating lamp(s) or light emitting diode(s) in the actuator. Includes items consisting of individually separable switches that are physically interlocked, that have a common actuator, or are electrically connected. Excludes LIGHT-SWITCH; LIGHT-SWITCH ASSEMBLY; SWITCH, BEAM SELECTING, HEADLIGHT; SWITCH, FOOT; SWITCH, INTERLOCK; SWITCH, PRESSURE; SWITCH, PUSH-PULL; SWITCH, SENSITIVE and SWITCH ASSEMBLY. For devices which start, stop, reverse, select and/or regulate the speed of a motor, see STARTER, MOTOR and CONTROLLER, MOTOR. View more Push Switch
August 2023
7
Marketplace 5930-01-074-9602
Request a Quotation from participating marketplace vendors
Related Documents 5930-01-074-9602 1+ Documents (More...)
SWITCH,PUSH 20 EA NS Request Quotation Subscribe to View Vendor Details... 1XE79-3 SWITCH,PUSH
15 EA NS Request Quotation Updated Every Day 5930-01-074-9602 RQST NE Updated Every Day 5930-01-074-
Restrictions 5930-01-074-9602
5930-01-074-9602 is a Push Switch that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5930-01-074-9602
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5930-01-074-9602
- US Army (A918)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- A196
- Supplementary Receivers:
- AZBF
- US Marine Corps (MC49)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- MC13
- US Navy (N9BN)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GG
- Australia (ZA01)
- Effective Date:
- 1 Mar 2005
- Republic of Korea (ZH01)
- Effective Date:
- 1 Jun 2005
Approved Sources 5930-01-074-9602
- Part Number
- Manufacturer
- Status
- 12283173
- Manufacturer
- 19200 - Combat Capabilities Development (Active)
- Source Control
- Source Control
- 1XE79-3
- 91929 - Honeywell International Inc. (Active)
- Primary Buy
- Primary Buy
- 5930010749602
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
Datasheet 5930-01-074-9602
- Characteristic
- Specifications
- FIIG
- Specifications
- A053A0

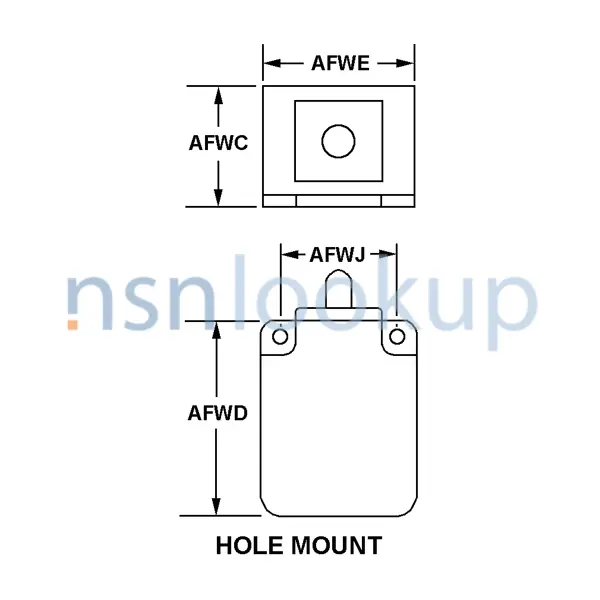

- Body Style [AAQL]
- Hole Mount
- Center To Center Distance Between Housing Mounting Facilities Parallel To Width [AFWJ]
- 0.188 Inches Nominal
- Contact Load Current Rating At Maximum Rated Voltage [CXQR]
- 7.000 Amperes Resistive Dc And 4.000 Amperes Inductive Dc
- End Item Identification [AGAV]
- Tank,Full Tracked,Xm1;Tank,Full Tracked M1a1;Tank,Full Tracked,Xm1
- Hazardous Locations/Environmental Protection [ABFE]
- Watertight
- Housing Height [AFWC]
- 0.316 Inches Nominal
- Housing Length [AFWD]
- 0.695 Inches Nominal
- Housing Width [AFWE]
- 0.616 Inches Nominal
- Maximum Voltage Rating In Volts [AFXE]
- 28.0 Dc
- Mounting Method [AXGY]
- Unthreaded Hole
- Inclosure Type [AKNA]
- Fully Inclosed
- Special Features [FEAT]
- Leads Mil-W-22759/5-20-9 36.000 Lg From Mtg Hole C/L
- Unthreaded Mounting Hole Diameter [AEBV]
- 0.091 Inches Nominal
- Terminal Type And Quantity [TTQY]
- 2 Wire Lead
Weapon Systems (WSDC) 5930-01-074-9602
DLA Procurement Analysis 5930-01-074-9602
- Last Stock Position:
- 358 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5930-01-074-9602
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Jul 2023
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- Oct 2022
- US Marine Corps (DM)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- Oct 2020
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Mar 2020
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
Army
- Materiel Category and Inventory Manager:
- Q
- Electronics Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
Similar Supply Items to 5930-01-074-9602
Freight Information 5930-01-074-9602
5930-01-074-9602 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061300. A Sub NMFC of X. It has a NMFC Description of CIRCUIT BREAKER/SWITCH NOI. 5930-01-074-9602 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34410 which rates the freight between FCL and LCL. 5930-01-074-9602 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5930-01-074-9602 is not classified as a special type of cargo when transported by water. 5930-01-074-9602 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5930-01-074-9602
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- --
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- See Method of Preservation
- --
Procurement History 5930-01-074-9602 5 Records
- Contract
- Date
- CAGE
- Quantity
- Net Price
- Std Price
- CAGE
- SPE7M824P0200
- 03 Nov 2023
- Subscribe
- 247
- Subscribe
- Subscribe
- Subscribe
- SPE7M818V2130
- 13 Aug 2018
- Subscribe
- 702
- Subscribe
- Subscribe
- Subscribe
- SPE7M818P0100
- 06 Oct 2017
- Subscribe
- 431
- Subscribe
- Subscribe
- Subscribe
- SPE7M816M3382
- 29 Jun 2016
- Subscribe
- 153
- Subscribe
- Subscribe
- Subscribe
- SPE7M816V0223
- 17 Nov 2015
- Subscribe
- 595
- Subscribe
- Subscribe
- Subscribe
Contracting Technical Data File (CTDF) 5930-01-074-9602 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
