5930-01-050-4347
Lever Switch
5930010504347 010504347 84312L
A switch which is externally actuated by a lever and whose contacts open and close at a speed proportional to the speed at which the lever is operated. Includes pile-up lever switches and wafer lever switches. Excludes SWITCH, TOGGLE; SWITCH, ROTARY; SWITCH, KNIFE; SWITCH, SENSITIVE; SWITCH, BOX; and SWITCH, MERCURY. View more Lever Switch
May 2023
4
Marketplace 5930-01-050-4347
Request a Quotation from participating marketplace vendors
Related Documents 5930-01-050-4347 4+ Documents (More...)
+ Documents ( More... ) https//www.nsnlookup.com /fsg-59/fsc-5930/us 5930-01-050-4347 Lever Switch 5930010504347
010504347,84312L 5930-01-050-4347 RQST Updated Every Day 5930-01-050-4347 RQST NE Related Documents
Subscribe to View Vendor Details... 3100-3-684 SWITCH https//www.nsnlookup.com /fsg-59/fsc-5930/us 5930-01-050-4347
Lever Switch 5930010504347 010504347,84312L SWITCH,LEVER 2 EA NS Request Quotation FS129-1001-500S613
Updated Every Day 5930-00-901-8274 RQST NE Related https//www.nsnlookup.com /fsg-59/fsc-5930/us 5930-01-050-4347
Lever Switch 5930010504347 010504347,84312L 5930010458134 SWITCH,LEVER 1 EA NS Request Quotation
Agency (DS)IAConsolidated With 5930-01-045-8134 https//www.nsnlookup.com /fsg-59/fsc-5930/us 5930-01-050-4347
Lever Switch 5930010504347 010504347,84312L a Quotation from participating marketplace vendors
Restrictions 5930-01-050-4347
5930-01-050-4347 is a Lever Switch that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item contains Silver.
Import and Export 5930-01-050-4347
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5930-01-050-4347
- US Navy (N9BN)
- Effective Date:
- 1 Nov 2005
- Supplementary Collaborators:
- KE
- France (ZF)
- France (ZF01)
- Effective Date:
- 1 Oct 2007
- United States of America (ZZ)
Approved Sources 5930-01-050-4347
- Part Number
- Manufacturer
- Status
- 84312L
- Manufacturer
- 82389 - Switchcraft Inc. (Active)
- Primary Buy
- Primary Buy
Datasheet 5930-01-050-4347
- Characteristic
- Specifications
- FIIG
- Specifications
- A053A0
- Actuator Height [AFUS]
- 0.968 Inches Nominal
- Actuator Position-Action Relationship [AFUX]
- Up Position Maintained And Down Position Maintained And Center Position Maintained
- Actuator Style [AFUQ]
- Rectangular
- Body Height [ADAU]
- 1.500 Inches Maximum
- Body Length [ADAQ]
- 1.812 Inches Nominal

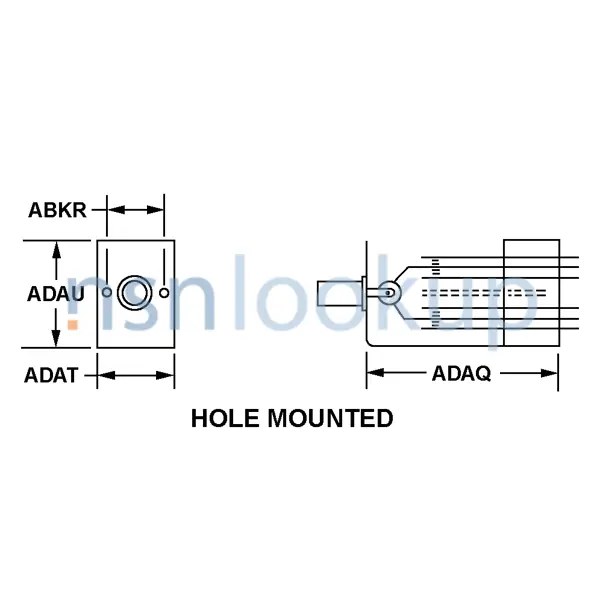

- Body Style [AAQL]
- Hole Mounted
- Body Width [ADAT]
- 0.875 Inches Maximum
- Contact Load Current Rating At Maximum Rated Voltage [CXQR]
- 3.000 Amperes Resistive Ac
- End Item Identification [AGAV]
- Training Device 49956
- Maximum Voltage Rating In Volts [AFXE]
- 125.0 Ac
- Mounting Method [AXGY]
- Unthreaded Hole
- Inclosure Type [AKNA]
- Fully Inclosed
- Precious Material And Location [PMLC]
- Contacts Silver
- Pile-Up Contact Form Arrangement [CQDK]
- Hc Single Position
- Terminal Type And Quantity [TTQY]
- 12 Tab, Solder Lug
DLA Procurement Analysis 5930-01-050-4347
Management Data 5930-01-050-4347
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5930-01-050-4347
Freight Information 5930-01-050-4347
5930-01-050-4347 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061300. A Sub NMFC of X. It has a NMFC Description of CIRCUIT BREAKER/SWITCH NOI. 5930-01-050-4347 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34410 which rates the freight between FCL and LCL. 5930-01-050-4347 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5930-01-050-4347 is not classified as a special type of cargo when transported by water. 5930-01-050-4347 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
