5930-01-038-5921
Mercury Switch
5930010385921 010385921 5MP18-2 802409-1
A switch in which a mercury pool is used to bridge fixed contacts when their inclosing sealed capsule is tilted. Do not use if switch has an actuator, such as lever, push button, toggle, and the like. See SWITCH (as modified). For items in which a contact may be moved into a mercury pool by a magnetic field, see SWITCH, REED. View more Mercury Switch
May 2023
6
Marketplace 5930-01-038-5921
Request a Quotation from participating marketplace vendors
Related Documents 5930-01-038-5921 5+ Documents (More...)
/fsg-59/fsc-5930/us
SWITCH,MERCURY 3 EA NS Request Quotation Updated Every Day 5930-01-038-5921 RQST NE Updated Every
Day 5930-01-038-5921 RQST Updated Every Day 5930-01-038-5921 RQST NE Related Documents 5930-01-038-5921
Mercury Switch 5930010385921 010385921 a day Upgrade your Account Upgrade 5930-01-038-5921Mercury
Switch5930010385921 010385921 5MP18-2 802409 Carrucola 2540150032181 150032181,802409 145195565 802409
Mercury Switch 5930010385921 010385921 /fr 3120-14-519-5565 Sleeve Bushing 3120145195565 145195565,802409
3317Fluid Filter2940994853317 994853317 04/802409 https//www.nsnlookup.com /fsg-59/fsc-5930/us 5930-01-038-5921
Mercury Switch 5930010385921 010385921 a day Upgrade your Account Upgrade 5930-01-038-5921Mercury
Switch5930010385921 010385921 5MP18-2 802409 Sleeve Bushing 3120145195565 145195565,802409 3317Fluid
/fsg-53/fsc-5340/us
875-8491 Dust And Moisture Seal Protective Cap, https//www.nsnlookup.com /fsg-59/fsc-5930/us 5930-01-038-5921
Mercury Switch 5930010385921 010385921 a day Upgrade your Account Upgrade 5930-01-038-5921Mercury
Restrictions 5930-01-038-5921
5930-01-038-5921 is a Mercury Switch that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5930-01-038-5921
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5930-01-038-5921
- MOE Rule:
- B481
- Effective Date:
- 1 Apr 1998
- Former MOE Rule:
- B480
- US Air Force (FX48)
- Effective Date:
- 1 Aug 2001
- Republic of Korea (ZH01)
- Effective Date:
- 1 May 1998
Approved Sources 5930-01-038-5921
- Part Number
- Manufacturer
- Status
- 5MP18-2
- Manufacturer
- 91929 - Honeywell International Inc. (Active)
- Primary Buy
- Primary Buy
- 802409-1
- 96214 - Raytheon Company (Active)
- Secondary Buy
- Secondary Buy
Datasheet 5930-01-038-5921
- Characteristic
- Specifications
- FIIG
- Specifications
- A053A0

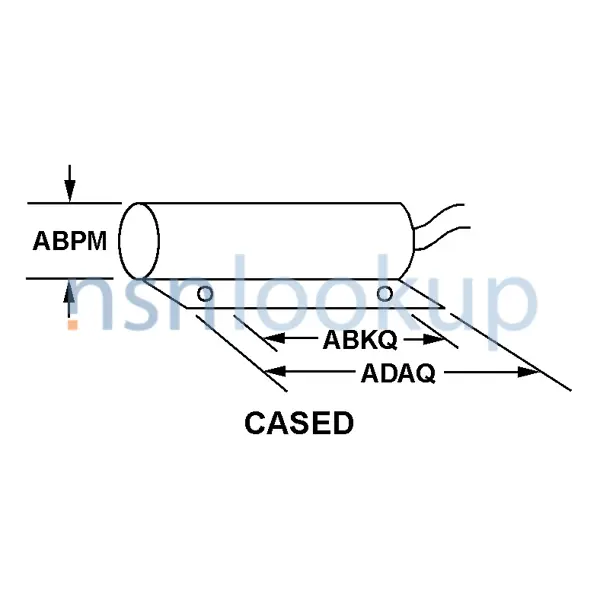

- Body Diameter [ABPM]
- 0.562 Inches Nominal
- Body Length [ADAQ]
- 1.750 Inches Nominal
- Body Style [AAQL]
- Cased
- Center To Center Distance Between Mounting Facilities Parallel To Length [ABKQ]
- 0.750 Inches Nominal
- Contact Load Current Rating At Maximum Rated Voltage [CXQR]
- 45.000 Amperes Resistive Dc And 45.000 Amperes Resistive Ac
- Maximum Voltage Rating In Volts [AFXE]
- 250.0 Ac And 250.0 Dc
- Nonpile-Up Contact Arrangement [CRLD]
- 1 Pole, Single Throw, Normally Open, Momentary Action Single Switch Unit
- Unthreaded Mounting Hole Diameter [AEBV]
- 0.156 Inches Nominal
- Switch Actuation Differential Angle [CQPW]
- 30.0 Degrees Nominal
- Terminal Type And Quantity [TTQY]
- 2 Wire Lead
Management Data 5930-01-038-5921
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
NATO Stock Numbers Related to 5930-01-038-5921
Freight Information 5930-01-038-5921
5930-01-038-5921 has freight characteristics.. 5930-01-038-5921 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
