5930-01-036-0126
Slide Switch
5930010360126 010360126 G-168S-0000
A switch designed to be actuated by the sliding of a button, bar, or knob. View more Slide Switch
May 2023
3
Marketplace 5930-01-036-0126
Request a Quotation from participating marketplace vendors
Related Documents 5930-01-036-0126 2+ Documents (More...)
United States (US) 4. 5930-01-036-0126 Marketplace Restrictions Approved Sources Datasheet Management
Request a Quotation from participating marketplace vendors Request Updated Every Day 5930-01-036-0126
Slide Switch 5930010360126 010360126 Upgrade for $1 a day Upgrade your Account Upgrade 5930-01-
036-0126Slide Switch5930010360126 010360126 G-168S https//www.nsnlookup.com /fsg-59/fsc-5930/us 5930-
Restrictions 5930-01-036-0126
5930-01-036-0126 is a Slide Switch that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5930-01-036-0126
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5930-01-036-0126
- National Security Agency (DGX1)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- DTX1
- Supplementary Receivers:
- TX
Approved Sources 5930-01-036-0126
- Part Number
- Manufacturer
- Status
- G-168S-0000
- Manufacturer
- 79727 - Electro Switch Corp. (Active)
- Primary Buy
- Primary Buy
Datasheet 5930-01-036-0126
- Characteristic
- Specifications
- FIIG
- Specifications
- A053A0
- Actuator Height [AFUS]
- 0.200 Inches Nominal
- Actuator Color [AFVA]
- Black Single Actuator
- Actuator Length [AFGK]
- 0.218 Inches Nominal
- Actuator Position-Action Relationship [AFUX]
- Center Position Momentary And Left Position Maintained And Right Position Maintained
- Actuator Width [AFUT]
- 0.125 Inches Nominal
- Body Height [ADAU]
- 0.295 Inches Nominal
- Body Length [ADAQ]
- 0.812 Inches Nominal

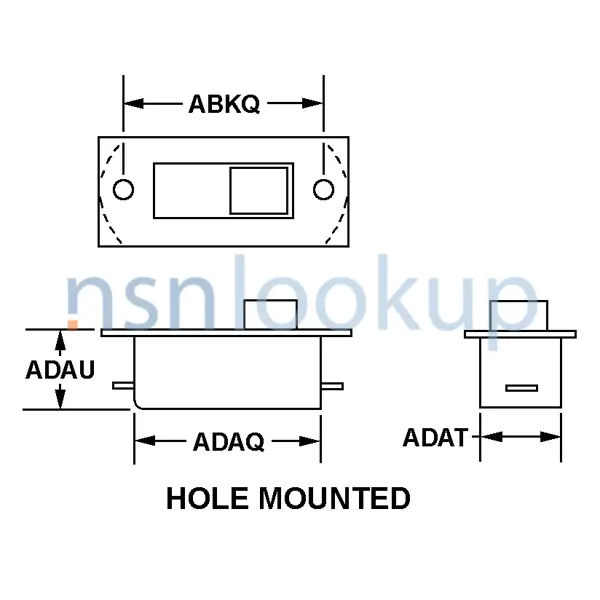

- Body Style [AAQL]
- Hole Mounted
- Body Width [ADAT]
- 0.567 Inches Nominal
- Center To Center Distance Between Mounting Facilities Parallel To Length [ABKQ]
- 1.000 Inches Nominal
- Contact Load Current Rating At Maximum Rated Voltage [CXQR]
- 500.000 Milliamperes Resistive Dc And 500.000 Milliamperes Resistive Ac
- Maximum Voltage Rating In Volts [AFXE]
- 125.0 Ac And 125.0 Dc
- Nonpile-Up Contact Arrangement [CRLD]
- 3 Pole, Double Throw, One Position Momentary, Two Positions Maintained Single Switch Unit
- Unthreaded Mounting Hole Diameter [AEBV]
- 0.100 Inches Nominal
- Terminal Type And Quantity [TTQY]
- 9 Printed Circuit
DLA Procurement Analysis 5930-01-036-0126
Management Data 5930-01-036-0126
NATO Stock Numbers Related to 5930-01-036-0126
Freight Information 5930-01-036-0126
5930-01-036-0126 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 063250. A Sub NMFC of Z. It has a NMFC Description of SWITCHES AIR-BREAK. 5930-01-036-0126 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34410 which rates the freight between FCL and LCL. 5930-01-036-0126 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5930-01-036-0126 is not classified as a special type of cargo when transported by water. 5930-01-036-0126 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 5930-01-036-0126 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
