5930-01-021-1559

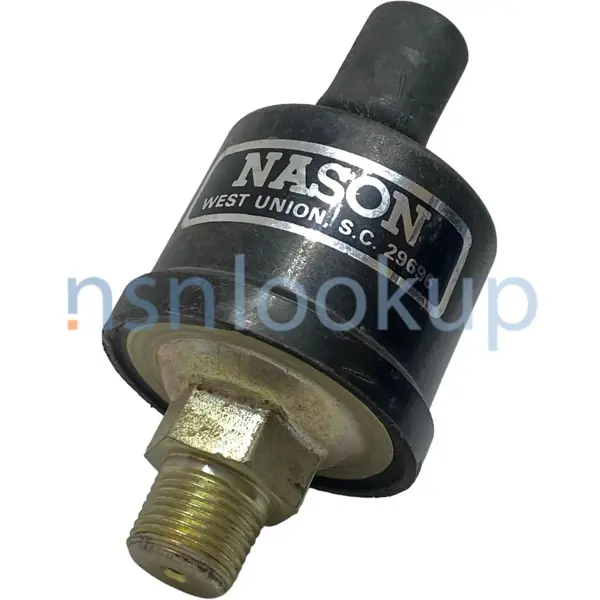

Pressure Switch
5930010211559 010211559 11668621 P27-M20 SM-9B-11R/P1131 SP-9B-11RP0 SP9B-11RP
A switch which is actuated by changes in pressure of any gas or liquid or by changes in a vacuum acting upon its sensing element. Excludes BAROSWITCH; SWITCH, PRESSURE-THERMOSTATIC; and SWITCH, SENSITIVE. View more Pressure Switch
Managed by United States
NSN Created on 10 May 1976
Data Last Changed
May 2025
May 2025
NATO Update Count
28
28
NATO Data Quality
Marketplace 5930-01-021-1559
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
11668621 SWITCH,PRESSURE 1 EA NS
SP-98-11RP SWITCH,PRESSURE 1 EA NS
1166-8621 SWITCH,PRESSURE 1 EA NS
P27-M20 SWITCH,PRESSURE RQST NS
SP-9B-11RP0 SWITCH,PRESSURE 6 EA NS
11668621 SWITCH,PRESSURE 1 EA NS
Updated Every Day 5930-01-021-1559 RQST NE
Updated Every Day 5930-01-021-1559 RQST
Updated Every Day 5930-01-021-1559 RQST NE
Related Documents 5930-01-021-1559 3+ Documents (More...)
11668621 P27-M20 SM-9B-11R/P1131 SP-9B-11RP0 SP9B-11RP A switch which is actuated by changes in pressure
P27-M20 SWITCH,PRESSURE RQST NS Request Quotation SP-9B-11RP0 SWITCH,PRESSURE 6 EA NS Request Quotation
11668621 SWITCH,PRESSURE 1 EA NS Request Quotation Subscribe to View Vendor Details... 5930-01-021-1559
P27-M20 SWITCH,PRESSURE RQST NS Request Quotation SP-9B-11RP0 SWITCH,PRESSURE 6 EA NS Request Quotation
11668621 SWITCH,PRESSURE 1 EA NS Request Quotation Subscribe to View Vendor Details... 5930-01-021-1559
Switch5930006702340 006702340909254820844SM-9B-11RP/P1131 https//www.nsnlookup.com /fsg-59/fsc-5930/us 5930-01-021-1559
Pressure Switch 5930010211559 010211559, Account Upgrade 5930-01-021-1559Pressure Switch5930010211559
010211559 11668621 P27-M20 SM-9B-11R/P1131 Surgical Nonabsorbable Suture 6515270055074 Switch5930006702340
Pressure Switch 5930010211559 010211559, Account Upgrade 5930-01-021-1559Pressure Switch5930010211559
010211559 11668621 P27-M20 SM-9B-11R/P1131 Surgical Nonabsorbable Suture 6515270055074 Switch5930006702340
Upgrade 5930-00-670-2340Pressure Switch5930006702340 006702340 9092548 20844 SM-9B-11RP/P1131 1508696 SP9B-11RP
SP9B-11RP SWITCH,PRESSURE 5 EA NS Request Quotation Subscribe to View Vendor Details... 5930-00-670-2340
909254820844SM-9B-11RP/P11311508696SP9B-11RP A switch which is actuated by changes in pressure of SP9B-11RP
SP9B-11RP SWITCH,PRESSURE 5 EA NS Request Quotation Subscribe to View Vendor Details... 5930-00-670-2340
909254820844SM-9B-11RP/P11311508696SP9B-11RP A switch which is actuated by changes in pressure of SP9B-11RP
Restrictions 5930-01-021-1559
5930-01-021-1559 is a Pressure Switch that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5930-01-021-1559
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5930-01-021-1559
- US Army (A918)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- A196
- Supplementary Receivers:
- AZ
- US Air Force (FXGX)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXTX
- US Marine Corps (MC49)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- MC13
- US Navy (N9BN)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GG
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Brazil (YA01)
- Effective Date:
- 1 Mar 2001
- Spain (YB01)
- Effective Date:
- 1 May 1997
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Morocco (YP01)
- Effective Date:
- 1 Nov 2008
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Aug 1995
- Turkey (ZW01)
- Effective Date:
- 1 Aug 2001
Approved Sources 5930-01-021-1559
- Part Number
- Manufacturer
- Status
- 11668621
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Source Control
- Source Control
- P27-M20
- 14314 - United Electric Controls Co (Active)
- Primary Buy
- Primary Buy
- SM-9B-11R/P1131
- 85814 - Nason Company, The Inc (Active)
- Primary Buy
- Primary Buy
- SP-9B-11RP0
- 85814 - Nason Company, The Inc (Active)
- Original Design
- Original Design
- 5930010211559
- SCY13 - E.C.A Etablissement (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- SP9B-11RP
- 85814 - Nason Company, The Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 5930010211559
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
Datasheet 5930-01-021-1559
- Characteristic
- Specifications
- FIIG
- Specifications
- A048B0
- Contact Action Stimulus [CQGB]
- Increase
- Contact Adjustability [CTYC]
- Deactuation Point Not Adjustable And Actuation Point Not Adjustable
- Contact Load Current Rating [CTHF]
- 5.0 Amperes Resistive Load Single Voltage And 3.0 Amperes Inductive Load Single Voltage And 24.0 Amperes Lamp Load Single Voltage And 24.0 Amperes Motor Load Single Voltage
- Contact Stimulus Rating [CTYX]
- 9.00 Actuation Point Minimum Pounds Per Square Inch Gage And 13.00 Deactuation Point Maximum Pounds Per Square Inch Gage
- Contact Voltage Rating In Volts [CTZB]
- 28.0 Dc At Altitude Single Voltage
- Media For Which Designed [MEDA]
- Liquid
- Mounting Method [AXGY]
- Threaded Stud
- Nominal Thread Size [CQJX]
- 0.375 Inches All Threaded Stud
- Nominal Thread Size [CQJX]
- 0.375 Inches Single Pressure Connection
- Operating Temp Rating [AWTN]
- -65.0 Deg Fahrenheit Minimum And 250.0 Deg Fahrenheit Maximum
- Style Designator [STYL]
- Cylindrical
- Pressure Connector Type [CTZL]
- External Seat-Gasket Seal, Threaded External Single Connection
- Pressure Switch Type [AJZC]
- Gage
- Proof Pressure [CQJB]
- 120.00 Pounds Per Square Inch Gage
- Sensing Element Burst Pressure [CSCC]
- 300.00 Pounds Per Square Inch Gage
- Overall Diameter [ADAV]
- 2.000 Inches Maximum
- Overall Length [ABHP]
- 4.000 Inches Maximum
- Special Features [FEAT]
- Electrical Switch Inclosed In Waterproof O Ring Sealed Compartment
- Width Across Flats [ASDB]
- 0.870 Inches Minimum And 0.880 Inches Maximum
- Terminal Type [CSCF]
- Quick Disconnect, Male
- Thread Length [AASA]
- 0.630 Inches Maximum Single Threaded Stud
- Thread Quantity Per Inch [CMLP]
- 18 All Threaded Stud
- Thread Quantity Per Inch [CMLP]
- 18 Single Pressure Connection
- Thread Series Designator [THSD]
- Nptf All Threaded Stud
- Thread Series Designator [THSD]
- Nptf Single Pressure Connection
Weapon Systems (WSDC) 5930-01-021-1559
DLA Procurement Analysis 5930-01-021-1559
- Last Stock Position:
- 88 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5930-01-021-1559
Army
- Materiel Category and Inventory Manager:
- Q
- Electronics Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- JT
- Tanks
Recovery Vehicle, M51/M74/M88
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- EH
- ELECTRONIC COMPONENTS
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Material Identification:
- T
- Maintenance Float Secondary Non-depot Reparables
- Operational Test:
- No Special Procedures
NATO Stock Numbers Related to 5930-01-021-1559
5930-12-190-4070 5930-12-343-2126 5930-12-391-9496 5930-99-620-8050 5930-99-075-1414 5930-19-004-0058 5930-99-330-0705 5930-99-924-7271 5930-14-565-7572 5930-99-498-9183 5930-17-038-7905 5930-22-622-1770 5930-12-333-9873 5930-12-344-3407 5930-99-726-3859 5930-12-184-7171 5930-12-191-1062 5930-99-200-1480
Freight Information 5930-01-021-1559
5930-01-021-1559 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061300. A Sub NMFC of X. It has a NMFC Description of CIRCUIT BREAKER/SWITCH NOI. 5930-01-021-1559 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34410 which rates the freight between FCL and LCL. 5930-01-021-1559 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5930-01-021-1559 is not classified as a special type of cargo when transported by water. 5930-01-021-1559 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5930-01-021-1559
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- 4.0" H x -- W x -- L
- --
- --
- --
- Any Suitable Process
- 4.0" H x -- W x -- L
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- --
- --
- --
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Any Suitable Fiber Box
