5930-00-930-5016

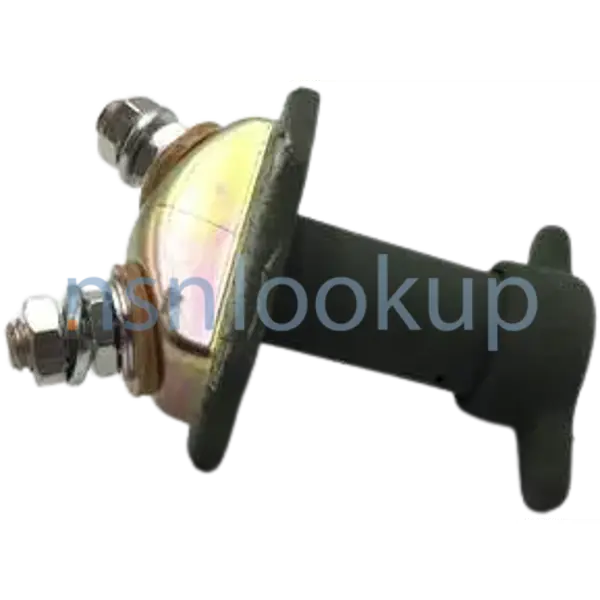

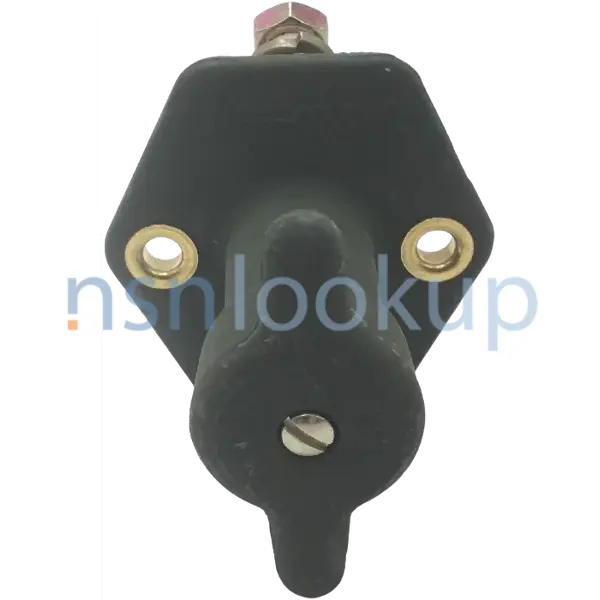

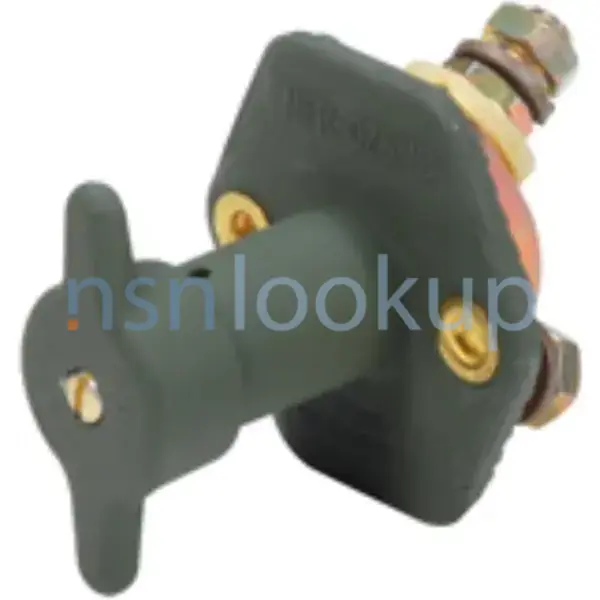

Pull Switch
5930009305016 009305016 MIL-DTL-13625/2 4813 152158005003 1996485 10500715 MIL-DTL-13625/2-1 MIL-S-13625/2-1 B96843 MS27200-1 MIL-S-13625/2 5930PL0944796
A switch which is actuated by a device, such as a pull rod or a chain which requires pulling for each action. Excludes LIGHT-SWITCH ASSEMBLY and SWITCH, SENSITIVE. View more Pull Switch
Managed by United States
NSN Created on 3 Jun 1966
Data Last Changed
August 2025
August 2025
NATO Update Count
61
61
NATO Data Quality
Marketplace 5930-00-930-5016
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 5930-00-930-5016 5+ Documents (More...)
MIL-DTL-13625/2 4813 152158005003 1996485 10500715 MIL-DTL-13625/2-1 MIL-S-13625/2-1 B96843 MS27200-
1 MIL-S-13625/2 5930PL0944796 A switch which is actuated by a device, such as a pull rod or a chain which
MS27200-1 SWITCH,PULL 1 EA NS Request Quotation Subscribe to View Vendor Details... 4813 SWITCH,PULL
1 MIL-S-13625/2 5930PL0944796 A switch which is actuated by a device, such as a pull rod or a chain which
MS27200-1 SWITCH,PULL 1 EA NS Request Quotation Subscribe to View Vendor Details... 4813 SWITCH,PULL
Pull Switch 5930009305016 009305016 for $1 a day Upgrade your Account Upgrade 5930-00-930-5016Pull
Switch5930009305016 009305016 MIL-DTL-13625 /2 4813 152158005003 10500715 1996485 MIL-DTL-13625/2-1
MIL-S-13625/2-1 B96843 MS27200-1 MIL-S-13625/ MIL-S-13625/2 SWITCH,PULL 100 EA NS Request Quotation Updated
Switch5930009305016 009305016 MIL-DTL-13625 /2 4813 152158005003 10500715 1996485 MIL-DTL-13625/2-1
MIL-S-13625/2-1 B96843 MS27200-1 MIL-S-13625/ MIL-S-13625/2 SWITCH,PULL 100 EA NS Request Quotation Updated
Pull Switch 5930009305016 009305016 for $1 a day Upgrade your Account Upgrade 5930-00-930-5016Pull
Switch5930009305016 009305016 MIL-DTL-13625 /2 4813 152158005003 10500715 1996485 MIL-DTL-13625/2-1
MIL-S-13625/2-1 B96843 MS27200-1 MIL-S-13625/ MIL-S-13625/2 SWITCH,PULL 100 EA NS Request Quotation Updated
Switch5930009305016 009305016 MIL-DTL-13625 /2 4813 152158005003 10500715 1996485 MIL-DTL-13625/2-1
MIL-S-13625/2-1 B96843 MS27200-1 MIL-S-13625/ MIL-S-13625/2 SWITCH,PULL 100 EA NS Request Quotation Updated
Wheel2530152028116 152028116 CDR. 13625 Backing Pad 5350997447175 997447175,13625 Updated Every Day 1996485
MIL-S -13625/1 MIL-S-13625/1-1 MS27199-1 A switch /1 /1-1 MIL-S-13625 -13625/1-1 MS27199-1 A switch 009305016
19964666200102MIL-DTL-13625/1-1MIL-S-13625/1MIL-S https//www.nsnlookup.com /fsg-59/fsc-5930/us 5930-00-930-5016
MIL-S -13625/1 MIL-S-13625/1-1 MS27199-1 A switch /1 /1-1 MIL-S-13625 -13625/1-1 MS27199-1 A switch 009305016
19964666200102MIL-DTL-13625/1-1MIL-S-13625/1MIL-S https//www.nsnlookup.com /fsg-59/fsc-5930/us 5930-00-930-5016
00-735-4063 Headlight Beam Selecting Switch 007354063 -0027 1996466 6200102 MIL-DTL-13625/1-1 MIL-S -13625/2
-1 B96843 MS27200-1 MIL-S /1 228C1-0027 1996466 6200102 MIL-DTL-13625/1-1 MIL-S-13625/1 MIL-S https
Pull Switch 5930009305016 009305016 for $1 a day Upgrade your Account Upgrade 5930-00-930-5016Pull
-1 B96843 MS27200-1 MIL-S /1 228C1-0027 1996466 6200102 MIL-DTL-13625/1-1 MIL-S-13625/1 MIL-S https
Pull Switch 5930009305016 009305016 for $1 a day Upgrade your Account Upgrade 5930-00-930-5016Pull
Restrictions 5930-00-930-5016
5930-00-930-5016 is a Pull Switch that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item contains Silver.
Import and Export 5930-00-930-5016
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5930-00-930-5016
- US Army (A918)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- A196
- Supplementary Receivers:
- AZBS
- US Air Force (FXGX)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXTX
- NASA (G860)
- Effective Date:
- 1 Apr 1991
- US Marine Corps (MC49)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- MC13
- US Navy (N9BN)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- GTHD
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Lithuania (WI01)
- Effective Date:
- 1 Jun 2001
- Poland (WP01)
- Effective Date:
- 1 May 2005
- Brazil (YA01)
- Effective Date:
- 1 Jan 2002
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Israel (YD01)
- Effective Date:
- 1 Aug 2016
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Kuwait (YK01)
- Effective Date:
- 1 Feb 2015
- Morocco (YP01)
- Effective Date:
- 1 Nov 2008
- Malaysia (YW01)
- Effective Date:
- 1 Mar 1997
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Belgium (ZB01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- France (ZF01)
- Effective Date:
- 8 Jun 2011
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- United Kingdom (ZK01)
- Effective Date:
- 1 Apr 1991
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Aug 1995
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 5930-00-930-5016
- Part Number
- Manufacturer
- Status
- MIL-DTL-13625/2-1
- Manufacturer
- 81349 - Military Specifications (Active)
- Definitive Standard
- Definitive Standard
- MIL-DTL-13625/2
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
- 4813
- 0ZSM8 - Ucom, Inc. (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- MIL-S-13625/2-1
- 81349 - Military Specifications (Active)
- Secondary Buy
- Secondary Buy
- B96843
- K0967 - Mbda Uk Ltd (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- MS27200-1
- 96906 - Military Standards (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- MIL-S-13625/2
- 81349 - Military Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 1996485
- 24617 - General Motors Corp (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 5930PL0944796
- 9009H - Jednolity Indeks Materialowy - (Active)
- NATO Reference
- NATO Reference
- 5930009305016
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
- 152158005003
- G1790 - Lukarelli Simo (Active)
- Related NATO Reproduction
- Related NATO Reproduction
- 1996485
- 16764 - General Motors Corp Delco Remy Div (Replaced)
- Advisory Reference
- Advisory Reference
- 10500715
- 56161 - General Dynamics Land Systems (Active)
- Advisory Reference
- Advisory Reference
Datasheet 5930-00-930-5016
- Characteristic
- Specifications
- FIIG
- Specifications
- A053A0
- Actuator Height [AFUS]
- 1.900 Inches Minimum And 2.350 Inches Maximum
- Actuator Inscription [AFVE]
- Pull-Turn Single Actuator
- Actuator Length [AFGK]
- 2.500 Inches Nominal
- Actuator Style [AFUQ]
- Rectangular
- Actuator Width [AFUT]
- 1.250 Inches Nominal
- Body Diameter [ABPM]
- 2.690 Inches Nominal
- Body Height [ADAU]
- 1.540 Inches Nominal
- Body Style [AAQL]
- Hole Mount
- Center To Center Distance Between Mounting Facilities Parallel To Diameter [AEBX]
- 1.765 Inches Nominal
- Contact Load Current Rating At Maximum Rated Voltage [CXQR]
- 300.000 Amperes Resistive Dc And 150.000 Amperes Inductive Dc
- Maximum Voltage Rating In Volts [AFXE]
- 28.0 Dc
- Mounting Method [AXGY]
- Unthreaded Hole
- Nonpile-Up Contact Arrangement [CRLD]
- 1 Pole, Single Throw, Normally Closed, Double Break, Momentary Action Single Switch Unit
- Inclosure Type [AKNA]
- Fully Inclosed
- Precious Material And Location [PMLC]
- Contacts Silver
- Unthreaded Mounting Hole Diameter [AEBV]
- 0.255 Inches Minimum And 0.275 Inches Maximum
- Specification/Standard Data [ZZZK]
- 81349-Mil-S-13625/2 Government Specification
- Terminal Type And Quantity [TTQY]
- 2 Threaded Stud
- Test Data Document [TEST]
- 81349-Mil-S-13625 Specification (Includes Engineering Type Bulletins, Brochures,Etc., That Reflect Specification Type Data In Specification Format; Excludes Commercial Catalogs, Industry Directories, And Similar Trade Publications, Reflecting General Type Data On Certain Environmental And Performance Requirements And Test Conditions That Are Shown As "Typical", "Average", "Nominal", Etc.).
Weapon Systems (WSDC) 5930-00-930-5016
DLA Procurement Analysis 5930-00-930-5016
- Last Stock Position:
- 2 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5930-00-930-5016
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2022
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- Jun 2021
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Jan 2021
- US Marine Corps (DM)
- EA
- Subscribe
- 1
- EA
- Mar 2020
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- US Marine Corps (DM)
- M
- 4
- Reversal Of Phrase Code A 2590-00-797-5947
- 4
Army
- Materiel Category and Inventory Manager:
- Q
- Electronics Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 2
- Non-Critical Repair Part
- Echelon Management:
- B2
- Material Identification:
- T
- Maintenance Float Secondary Non-depot Reparables
- Operational Test:
- No Special Procedures
Similar Supply Items to 5930-00-930-5016
Freight Information 5930-00-930-5016
5930-00-930-5016 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061360. A Sub NMFC of X. It has a NMFC Description of COILS/YOKES FOCUS/DEFLECTION TV. 5930-00-930-5016 is rated as class 85 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34430 which rates the freight between FCL and LCL. 5930-00-930-5016 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5930-00-930-5016 is not classified as a special type of cargo when transported by water. 5930-00-930-5016 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5930-00-930-5016
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- --
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- See Method of Preservation
- --
Procurement History 5930-00-930-5016 1 Records
Contracting Technical Data File (CTDF) 5930-00-930-5016 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
