5930-00-898-0500

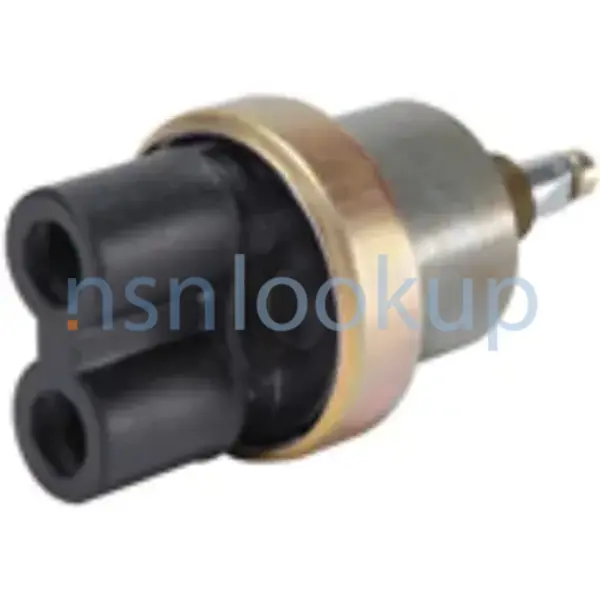

Rotary Switch
5930008980500 008980500 MIL-DTL-13623/1 109849A MIL-DTL-13623/1-1 1998079 69-8380700 429659 8380700 MIL-S-13623/1-1 MIL-DTL-13623 MS39060-1 MIL-S-13623
A switch actuated by a definite angular rotation of the switch shaft about its axis. For items having rated actuation travel and pressure characteristics, see SWITCH, SENSITIVE. Excludes RELAY, ROTARY; SWITCH, STEPPING; and SWITCH, TELEPHONE (as modified). View more Rotary Switch
Managed by United States
NSN Created on 30 Jan 1967
Data Last Changed
August 2025
August 2025
NATO Update Count
40
40
NATO Data Quality
Marketplace 5930-00-898-0500
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
109849A RQST NE
1998079 RQST NE
Updated Every Day 5930-00-898-0500 RQST NE
Updated Every Day 5930-00-898-0500 RQST
Updated Every Day 5930-00-898-0500 RQST NE
Related Documents 5930-00-898-0500 5+ Documents (More...)
MIL-DTL-13623/1 109849A MIL-DTL-13623/1-1 1998079 69-8380700 429659 8380700 MIL-S-13623/1-1 MIL-DTL-
13623 MS39060-1 MIL-S-13623 A switch actuated by a definite angular rotation of the switch shaft about
8380700 SWITCH,ROTARY RQST NS Request Quotation Subscribe to View Vendor Details... 5930-00-898-0500
13623 MS39060-1 MIL-S-13623 A switch actuated by a definite angular rotation of the switch shaft about
8380700 SWITCH,ROTARY RQST NS Request Quotation Subscribe to View Vendor Details... 5930-00-898-0500
69-8380700 8380700 429659 A switch actuated by a definite angular rotation of the switch shaft about
Rotary Switch 5930008980500 008980500 69-83807004296598380700 MIL-S-13623/1-1 MIL-DTL-13623 MS39060
fsc-1650/us 1650-00-719-6561 D Oil Filter Piston 1650007196561 007196561 69-83807004296598380700 MIL-S-13623
Rotary Switch 5930008980500 008980500 69-83807004296598380700 MIL-S-13623/1-1 MIL-DTL-13623 MS39060
fsc-1650/us 1650-00-719-6561 D Oil Filter Piston 1650007196561 007196561 69-83807004296598380700 MIL-S-13623
/1-3 A switch actuated by a definite angular rotation /1 109849A MIL-DTL-13623/1-1 1998079 69-8380700
429659 8380700 MIL-S-13623/1-1 MIL-DTL-13623 MS39060 https//www.nsnlookup.com 69-8380700 429659 8380700
MS39060-3 MIL-S-13623/1-3 A switch actuated by a definite angular rotation /1 109849A MIL-DTL-13623
429659 8380700 MIL-S-13623/1-1 MIL-DTL-13623 MS39060 https//www.nsnlookup.com 69-8380700 429659 8380700
MS39060-3 MIL-S-13623/1-3 A switch actuated by a definite angular rotation /1 109849A MIL-DTL-13623
MS39060-3 MIL-S-13623/1-3 A switch actuated by a definite angular rotation /1 109849A MIL-DTL-13623
/1-1 1998079 69-8380700 429659 8380700 MIL-S-13623/1-1 MIL-DTL-13623 MS39060 https//www.nsnlookup.com
69-8380700 429659 8380700 MIL-S-13623/1-1 MIL-DTL-13623 MS39060 https//www.nsnlookup.com /fsg-29/fsc
/1-1 1998079 69-8380700 429659 8380700 MIL-S-13623/1-1 MIL-DTL-13623 MS39060 https//www.nsnlookup.com
69-8380700 429659 8380700 MIL-S-13623/1-1 MIL-DTL-13623 MS39060 https//www.nsnlookup.com /fsg-29/fsc
109849A MIL-DTL-13623/1-1 1998079 69-8380700 429659 8380700 MIL-S-13623/1-1 MIL-DTL-13623 MS39060 https
/1-1 1998079 69-8380700 429659 8380700 MIL-S-13623/1-1 MIL-DTL-13623 MS39060 https//www.nsnlookup.com
8380700 MIL-S-13623/1-1 MIL-DTL-13623 MS39060 https https//www.nsnlookup.com /fsg-30/fsc-3020/de 3020
/1-1 1998079 69-8380700 429659 8380700 MIL-S-13623/1-1 MIL-DTL-13623 MS39060 https//www.nsnlookup.com
8380700 MIL-S-13623/1-1 MIL-DTL-13623 MS39060 https https//www.nsnlookup.com /fsg-30/fsc-3020/de 3020
Restrictions 5930-00-898-0500
5930-00-898-0500 is a Rotary Switch that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5930-00-898-0500
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5930-00-898-0500
- US Army (A918)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- A196
- Supplementary Receivers:
- AZCTBD
- US Air Force (FXGX)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXTX
- US Marine Corps (MC49)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- MC13
- US Navy (N9BN)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- GTHD
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Brazil (YA01)
- Effective Date:
- 1 Jan 2002
- Spain (YB01)
- Effective Date:
- 1 Feb 1994
- Israel (YD01)
- Effective Date:
- 1 Aug 2016
- Kuwait (YK01)
- Effective Date:
- 1 Feb 2015
- Morocco (YP01)
- Effective Date:
- 1 Nov 2008
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Aug 1995
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 5930-00-898-0500
- Part Number
- Manufacturer
- Status
- MIL-DTL-13623/1-1
- Manufacturer
- 81349 - Military Specifications (Active)
- Definitive Standard
- Definitive Standard
- MIL-DTL-13623/1
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
- MIL-S-13623/1-1
- 81349 - Military Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- MIL-DTL-13623
- 81349 - Military Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- MS39060-1
- 96906 - Military Standards (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 5930008980500
- SCY13 - E.C.A Etablissement (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- MIL-S-13623
- 81349 - Military Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 109849A
- 30076 - Hyster-Yale Group, Inc. (Active)
- Advisory Reference
- Advisory Reference
- 1998079
- 24617 - General Motors Corp (Active)
- Transferred
- Transferred
- 1998079
- 1LW55 - Borgwarner Pds (Anderson), L.L.C. (Active)
- Transferred
- Transferred
- 69-8380700
- 06007 - E-Tron Corp (Obsolete)
- Transferred
- Transferred
- 429659
- 77237 - Dana Off Highway Products, Llc (Active)
- Transferred
- Transferred
- 8380700
- 19207 - U S Army Tank Automotive Command (Active)
- Transferred
- Transferred
Datasheet 5930-00-898-0500
- Characteristic
- Specifications
- FIIG
- Specifications
- A052B0
- Contact Load Current Rating [CTHF]
- 10.0 Amperes Resistive Load Dc At Sea Level And 10.0 Amperes Inductive Load Dc At Sea Level And 5.0 Amperes Lamp Load Dc At Sea Level
- Contact Voltage Rating In Volts [CQMK]
- 28.0 Dc At Sea Level
- First Flat Length [ABNB]
- 0.370 Inches Nominal Single Actuator
- Hazardous Locations/Environmental Protection [ABFE]
- Waterproof
- Mounting Method [AXGY]
- Threaded Bushing Single Mounting Facility
- Nominal Thread Size [CQJX]
- 0.500 Inches Single Mounting Facility
- Nonturn Device Radius [AEFP]
- 0.625 Inches Nominal At 3:00 O'clock
- Nonturn Device Type [AFDC]
- Pin At 3:00 O'clock
- Individual Section Quantity [AFBH]
- 1
- Shaft Length [ABXF]
- 0.375 Inches Nominal Single Actuator
- Shaft Diameter [ABWV]
- 0.314 Inches Nominal Single Actuator
- Shaft Type [CRSJ]
- Round, Parallel Flatted Single Actuator
- Overall Diameter [ADAV]
- 1.750 Inches Nominal
- Overall Length [ABHP]
- 3.390 Inches Minimum And 3.520 Inches Maximum
- Width Between Flats [AATB]
- 0.217 Inches Nominal Single Actuator
- Specification/Standard Data [ZZZK]
- 96906-Ms39060 Government Standard
- Style Designator [STYL]
- Snap Or Line
- Switch Actuator Indexing Position Quantity [CRJH]
- 2 Single Actuator
- Switch Actuator Positioning Increment [CSLC]
- 45.0 Degrees Single Actuator
- Switch Actuator Stop Device Type [CTDN]
- Fixed Stop Single Actuator
- Switch Contact Basic Design [AJZE]
- Nonpile-Up Nonsymmetrical
- Terminal Type [CSCF]
- Pin
- Test Data Document [TEST]
- 81349-Mil-S-13623 Specification (Includes Engineering Type Bulletins, Brochures,Etc., That Reflect Specification Type Data In Specification Format; Excludes Commercial Catalogs, Industry Directories, And Similar Trade Publications, Reflecting General Type Data On Certain Environmental And Performance Requirements And Test Conditions That Are Shown As "Typical", "Average", "Nominal", Etc.).
- Thread Class [AAJD]
- 2A Single Mounting Facility
- Thread Length [AASA]
- 0.560 Inches Nominal Single Mounting Facility
- Thread Series Designator [THSD]
- Unf Single Mounting Facility
Weapon Systems (WSDC) 5930-00-898-0500
DLA Procurement Analysis 5930-00-898-0500
- Last Stock Position:
- 270 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5930-00-898-0500
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2022
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- Oct 2020
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- Apr 2020
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- US Marine Corps (DM)
- M
- 0
- Reversal Of Phrase Code Z 5930-00-791-1561
- 0
Army
- Materiel Category and Inventory Manager:
- Q
- Electronics Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Material Identification:
- K
- Reserved
- Operational Test:
- No Special Procedures
Similar Supply Items to 5930-00-898-0500
Freight Information 5930-00-898-0500
5930-00-898-0500 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061360. A Sub NMFC of X. It has a NMFC Description of COILS/YOKES FOCUS/DEFLECTION TV. 5930-00-898-0500 is rated as class 85 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34430 which rates the freight between FCL and LCL. 5930-00-898-0500 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5930-00-898-0500 is not classified as a special type of cargo when transported by water. 5930-00-898-0500 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5930-00-898-0500
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- --
- --
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- --
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- See Method of Preservation
- --
Contracting Technical Data File (CTDF) 5930-00-898-0500 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- L
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
