5930-00-841-1506

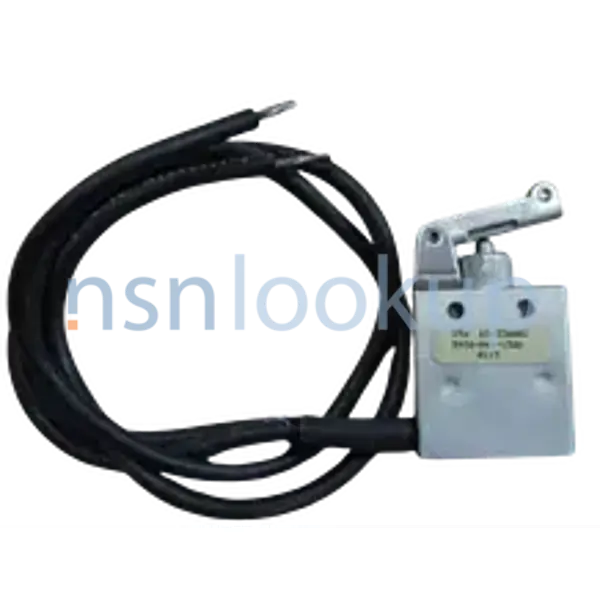

Sensitive Switch
5930008411506 008411506 65-330001 7748750 PL-100 6930008411506
A switch with a quick-acting mechanism actuated by a highly delicate tactile contact. Includes membrane switch. Excludes SWITCH, FLEXIBLE; SWITCH, PRESSURE; and SWITCH, THERMOSTATIC. View more Sensitive Switch
Managed by United States
NSN Created on 1 Jan 1962
Data Last Changed
July 2025
July 2025
NATO Update Count
43
43
NATO Data Quality
Marketplace 5930-00-841-1506
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 5930-00-841-1506 5+ Documents (More...)
65-330001 7748750 PL-100 6930008411506 A switch with a quick-acting mechanism actuated by a highly delicate
Photo 1/3 NSN 5930-00-841-1506 (Identification) 2/3 NSN 5930-00-841-1506 (Identification) 3/3 -
United States (US) 4. 5930-00-841-1506 Marketplace Restrictions Approved Sources Datasheet Management
Photo 1/3 NSN 5930-00-841-1506 (Identification) 2/3 NSN 5930-00-841-1506 (Identification) 3/3 -
United States (US) 4. 5930-00-841-1506 Marketplace Restrictions Approved Sources Datasheet Management
-99-109-8079 is a Sensitive Switch Similar Supply Items to 9999-99-109-8079 5930-00-044-4144 5930-00-841-1506
-99-611-4294 is a Sensitive Switch Similar Supply Items to 9999-99-611-4294 5930-00-044-4144 5930-00-841-1506
-99-724-1684 is a Sensitive Switch Similar Supply Items to 9999-99-724-1684 5930-00-044-4144 5930-00-841-1506
-99-610-8092 is a Sensitive Switch Similar Supply Items to 9999-99-610-8092 5930-00-044-4144 5930-00-841-1506
Restrictions 5930-00-841-1506
5930-00-841-1506 is a Sensitive Switch that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5930-00-841-1506
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5930-00-841-1506
- US Army (A918)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- A196
- Supplementary Receivers:
- AZCLBD
- US Air Force (FXGX)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXTX
- US Navy (N9BN)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- NIND
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Lithuania (WI01)
- Effective Date:
- 1 Jun 2001
- Brazil (YA01)
- Effective Date:
- 1 Jan 2002
- Spain (YB01)
- Effective Date:
- 1 Feb 1994
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Morocco (YP01)
- Effective Date:
- 1 Nov 2008
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Belgium (ZB01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- United Kingdom (ZK01)
- Effective Date:
- 10 Nov 2010
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Aug 1995
- Turkey (ZW01)
- Effective Date:
- 1 Aug 1993
- NATO Maintenance and Supply Agency (ZX01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5930-00-841-1506
- Part Number
- Manufacturer
- Status
- 7748750
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Source Control
- Source Control
- 65-330001
- 04426 - Illinois Tool Works Inc (Active)
- Primary Buy
- Primary Buy
- PL-100
- 91929 - Honeywell International Inc. (Active)
- Primary Buy
- Primary Buy
- PL-100
- 60198 - Saint Technologies Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 5930008411506
- SCY13 - E.C.A Etablissement (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 6930008411506
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
- 5930008411506
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
- 7748750
- T0720 - Fnss Savunma Sistemleri Anonim (Active)
- NATO Reproduction
- NATO Reproduction
Datasheet 5930-00-841-1506
- Characteristic
- Specifications
- FIIG
- Specifications
- A053A0
- Actuator Free Position Height [AFUU]
- 0.785 Inches Maximum
- Actuator Movement [CXQQ]
- 0.115 Pretravel Inches Maximum And 0.025 Overtravel Inches Minimum And 0.058 Differential Inches Maximum
- Actuator Length [AFGK]
- 0.531 Inches Minimum And 0.593 Inches Maximum
- Actuator Roller Diameter [AFUV]
- 0.190 Inches Nominal
- Actuator Style [AFUQ]
- Roller Arm
- Body Height [ADAU]
- 0.825 Inches Maximum
- Body Length [ADAQ]
- 0.850 Inches Nominal
- Body Style [AAQL]
- Hole Mounted
- Body Width [ADAT]
- 0.335 Inches Maximum
- Case Material [ADTV]
- Plastic
- Center To Center Distance Between Mounting Facilities Parallel To Length [ABKQ]
- 0.370 Inches Minimum And 0.380 Inches Maximum
- Contact Load Current Rating At Maximum Rated Voltage [CXQR]
- 7.500 Amperes Inductive Dc And 10.000 Amperes Resistive Ac
- Features Provided [CBBL]
- Actuator Seal
- Maximum Voltage Rating In Volts [AFXE]
- 250.0 Ac And 28.0 Dc
- Mounting Method [AXGY]
- Unthreaded Hole
- Nonpile-Up Contact Arrangement [CRLD]
- 1 Pole, Single Throw, Normally Open, Momentary Action Single Switch Unit
- Inclosure Type [AKNA]
- Hermetically Sealed
- Overall Height [ABKW]
- 1.610 Inches Maximum
- Overall Length [ABHP]
- 0.850 Inches Nominal
- Overall Width [ABMK]
- 0.335 Inches Maximum
- Unthreaded Mounting Hole Diameter [AEBV]
- 0.086 Inches Minimum And 0.090 Inches Maximum
- Switch Actuating Force [CSJN]
- 16.0 Ounces Maximum
- Switch Release Force [CRRM]
- 5.0 Ounces Minimum
- Terminal Type And Quantity [TTQY]
- 2 Wire Lead
