5930-00-823-2054
Sensitive Switch
5930008232054 008232054 79Z2453 33748 BZE6-2RN2-SPDT BZE6-2RN2 B408289-1 33-503933-1 8385319 4627 A26470-4 BZE-2RN2 65-1001-1 B1-1017-7 KSBP-T KSBPTS
A switch with a quick-acting mechanism actuated by a highly delicate tactile contact. Includes membrane switch. Excludes SWITCH, FLEXIBLE; SWITCH, PRESSURE; and SWITCH, THERMOSTATIC. View more Sensitive Switch
Managed by United States
NSN Created on 1 Jan 1962
Data Last Changed
November 2023
November 2023
NATO Update Count
45
45
NATO Data Quality
Marketplace 5930-00-823-2054
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Updated Every Day 5930-00-823-2054 RQST NE
Updated Every Day 5930-00-823-2054 RQST
Updated Every Day 5930-00-823-2054 RQST NE
Related Documents 5930-00-823-2054 5+ Documents (More...)
79Z2453 33748 BZE6-2RN2-SPDT BZE6-2RN2 B408289-1 33-503933-1 8385319 4627 A26470-4 BZE-2RN2 65-1001-
1 B1-1017-7 KSBP-T KSBPTS A switch with a quick-acting mechanism actuated by a highly delicate tactile
BZE6-2RN2 SWITCH 3 EA NS Request Quotation BZE6-2RN2 SWITCH 1 EA NS Request Quotation KSBP-T SWITCH 7
1 B1-1017-7 KSBP-T KSBPTS A switch with a quick-acting mechanism actuated by a highly delicate tactile
BZE6-2RN2 SWITCH 3 EA NS Request Quotation BZE6-2RN2 SWITCH 1 EA NS Request Quotation KSBP-T SWITCH 7
BZE6-2RN2 SWITCH,SENSITIVE 1 EA NS Request Quotation Subscribe to View Vendor Details... 4627 SWITCH,
BZE6-2RN2 SWITCH,SENSITIVE 2 EA NS Request Quotation 4627 SWITCH,SENSITIVE 1 EA NS Request Quotation
BZE-2RN2 SWITCH,SENSITIVE 1 EA NS Request Quotation Subscribe to View Vendor Details... 4627 SWITCH,SENSITIVE
BZE6-2RN2 SWITCH,SENSITIVE 2 EA NS Request Quotation 4627 SWITCH,SENSITIVE 1 EA NS Request Quotation
BZE-2RN2 SWITCH,SENSITIVE 1 EA NS Request Quotation Subscribe to View Vendor Details... 4627 SWITCH,SENSITIVE
BZE6-2RN2 SWITCH,SENSITIVE 1 EA NS Request Quotation Subscribe to View Vendor Details... 4627 SWITCH,
BZE-2RN2 SWITCH,SENSITIVE 2 EA NS Request Quotation 4627 SWITCH,SENSITIVE 3 EA NS Request Quotation Subscribe
... 4627 SWITCH,SENSITIVE 1 EA NS Request Quotation BZE6-2RN2 SWITCH,SENSITIVE 2 EA NS Request Quotation
BZE-2RN2 SWITCH,SENSITIVE 2 EA NS Request Quotation 4627 SWITCH,SENSITIVE 3 EA NS Request Quotation Subscribe
... 4627 SWITCH,SENSITIVE 1 EA NS Request Quotation BZE6-2RN2 SWITCH,SENSITIVE 2 EA NS Request Quotation
BZE6-2RN2 SWITCH,SENSITIVE 1 EA NS Request Quotation Subscribe to View Vendor Details... 4627 SWITCH,
BZE-2RN2 SWITCH,SENSITIVE 2 EA NS Request Quotation 4627 SWITCH,SENSITIVE 3 EA NS Request Quotation Subscribe
... 4627 SWITCH,SENSITIVE 1 EA NS Request Quotation BZE6-2RN2 SWITCH,SENSITIVE 2 EA NS Request Quotation
BZE-2RN2 SWITCH,SENSITIVE 2 EA NS Request Quotation 4627 SWITCH,SENSITIVE 3 EA NS Request Quotation Subscribe
... 4627 SWITCH,SENSITIVE 1 EA NS Request Quotation BZE6-2RN2 SWITCH,SENSITIVE 2 EA NS Request Quotation
BOOKMARK,CALENDAR Subscribe A206 BOOKMARK,CALENDAR https//www.nsnlookup.com /fsg-59/fsc-5930/us 5930-00-823-2054
Sensitive Switch 5930008232054 008232054 823-2054Sensitive Switch5930008232054 008232054 79Z2453
33748 BZE6-2RN2-SPDT BZE6-2RN2 B408289-1 33-503933 00-823-2054 Sensitive Switch 5930008232054008232054
Sensitive Switch 5930008232054 008232054 823-2054Sensitive Switch5930008232054 008232054 79Z2453
33748 BZE6-2RN2-SPDT BZE6-2RN2 B408289-1 33-503933 00-823-2054 Sensitive Switch 5930008232054008232054
Restrictions 5930-00-823-2054
5930-00-823-2054 is a Sensitive Switch that does not have a nuclear hardened feature, but does have another critical feature or features such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5930-00-823-2054
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5930-00-823-2054
- US Army (A918)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- A196
- Supplementary Receivers:
- AZCL
- US Coast Guard (C911)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- C007
- US Air Force (FXGX)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- FXTX
- NASA (G900)
- Effective Date:
- 1 Apr 1991
- US Navy (N9BN)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- GTKEHD
- Poland (WP01)
- Effective Date:
- 1 Jun 2011
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- France (ZF01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Jul 1997
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 5930-00-823-2054
- Part Number
- Manufacturer
- Status
- BZE6-2RN2
- Manufacturer
- 91929 - Honeywell International Inc. (Active)
- Primary Buy
- Primary Buy
- B408289-1
- 80020 - Naval Air Warfare Center Aircraft (Active)
- Secondary Buy
- Secondary Buy
- 33-503933-1
- 04655 - General Dynamics Mission Systems, (Active)
- Secondary Buy
- Secondary Buy
- 8385319
- 19204 - Army, United States Department Of (Active)
- Secondary Buy
- Secondary Buy
- 4627
- 4W146 - Smart Machines, Inc. (Active)
- Secondary Buy
- Secondary Buy
- A26470-4
- 46717 - Pettibone Llc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- BZE-2RN2
- 91929 - Honeywell International Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 4627
- 05690 - Barker & Williamson (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 65-1001-1
- 02031 - Entwistle Co The Van Zelm Div (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- B1-1017-7
- 02031 - Entwistle Co The Van Zelm Div (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- KSBP-T
- 0CY71 - C And K Components Inc Unimax Div (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- KSBPTS
- 0CY71 - C And K Components Inc Unimax Div (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- KSBP-T
- 80207 - C And K Components Inc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 79Z2453
- 0FNE7 - Ppm Cranes Inc (Active)
- Advisory Reference
- Advisory Reference
- 33748
- 59500 - Tennant Company (Active)
- Advisory Reference
- Advisory Reference
- BZE6-2RN2-SPDT
- 91929 - Honeywell International Inc. (Active)
- Advisory Reference
- Advisory Reference
Datasheet 5930-00-823-2054
- Characteristic
- Specifications
- FIIG
- Specifications
- A053A0
- End Item Identification [AGAV]
- C-130 Hercules Aircraft, Support Equipment C-5, F-106, B-52 Aircraft.
- Actuator Free Position Height [AFUU]
- 2.850 Inches Maximum
- Actuator Movement [CXQQ]
- 0.188 Pretravel Inches Maximum And 0.219 Overtravel Inches Minimum And 0.006 Differential Inches Nominal
- Actuator Length [AFGK]
- 1.570 Inches Nominal
- Actuator Roller Diameter [AFUV]
- 0.720 Inches Minimum And 0.780 Inches Maximum
- Actuator Roller Width [AFUW]
- 0.282 Inches Minimum And 0.342 Inches Maximum

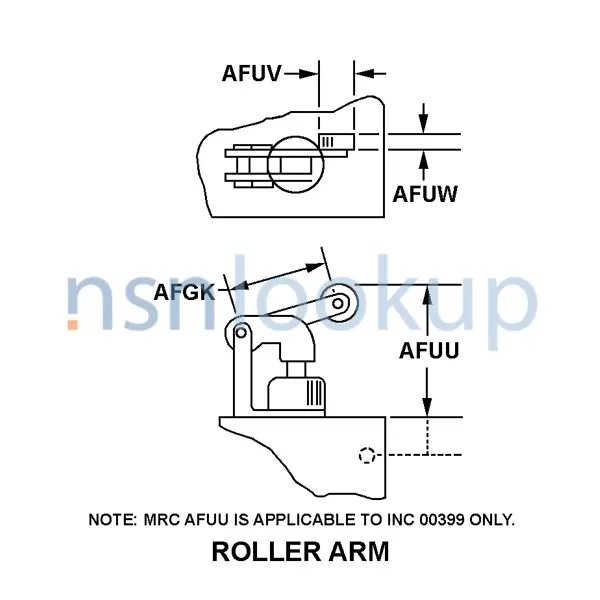

- Actuator Style [AFUQ]
- Roller Arm
- Body Style [AAQL]
- Hole Mounted
- Case Material [ADTV]
- Plastic
- Center To Center Distance Between Housing Mounting Facilities Parallel To Length [AFWH]
- 1.000 Inches Nominal
- Contact Load Current Rating At Maximum Rated Voltage [CXQR]
- 250.000 Milliamperes Resistive Dc And 2.000 Amperes Resistive Ac
- Criticality Code Justification [CRTL]
- Feat
- Hazardous Locations/Environmental Protection [ABFE]
- Dustproof
- Housing Height [AFWC]
- 1.720 Inches Minimum And 1.780 Inches Maximum
- Housing Length [AFWD]
- 2.740 Inches Nominal
- Housing Width [AFWE]
- 1.000 Inches Nominal
- Maximum Voltage Rating In Volts [AFXE]
- 600.0 Ac And 250.0 Dc
- Mounting Method [AXGY]
- Unthreaded Hole
- Nominal Thread Size [CQJX]
- 0.138 Inches
- Nonpile-Up Contact Arrangement [CRLD]
- 1 Pole, Double Throw, One Position Momentary Single Switch Unit
- Inclosure Type [AKNA]
- Fully Inclosed
- Overall Height [ABKW]
- 3.875 Inches Nominal
- Overall Length [ABHP]
- 3.125 Inches Maximum
- Overall Width [ABMK]
- 1.125 Inches Maximum
- Special Features [FEAT]
- Weapon System Essential
- Switch Actuating Force [CSJN]
- 10.0 Ounces Minimum And 20.0 Ounces Maximum
- Switch Release Force [CRRM]
- 6.0 Ounces Minimum
- Terminal Type And Quantity [TTQY]
- 3 Screw
- Thread Series Designator [THSD]
- Unc
- Thread Quantity Per Inch [CMLP]
- 32
Weapon Systems (WSDC) 5930-00-823-2054
DLA Procurement Analysis 5930-00-823-2054
- Last Stock Position:
- 25 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5930-00-823-2054
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2022
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- Jan 2022
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2020
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Apr 2020
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
Army
- Materiel Category and Inventory Manager:
- Q
- Electronics Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5930-00-823-2054
Freight Information 5930-00-823-2054
5930-00-823-2054 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061360. A Sub NMFC of X. It has a NMFC Description of COILS/YOKES FOCUS/DEFLECTION TV. 5930-00-823-2054 is rated as class 85 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34430 which rates the freight between FCL and LCL. 5930-00-823-2054 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5930-00-823-2054 is not classified as a special type of cargo when transported by water. 5930-00-823-2054 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5930-00-823-2054
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- 4.3" H x 3.8" W x 1.5" L
- --
- --
- --
- --
- 4.3" H x 3.8" W x 1.5" L
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- See Method of Preservation
- --
Procurement History 5930-00-823-2054 2 Records
Contracting Technical Data File (CTDF) 5930-00-823-2054 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
