5930-00-815-2454
Foot Switch
5930008152454 008152454 SP-516-24 L2SA
A switch with a pedal which is actuated by the foot. For items not provided with a pedal, see switch (as modified). Excludes SWITCH, BEAM SELECTING, HEADLIGHT. View more Foot Switch
May 2023
14
Marketplace 5930-00-815-2454
Request a Quotation from participating marketplace vendors
Related Documents 5930-00-815-2454 4+ Documents (More...)
Day 5930-00-815-2454 RQST Updated Every Day 5930-00-815-2454 RQST NE Related Documents 5930-00-815-2454
Day 5930-00-815-2454 RQST Updated Every Day 5930-00-815-2454 RQST NE Related Documents 5930-00-815-2454
/fsg-59/fsc-5985/no
044242 GPS L1/L2SA Antenna 5985251522890 251522890,044242 044242 GPS L1/L2SA An item consisting of a
fsc-5940/de 5940-12-338-4309 Terminal Board 5940123384309 123384309 251522890,044242 044242 GPS L1/L2SA
/fsg-59/fsc-5940/de
-338-4309 Terminal Board 5940123384309123384309 https//www.nsnlookup.com /fsg-59/fsc-5930/us 5930-00-815-2454
Foot Switch 5930008152454 008152454,SP-516-24 044242 GPS L1/L2SA a system of conductors specifically
4309Terminal Board5940123384309 123384309 0442420000 4008190002923 AST 3 6.3/2.8 KRG 044242 GPS L1/L2SA
Foot Switch 5930008152454 008152454,SP-516-24 251522890,044242 JavaScript in your web browser .
Restrictions 5930-00-815-2454
5930-00-815-2454 is a Foot Switch that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5930-00-815-2454
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5930-00-815-2454
- US Army (A918)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- A196
- Brazil (YA01)
- Effective Date:
- 1 Oct 2000
- Malaysia (YW01)
- Effective Date:
- 1 Jul 1994
- Australia (ZA01)
- Effective Date:
- 30 Mar 2006
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5930-00-815-2454
- Part Number
- Manufacturer
- Status
- SP-516-24
- Manufacturer
- 97918 - Linemaster Switch Corporation (Active)
- Primary Buy
- Primary Buy
- L2SA
- 97918 - Linemaster Switch Corporation (Active)
- Secondary Buy
- Secondary Buy
Datasheet 5930-00-815-2454
- Characteristic
- Specifications
- FIIG
- Specifications
- A053A0

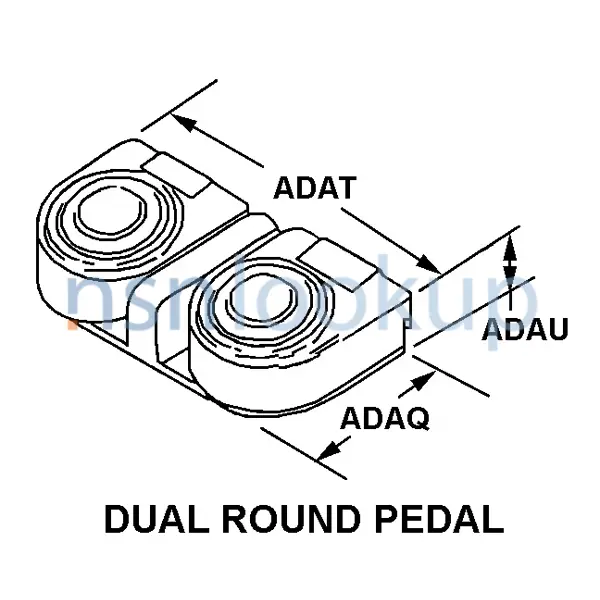

- Body Height [ADAU]
- 1.125 Inches Nominal
- Body Length [ADAQ]
- 5.000 Inches Nominal
- Body Style [AAQL]
- Dual Round Pedal
- Body Width [ADAT]
- 2.500 Inches Nominal
- Contact Load Current Rating At Maximum Rated Voltage [CXQR]
- 15.000 Amperes Resistive Ac
- Maximum Voltage Rating In Volts [AFXE]
- 250.0 Ac
- Mounting Method [AXGY]
- Base
- Nonpile-Up Contact Arrangement [CRLD]
- 1 Pole, Double Throw, Two Positions Momentary Single Switch Unit
- Terminal Type And Quantity [TTQY]
- 3 Screw
DLA Procurement Analysis 5930-00-815-2454
Management Data 5930-00-815-2454
Army
- Materiel Category and Inventory Manager:
- Q
- Electronics Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
NATO Stock Numbers Related to 5930-00-815-2454
Freight Information 5930-00-815-2454
5930-00-815-2454 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061360. A Sub NMFC of X. It has a NMFC Description of COILS/YOKES FOCUS/DEFLECTION TV. 5930-00-815-2454 is rated as class 85 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34430 which rates the freight between FCL and LCL. 5930-00-815-2454 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 723 for ocean manifesting and military sealift. 5930-00-815-2454 is not classified as a special type of cargo when transported by water. 5930-00-815-2454 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5930-00-815-2454
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- A-A-1898, Grade II, Water Resistant Cellulosic Cushioning
- --
- PPP-B-566 or PPP-B-676, Folding or Setup Box
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Any Suitable Fiber Box
Contracting Technical Data File (CTDF) 5930-00-815-2454 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
