5930-00-808-7418
Toggle Switch
5930008087418 008087418 MIL-DTL-3950 8784K6 MS25072-22 MILS3950
A switch which is externally actuated by a lever and whose contacts open and close with an instantaneous (snap) action; includes items having one or more momentary positions. Includes switches (snap action) which use mercury to bridge contacts, and assemblages of complete switches (snap action) having common actuators. Excludes SWITCH, LEVER; SWITCH, ROTARY; SWITCH, KNIFE; SWITCH, SENSITIVE; and SWITCH, BOX. View more Toggle Switch
January 2023
32
Marketplace 5930-00-808-7418
Request a Quotation from participating marketplace vendors
Updated Every Day Updated Every Day
Updated Every Day Related Documents 5930-00-808-7418 5+ Documents (More...)
(Identification) 1/2 NSN 5930-00-808-7418 (Identification) 2/2 - - 1.
MS25072-22 SWITCH,TOGGLE 161 EA NS Request Quotation MS25072-22 SWITCH,TOGGLE 161 EA NS Request Quotation
MIL-S-3950 SWITCH,TOGGLE 11 EA NS Request Quotation MILS3950 SWITCH,TOGGLE 1 EA NS Request Quotation
SWITCH,TOGGLE 3 EA NS Request Quotation MILS3950 SWITCH,TOGGLE 1 EA NS Request Quotation MIL-S-
MIL-DTL/3950 SWITCH,TOGGLE 3 EA NS Request Quotation Subscribe to View Vendor Details...
MIL-DTL-3950 SWITCH,TOGGLE 15 EA NS Request Quotation Subscribe to View Vendor Details...
SWITCH,TOGGLE https//www.nsnlookup.com /fsg-59/fsc-5930/us 5930-00-808-7418 Toggle Switch 5930008087418
008087418 8784K6 MS25072-22 MILS3950 A switch which is externally actuated by a lever and whose contacts
MILS3950 SWITCH,TOGGLE 1 EA NS Request Quotation MIL-S-3950 SWITCH,TOGGLE 11 EA NS Request Quotation
-81349 A switch which is externally actuated by a lever and whose contacts MIL-DTL/3950 SWITCH,TOGGLE
Restrictions 5930-00-808-7418
5930-00-808-7418 is a Toggle Switch that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5930-00-808-7418
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5930-00-808-7418
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Thailand (YY01)
- Effective Date:
- 1 Feb 2015
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Jul 1997
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 5930-00-808-7418
- Part Number
- Manufacturer
- Status
- MS25072-22
- Manufacturer
- 96906 - Military Standards (Active)
- Definitive Standard
- Definitive Standard
- MIL-DTL-3950
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
- 8784K6
- 81640 - Safran Power Usa, Llc (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 8784K6
- 15605 - Eaton Corp (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- MILS3950
- 81349 - Military Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5930-00-808-7418
- Characteristic
- Specifications
- FIIG
- Specifications
- A053A0
- Actuator Height [AFUS]
- 0.844 Inches Minimum And 0.906 Inches Maximum
- Actuator Diameter [AFUR]
- 0.240 Inches Nominal
- Actuator Position-Action Relationship [AFUX]
- Up Position Maintained And Down Position Maintained
- Actuator Style [AFUQ]
- Round
- Body Height [ADAU]
- 2.091 Inches Nominal
- Body Length [ADAQ]
- 2.156 Inches Maximum
- Body Style [AAQL]
- Hole Mount
- Body Width [ADAT]
- 1.531 Inches Maximum

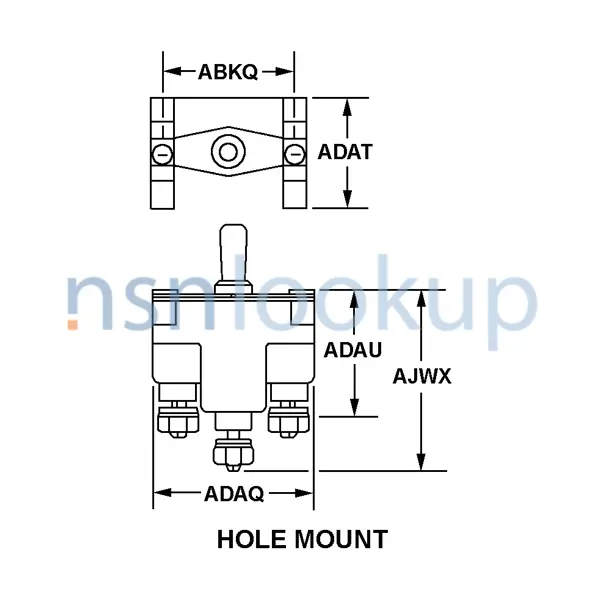

- Center To Center Distance Between Mounting Facilities Parallel To Length [ABKQ]
- 1.797 Inches Minimum And 1.827 Inches Maximum
- Contact Load Current Rating At Maximum Rated Voltage [CXQR]
- 80.000 Amperes Resistive Dc And 30.000 Amperes Inductive Dc And 7.000 Amperes Lamp Dc And 30.000 Amperes Resistive Ac And 20.000 Amperes Inductive Ac And 7.500 Amperes Lamp Ac
- Maximum Voltage Rating In Volts [AFXE]
- 115.0 Ac And 28.0 Dc
- Nonpile-Up Contact Arrangement [CRLD]
- 1 Pole, Single Throw, Both Positions Maintained Single Switch Unit
- Inclosure Type [AKNA]
- Uninclosed
- Terminal Type And Quantity [TTQY]
- 3 Screw
