5930-00-771-8119

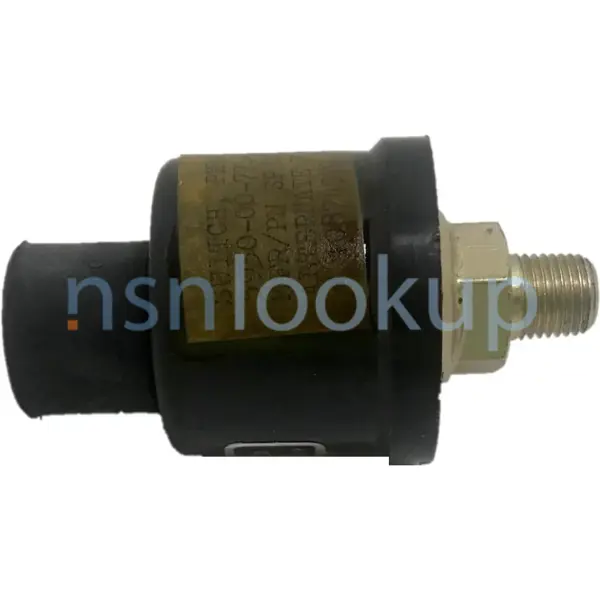

Pressure Switch
5930007718119 007718119 10874979-1 SP-1C-4R/P60 10874979 PS-6001 SP1C-4P SP-1C-4R/P60/85814 A3051S 5930PL0898083 2930007718119
A switch which is actuated by changes in pressure of any gas or liquid or by changes in a vacuum acting upon its sensing element. Excludes BAROSWITCH; SWITCH, PRESSURE-THERMOSTATIC; and SWITCH, SENSITIVE. View more Pressure Switch
Managed by United States
NSN Created on 1 Jan 1962
Data Last Changed
December 2023
December 2023
NATO Update Count
60
60
NATO Data Quality
Marketplace 5930-00-771-8119
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
A3051S SWITCH,PRESSURE 1 EA NS
10874979 SWITCH,PRESSURE 1 EA NS
PS-6001 SWITCH,PRESSURE 1 EA NS
SP-1C-4R/P60 SWITCH,PRESSURE 1 EA NS
Updated Every Day 5930-00-771-8119 RQST NE
Updated Every Day 5930-00-771-8119 RQST
Updated Every Day 5930-00-771-8119 RQST NE
Related Documents 5930-00-771-8119 2+ Documents (More...)
10874979-1 SP-1C-4R/P60 10874979 PS-6001 SP1C-4P SP-1C-4R/P60/85814 A3051S 5930PL0898083 2930007718119
A3051S SWITCH,PRESSURE 1 EA NS Request Quotation 10874979 SWITCH,PRESSURE 1 EA NS Request Quotation PS
A3051S SWITCH,PRESSURE 6 EA NS Request Quotation Subscribe to View Vendor Details... 5930-00-771-8119
A3051S SWITCH,PRESSURE 1 EA NS Request Quotation 10874979 SWITCH,PRESSURE 1 EA NS Request Quotation PS
A3051S SWITCH,PRESSURE 6 EA NS Request Quotation Subscribe to View Vendor Details... 5930-00-771-8119
SP-1C-4R/P60 SWITCH,PRESSURE 1 EA NS Request Quotation Subscribe to View Vendor Details... 5930-01-518
https//www.nsnlookup.com /fsg-59/fsc-5930/us 5930 https//www.nsnlookup.com /fsg-59/fsc-5930/us 5930-00-771-8119
Pressure Switch 5930007718119 007718119 Subscribe to View Vendor Details... 5930-00-771-8119 https
https//www.nsnlookup.com /fsg-59/fsc-5930/us 5930 https//www.nsnlookup.com /fsg-59/fsc-5930/us 5930-00-771-8119
Pressure Switch 5930007718119 007718119 Subscribe to View Vendor Details... 5930-00-771-8119 https
Restrictions 5930-00-771-8119
5930-00-771-8119 is a Pressure Switch that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5930-00-771-8119
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5930-00-771-8119
- US Army (A918)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- A196
- Supplementary Receivers:
- AZCLBD
- US Air Force (FXGX)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXTX
- US Marine Corps (MC49)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- MC13
- US Navy (N9BN)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- NIND
- Supplementary Collaborators:
- HD
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Lithuania (WI01)
- Effective Date:
- 1 Jun 2001
- Poland (WP01)
- Effective Date:
- 1 May 2005
- Brazil (YA01)
- Effective Date:
- 1 Jan 2002
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Israel (YD01)
- Effective Date:
- 1 Aug 2016
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Morocco (YP01)
- Effective Date:
- 1 Jan 2017
- Malaysia (YW01)
- Effective Date:
- 1 Mar 1997
- Belgium (ZB01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- United Kingdom (ZK01)
- Effective Date:
- 1 Nov 2010
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Feb 2002
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Aug 1995
- Turkey (ZW01)
- Effective Date:
- 1 Aug 1993
- NATO Maintenance and Supply Agency (ZX01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5930-00-771-8119
- Part Number
- Manufacturer
- Status
- 10874979-1
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
- 10874979
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
- SP-1C-4R/P60
- 85814 - Nason Company, The Inc (Active)
- Secondary Buy
- Secondary Buy
- PS-6001
- 09527 - Faria Beede Instruments, Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- SP1C-4P
- 85814 - Nason Company, The Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- SP1C-4P
- 19207 - U S Army Tank Automotive Command (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- SP-1C-4R/P60/85814
- 85814 - Nason Company, The Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- A3051S
- 71500 - Acf Industries Inc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 5930007718119
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
- 5930PL0898083
- 9009H - Jednolity Indeks Materialowy - (Active)
- NATO Reference
- NATO Reference
- 2930007718119
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
- 10874979
- T0720 - Fnss Savunma Sistemleri Anonim (Active)
- NATO Reproduction
- NATO Reproduction
Datasheet 5930-00-771-8119
- Characteristic
- Specifications
- FIIG
- Specifications
- A048B0
- Body Diameter [ABPM]
- 1.625 Inches Nominal
- Body Length [ADAQ]
- 1.688 Inches Nominal
- Contact Action Stimulus [CQGB]
- Increase
- Contact Adjustability [CTYC]
- Deactuation Point Not Adjustable And Actuation Point Not Adjustable
- Contact Load Current Rating [CTHF]
- 2.5 Amperes Inductive Load Second Voltage
- Contact Load Current Rating [CTHF]
- 5.0 Amperes Resistive Load First Voltage
- Contact Stimulus Rating [CTYX]
- 3.00 Differential Point Nominal Pounds Per Square Inch
- Contact Voltage Rating In Volts [CTZB]
- 28.0 Dc At Sea Level Single Voltage
- Hazardous Locations/Environmental Protection [ABFE]
- Dustproof
- Media For Which Designed [MEDA]
- Liquid
- Mounting Method [AXGY]
- Inlet Connection And Threaded Hole
- Nominal Thread Size [CQJX]
- 0.250 Inches Single Pressure Connection
- Nonpile-Up Contact Arrangement [CRLD]
- 1 Pole, Double Throw, One Position Momentary
- Outside Diameter [ABKV]
- 0.250 Inches Nominal Single Connection
- Style Designator [STYL]
- Cylindrical
- Pressure Connector Type [CTZL]
- Plain, Threaded External Single Connection
- Pressure Switch Type [AJZC]
- Gage
- Proof Pressure [CQJB]
- 150.00 Pounds Per Square Inch
- Overall Diameter [ADAV]
- 2.031 Inches Nominal
- Overall Length [ABHP]
- 3.438 Inches Nominal
- Terminal Type [CSCF]
- Snap-On, Male
- Thread Length [AASA]
- 0.875 Inches Nominal Single Pressure Connection
- Thread Series Designator [THSD]
- Nptf Single Pressure Connection
- Thread Quantity Per Inch [CMLP]
- 18 Single Pressure Connection
Weapon Systems (WSDC) 5930-00-771-8119
DLA Procurement Analysis 5930-00-771-8119
- Last Stock Position:
- 344 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5930-00-771-8119
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2022
- US Marine Corps (DM)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- Oct 2020
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Nov 2019
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- Oct 2019
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- US Marine Corps (DM)
- M
- 4
- Reversal Of Phrase Code A 5930-01-518-9829
- 4
Army
- Materiel Category and Inventory Manager:
- Q
- Electronics Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Material Identification:
- K
- Reserved
- Operational Test:
- No Special Procedures
NATO Stock Numbers Related to 5930-00-771-8119
5930-12-190-4070 5930-12-343-2126 5930-12-391-9496 5930-99-620-8050 5930-99-075-1414 5930-19-004-0058 5930-99-330-0705 5930-99-924-7271 5930-14-565-7572 5930-99-498-9183 5930-17-038-7905 5930-22-622-1770 5930-12-333-9873 5930-12-344-3407 5930-99-726-3859 5930-12-184-7171 5930-12-191-1062 5930-99-200-1480
Freight Information 5930-00-771-8119
5930-00-771-8119 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061360. A Sub NMFC of X. It has a NMFC Description of COILS/YOKES FOCUS/DEFLECTION TV. 5930-00-771-8119 is rated as class 85 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34430 which rates the freight between FCL and LCL. 5930-00-771-8119 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5930-00-771-8119 is not classified as a special type of cargo when transported by water. 5930-00-771-8119 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5930-00-771-8119
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- --
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- See Method of Preservation
- --
Procurement History 5930-00-771-8119 19 Records
- Contract
- Date
- CAGE
- Quantity
- Net Price
- Std Price
- CAGE
- SPE7M123F6711
- 29 Aug 2023
- Subscribe
- 549
- Subscribe
- Subscribe
- Subscribe
- SPE7M123F6712
- 29 Aug 2023
- Subscribe
- 1156
- Subscribe
- Subscribe
- Subscribe
- SPE7M123F6711
- 29 Aug 2023
- Subscribe
- 549
- Subscribe
- Subscribe
- Subscribe
- SPE7M123F6712
- 29 Aug 2023
- Subscribe
- 1156
- Subscribe
- Subscribe
- Subscribe
- SPE7M123F5577
- 13 Jun 2023
- Subscribe
- 337
- Subscribe
- Subscribe
- Subscribe
- SPE7M123F5577
- 13 Jun 2023
- Subscribe
- 337
- Subscribe
- Subscribe
- Subscribe
- SPE7M123F2868
- 10 Jan 2023
- Subscribe
- 337
- Subscribe
- Subscribe
- Subscribe
- SPE7M123F2868
- 10 Jan 2023
- Subscribe
- 337
- Subscribe
- Subscribe
- Subscribe
- SPE7M819P0253
- 23 Oct 2018
- Subscribe
- 1289
- Subscribe
- Subscribe
- Subscribe
- SPE7M818P4016
- 28 Sep 2018
- Subscribe
- 5028
- Subscribe
- Subscribe
- Subscribe
- SPE7M016V9619
- 21 Apr 2016
- Subscribe
- 1403
- Subscribe
- Subscribe
- Subscribe
- SPE7M015VC723
- 25 Aug 2015
- Subscribe
- 2486
- Subscribe
- Subscribe
- Subscribe
- SPE7M815V0515
- 05 Jan 2015
- Subscribe
- 1283
- Subscribe
- Subscribe
- Subscribe
- SPE7M814M3668
- 21 Aug 2014
- Subscribe
- 2084
- Subscribe
- Subscribe
- Subscribe
- SPE7M814V0187
- 21 Oct 2013
- Subscribe
- 1660
- Subscribe
- Subscribe
- Subscribe
- SPE7M813V1035
- 24 Sep 2013
- Subscribe
- 962
- Subscribe
- Subscribe
- Subscribe
- SPE7M813M0638
- 19 Sep 2013
- Subscribe
- 1070
- Subscribe
- Subscribe
- Subscribe
- SPE7M813V0658
- 15 Aug 2013
- Subscribe
- 1542
- Subscribe
- Subscribe
- Subscribe
- SPM7M813M3564
- 08 Apr 2013
- Subscribe
- 718
- Subscribe
- Subscribe
- Subscribe
Contracting Technical Data File (CTDF) 5930-00-771-8119 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
