5930-00-636-3917
Mercury Switch
5930006363917 006363917 P3435 AS502B2 442960-1 423958
A switch in which a mercury pool is used to bridge fixed contacts when their inclosing sealed capsule is tilted. Do not use if switch has an actuator, such as lever, push button, toggle, and the like. See SWITCH (as modified). For items in which a contact may be moved into a mercury pool by a magnetic field, see SWITCH, REED. View more Mercury Switch
May 2023
13
Marketplace 5930-00-636-3917
Request a Quotation from participating marketplace vendors
Related Documents 5930-00-636-3917 5+ Documents (More...)
P3435 SWITCH,MERCURY 94 EA NS Request Quotation Updated Every Day 5930-00-636-3917 RQST NE Updated Every
Day 5930-00-636-3917 RQST Updated Every Day 5930-00-636-3917 RQST NE Related Documents 5930-00-636-3917
P3435 AS502B2 442960-1 423958 https//www.nsnlookup.com /fsg-59/fsc-5930/us 5930-00-636-3917 Mercury
Switch 5930006363917 006363917,P3435 your Account Upgrade 5930-00-636-3917Mercury Switch5930006363917
JavaScript in your web browser . 5325-14-010-0857Nonmetallic Grommet5325140100857 140100857 13153-977 423958
Mercury Switch 5930006363917 006363917,P3435 your Account Upgrade 5930-00-636-3917Mercury Switch5930006363917
Mercury Switch 5930006363917 006363917,P3435 P3435 SWITCH,MERCURY 94 EA NS Request Quotation Updated
Every Day 5930-00-636-3917 RQST NE Updated Every P3435AS502B2442960-1423958 A switch in which a mercury
Mercury Switch 5930006363917 006363917,P3435 P3435 SWITCH,MERCURY 94 EA NS Request Quotation Updated
Every Day 5930-00-636-3917 RQST NE Updated Every P3435AS502B2442960-1423958 A switch in which a mercury
Restrictions 5930-00-636-3917
5930-00-636-3917 is a Mercury Switch that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item has been determined to be hazardous and information is contained in the Hazardous Materials Information Resource System (HMIRS). The precious metals content of this item is unknown.
Import and Export 5930-00-636-3917
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5930-00-636-3917
- US Air Force (FXGX)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- FXTX
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 5930-00-636-3917
- Part Number
- Manufacturer
- Status
- P3435
- Manufacturer
- 04597 - Projects Unlimited Inc (Active)
- Primary Buy
- Primary Buy
- AS502B2
- 91929 - Honeywell International Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 442960-1
- 94580 - Honeywell International Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 423958
- 94580 - Honeywell International Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5930-00-636-3917
- Characteristic
- Specifications
- FIIG
- Specifications
- A053A0
- Nonpile-Up Contact Arrangement [CRLD]
- 1 Pole, Double Throw, Both Positions Maintained Single Switch Unit
- Contact Load Current Rating At Maximum Rated Voltage [CXQR]
- 250.000 Milliamperes Resistive Ac

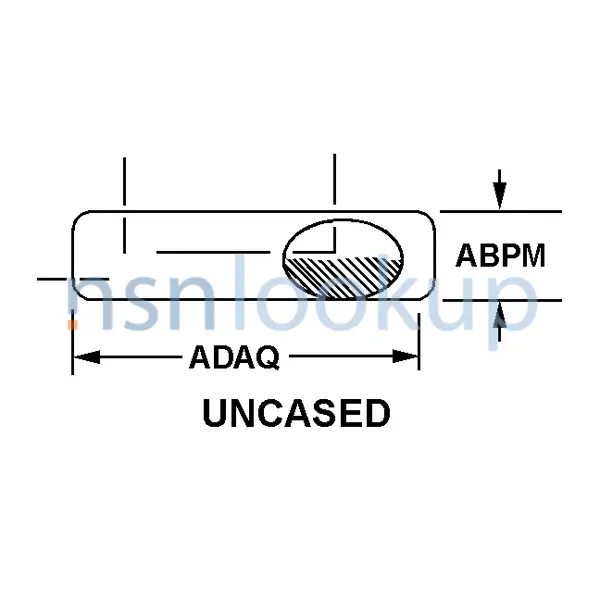

- Body Style [AAQL]
- Uncased
- Body Diameter [ABPM]
- 0.395 Inches Nominal
- Body Length [ADAQ]
- 1.060 Inches Nominal
- Overall Length [ABHP]
- 1.060 Inches Nominal
- Overall Width [ABMK]
- 0.395 Inches Nominal
- Overall Height [ABKW]
- 0.395 Inches Nominal
- Terminal Type And Quantity [TTQY]
- 3 Wire Lead
- Switch Actuation Differential Angle [CQPW]
- 5.0 Degrees Nominal
DLA Procurement Analysis 5930-00-636-3917
Management Data 5930-00-636-3917
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- EH
- ELECTRONIC COMPONENTS
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Similar Supply Items to 5930-00-636-3917
Freight Information 5930-00-636-3917
5930-00-636-3917 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061300. A Sub NMFC of X. It has a NMFC Description of CIRCUIT BREAKER/SWITCH NOI. 5930-00-636-3917 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34410 which rates the freight between FCL and LCL. 5930-00-636-3917 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 723 for ocean manifesting and military sealift. 5930-00-636-3917 is not classified as a special type of cargo when transported by water. 5930-00-636-3917 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5930-00-636-3917
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- --
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- See Method of Preservation
- --
