5930-00-636-1583
Pull Switch
5930006361583 006361583 112464 2001M0D
A switch which is actuated by a device, such as a pull rod or a chain which requires pulling for each action. Excludes LIGHT-SWITCH ASSEMBLY and SWITCH, SENSITIVE. View more Pull Switch
May 2023
14
Marketplace 5930-00-636-1583
Request a Quotation from participating marketplace vendors
Related Documents 5930-00-636-1583 5+ Documents (More...)
RQST NE Updated Every Day 5930-00-636-1583 RQST Updated Every Day 5930-00-636-1583 RQST NE Related Documents
5930-00-636-1583 5+ Documents ( More... ) https//www.nsnlookup.com /fsg-59/fsc-5930/us 5930-00-636-1583
Upgrade for $1 a day Upgrade your Account Upgrade 7045-01 -705-5269Computer Case7045017055269 017055269 112464
Upgrade for $1 a day Upgrade your Account Upgrade 7045-01 -705-5269Computer Case7045017055269 017055269 112464
https//www.nsnlookup.com /fsg-59/fsc-5930/us 5930-00-636-1583 Pull Switch 5930006361583 006361583,112464
Upgrade for $1 a day Upgrade your Account Upgrade 5930-00-636-1583Pull Switch5930006361583 006361583
0054323401 118413 TEIL 112464 Managed by Germany NSN Created on 23 Sep 2013 Data Last Changed January
2530/de 2530-12-393-5368 Pressure Tank 2530123935368 123935368,112464 1124640054323401118413 TEIL 112464
5330142589591 142589591,112464 0054323401 118413 TEIL 112464 Managed by Germany NSN Created on 23 Sep
https//www.nsnlookup.com /fsg-59/fsc-5930/us 5930-00-636-1583 Pull Switch 5930006361583 006361583,112464
Restrictions 5930-00-636-1583
5930-00-636-1583 is a Pull Switch that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5930-00-636-1583
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5930-00-636-1583
- US Navy (N9BN)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- HD
- Brazil (YA01)
- Effective Date:
- 1 Jan 2002
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Thailand (YY01)
- Effective Date:
- 1 Feb 2015
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 5930-00-636-1583
- Part Number
- Manufacturer
- Status
- 112464
- Manufacturer
- 65092 - Solartron Electronics Inc (Obsolete)
- Original Design
- Original Design
- 2001M0D
- 37942 - Yosemite Investment Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5930-00-636-1583
- Characteristic
- Specifications
- FIIG
- Specifications
- A053A0
- Actuator Height [AFUS]
- 0.453 Inches Nominal
- Actuator Style [AFUQ]
- Round
- Body Height [ADAU]
- 1.625 Inches Nominal

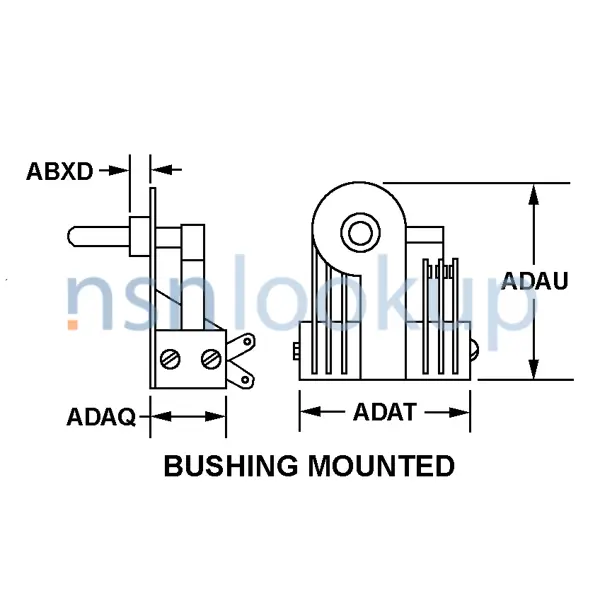

- Body Style [AAQL]
- Bushing Mounted
- Body Width [ADAT]
- 0.750 Inches Nominal
- Bushing Length [ABXD]
- 0.250 Inches Nominal
- Contact Load Current Rating At Maximum Rated Voltage [CXQR]
- 500.000 Milliamperes Resistive Dc And 500.000 Milliamperes Resistive Ac
- Maximum Voltage Rating In Volts [AFXE]
- 120.0 Ac And 120.0 Dc
- Mounting Method [AXGY]
- Threaded Bushing
- Nominal Thread Size [CQJX]
- 0.375 Inches
- Nonpile-Up Contact Arrangement [CRLD]
- 1 Pole, Single Throw, Normally Open, Momentary Action Single Switch Unit
- Inclosure Type [AKNA]
- Fully Inclosed
- Overall Height [ABKW]
- 1.625 Inches Nominal
- Overall Length [ABHP]
- 2.062 Inches Nominal
- Overall Width [ABMK]
- 0.750 Inches Nominal
- Terminal Type And Quantity [TTQY]
- 2 Tab, Solder Lug
- Thread Quantity Per Inch [CMLP]
- 32
- Thread Series Designator [THSD]
- Unef
DLA Procurement Analysis 5930-00-636-1583
Management Data 5930-00-636-1583
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5930-00-636-1583
Freight Information 5930-00-636-1583
5930-00-636-1583 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061300. A Sub NMFC of X. It has a NMFC Description of CIRCUIT BREAKER/SWITCH NOI. 5930-00-636-1583 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34410 which rates the freight between FCL and LCL. 5930-00-636-1583 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5930-00-636-1583 is not classified as a special type of cargo when transported by water. 5930-00-636-1583 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5930-00-636-1583
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- PPP-B-566 or PPP-B-676, Folding or Setup Box
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566 or PPP-B-676, Folding or Setup Box
