5930-00-554-8838
Toggle Switch
5930005548838 005548838 MIL-DTL-3950 8504K70 2TL1-10G MS27408-4G MILS3950
A switch which is externally actuated by a lever and whose contacts open and close with an instantaneous (snap) action; includes items having one or more momentary positions. Includes switches (snap action) which use mercury to bridge contacts, and assemblages of complete switches (snap action) having common actuators. Excludes SWITCH, LEVER; SWITCH, ROTARY; SWITCH, KNIFE; SWITCH, SENSITIVE; and SWITCH, BOX. View more Toggle Switch
May 2023
5
Marketplace 5930-00-554-8838
Request a Quotation from participating marketplace vendors
Updated Every Day Updated Every Day
Updated Every Day Related Documents 5930-00-554-8838 5+ Documents (More...)

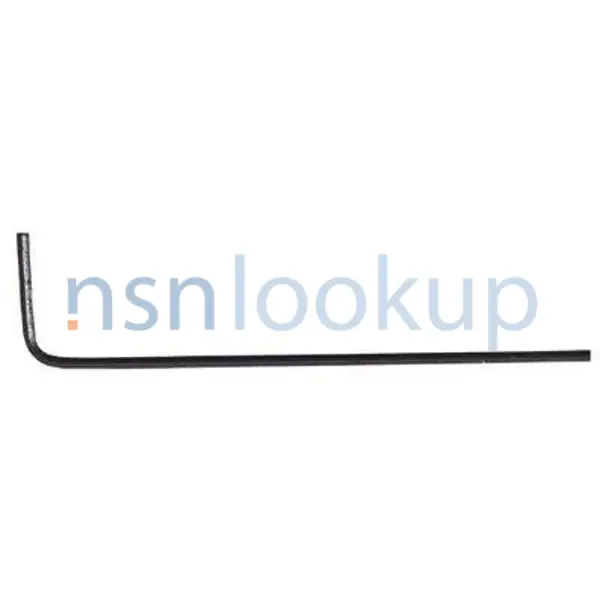

Photo 1/4 5930-00-554-8838 Photo 2/4 NSN 5930-00-554-8838 (Identification) 3/4 NSN 5930-00-554-
Every Day 5930-00-554-8838 RQST Updated Every Day 5930-00-554-8838 RQST NE Related Documents 5930-00
uk 5930-99-717-6497 Toggle Switch 5930997176497 997176497 Switch 5930996298876 996298876 AS30260 2TL1-10G
NS Request Quotation SWITCH,TOGGLE 1 EA NS Request Quotation Subscribe to View Vendor Details... 2TL1-10G
AS30260 2TL1-10G BS9561F0005-2TL1-10G A switch which is externally actuated by a lever and whose
https//www.nsnlookup.com /fsg-59/fsc-5930/us 5930-00-554-8838 Toggle Switch 5930005548838 005548838
AS30260 2TL1-10G BS9561F0005-2TL1-10G A switch which is externally actuated by a lever and whose
99-629-8876 Toggle Switch 5930996298876996298876 BS9561-F0005-2TL1-10GAS302602TL1-10GBS9561F0005-2TL1-10G
Toggle Switch 5930005548838 005548838 https//www.nsnlookup.com https//www.nsnlookup.com https//
250-2979 5930-01-316-0975 5930-00-548-8046 5930-01-568-8680 5930-99-317-6443 5930-00-296-6318 5930-00-554-8838
Restrictions 5930-00-554-8838
5930-00-554-8838 is a Toggle Switch that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5930-00-554-8838
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5930-00-554-8838
- US Air Force (FXGX)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- FXTX
- US Navy (N9BN)
- Effective Date:
- 1 Nov 2005
- Supplementary Collaborators:
- GTKE
- Argentina (YF01)
- Effective Date:
- 1 Sep 2015
Approved Sources 5930-00-554-8838
- Part Number
- Manufacturer
- Status
- MS27408-4G
- Manufacturer
- 96906 - Military Standards (Active)
- Definitive Standard
- Definitive Standard
- MIL-DTL-3950
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
- MILS3950
- 81349 - Military Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 8504K70
- 81640 - Safran Power Usa, Llc (Active)
- Advisory Reference
- Advisory Reference
- 2TL1-10G
- 91929 - Honeywell International Inc. (Active)
- Advisory Reference
- Advisory Reference
Datasheet 5930-00-554-8838
- Characteristic
- Specifications
- FIIG
- Specifications
- A053A0
- Actuator Height [AFUS]
- 1.050 Inches Nominal
- Actuator Color [AFVA]
- Natural Single Actuator
- Actuator Diameter [AFUR]
- 0.420 Inches Nominal
- Actuator Position-Action Relationship [AFUX]
- Up Position Maintained And Down Position Maintained And Center Position Maintained
- Actuator Position-Locking Relationship [AFUY]
- Up Position No Locking Action And Down Position Locked In And Center Position No Locking Action
- Actuator Style [AFUQ]
- Round
- Body Height [ADAU]
- 1.100 Inches Nominal
- Body Length [ADAQ]
- 1.340 Inches Maximum
- Body Style [AAQL]
- Bushing Mount
- Body Width [ADAT]
- 0.910 Inches Maximum
- Bushing Length [ABXD]
- 0.470 Inches Nominal
- Contact Load Current Rating At Maximum Rated Voltage [CXQR]
- 20.000 Amperes Resistive Dc And 15.000 Amperes Inductive Dc And 7.000 Amperes Lamp Dc And 15.000 Amperes Resistive Ac And 15.000 Amperes Inductive Ac And 4.000 Amperes Lamp Ac
- Features Provided [CBBL]
- Actuator Seal
- Hazardous Locations/Environmental Protection [ABFE]
- Watertight
- Maximum Voltage Rating In Volts [AFXE]
- 115.0 Ac And 28.0 Dc
- Mounting Method [AXGY]
- Threaded Bushing
- Nominal Thread Size [CQJX]
- 0.469 Inches
- Nonpile-Up Contact Arrangement [CRLD]
- 2 Pole, Double Throw, Three Positions Maintained Single Switch Unit
- Inclosure Type [AKNA]
- Fully Inclosed
- Terminal Type And Quantity [TTQY]
- 6 Screw
- Test Data Document [TEST]
- 81349-Mils3950 Specification (Includes Engineering Type Bulletins, Brochures,Etc., That Reflect Specification Type Data In Specification Format; Excludes Commercial Catalogs, Industry Directories, And Similar Trade Publications, Reflecting General Type Data On Certain Environmental And Performance Requirements And Test Conditions That Are Shown As "Typical", "Average", "Nominal", Etc.).
- Thread Quantity Per Inch [CMLP]
- 32
- Thread Series Designator [THSD]
- Uns
Weapon Systems (WSDC) 5930-00-554-8838
DLA Procurement Analysis 5930-00-554-8838
Management Data 5930-00-554-8838
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5930-00-554-8838
Freight Information 5930-00-554-8838
5930-00-554-8838 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061360. A Sub NMFC of X. It has a NMFC Description of COILS/YOKES FOCUS/DEFLECTION TV. 5930-00-554-8838 is rated as class 85 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34430 which rates the freight between FCL and LCL. 5930-00-554-8838 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5930-00-554-8838 is not classified as a special type of cargo when transported by water. 5930-00-554-8838 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5930-00-554-8838
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- --
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- See Method of Preservation
- --
Contracting Technical Data File (CTDF) 5930-00-554-8838 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- L
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
