5930-00-548-3134
Toggle Switch
5930005483134 005483134 49324REVCPT1 5050A
A switch which is externally actuated by a lever and whose contacts open and close with an instantaneous (snap) action; includes items having one or more momentary positions. Includes switches (snap action) which use mercury to bridge contacts, and assemblages of complete switches (snap action) having common actuators. Excludes SWITCH, LEVER; SWITCH, ROTARY; SWITCH, KNIFE; SWITCH, SENSITIVE; and SWITCH, BOX. View more Toggle Switch
May 2023
12
Marketplace 5930-00-548-3134
Request a Quotation from participating marketplace vendors
Related Documents 5930-00-548-3134 5+ Documents (More...)
(Identification) 1/2 NSN 5930-00-548-3134 (Identification) 2/2 - - 1.
BUY NE FedMall Updated Every Day 5930-00-548-3134 RQST NE Updated Every Day 5930-00-548-3134 RQST
Account Upgrade 7643-01-441-1450Topographic Geospatial Products7643014411450 014411450 M737X5050A 5050A
Toggle Switch 5930005483134 005483134 day Upgrade your Account Upgrade 5930-00-548-3134Toggle Switch5930005483134
JavaScript in your web browser . 5996-25-148-3157Radio Frequency Amplifier5996251483157 251483157PA-5050A
Self-Contained Tire Pressure Gage 218671269 vendors https//www.nsnlookup.com /fsg-59/fsc-5930/us 5930-00-548-3134
-867-1269 Self-Contained Tire Pressure Gage 218671269 Frequency Amplifier5996251483157 251483157PA-5050A
web browser . 7643-13-120-4061Topographic Geospatial Products7643131204061 131204061M737X5050AM737 5050A
Account Upgrade 7643-01-441-1450Topographic Geospatial Products7643014411450 014411450M737X5050AM737 5050A
web browser . 7643-13-120-4061Topographic Geospatial Products7643131204061 131204061 M737X5050A M737 5050A
Restrictions 5930-00-548-3134
5930-00-548-3134 is a Toggle Switch that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item contains Silver.
Import and Export 5930-00-548-3134
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5930-00-548-3134
- US Navy (N9BN)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- HD
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5930-00-548-3134
- Part Number
- Manufacturer
- Status
- 49324REVCPT1
- Manufacturer
- 24930 - L3harris Technologies, Inc (Active)
- Primary Buy
- Primary Buy
- 5050A
- 81579 - Mason Electric Co. (Active)
- Secondary Buy
- Secondary Buy
Datasheet 5930-00-548-3134
- Characteristic
- Specifications
- FIIG
- Specifications
- A053A0
- Actuator Height [AFUS]
- 1.750 Inches Nominal
- Actuator Diameter [AFUR]
- 0.438 Inches Nominal
- Actuator Position-Action Relationship [AFUX]
- Up Position Momentary And Down Position Momentary And Center Position Maintained And Left Position Momentary And Right Position Momentary
- Actuator Style [AFUQ]
- Round
- Body Diameter [ABPM]
- 1.438 Inches Maximum
- Body Length [ADAQ]
- 1.875 Inches Maximum

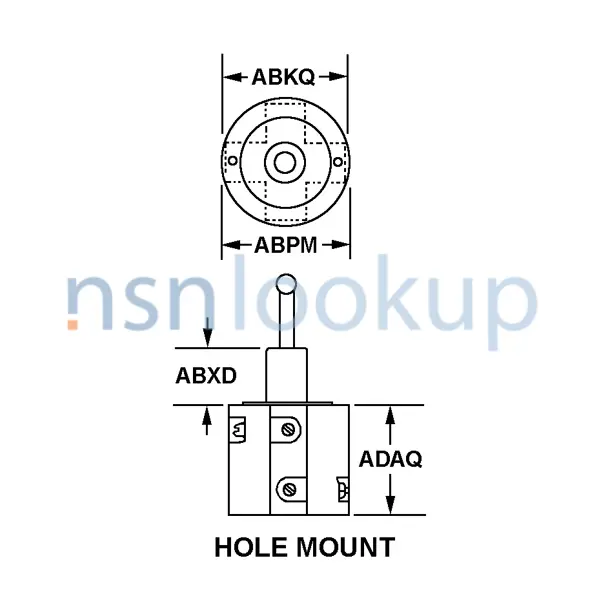

- Body Style [AAQL]
- Hole Mount
- Case Material [ADTV]
- Metal
- Center To Center Distance Between Mounting Facilities Parallel To Diameter [AEBX]
- 1.262 Inches Nominal
- Contact Load Current Rating At Maximum Rated Voltage [CXQR]
- 20.000 Amperes Resistive Dc And 10.000 Amperes Resistive Ac
- Maximum Voltage Rating In Volts [AFXE]
- 240.0 Ac And 30.0 Dc
- Mounting Method [AXGY]
- Threaded Bushing
- Nominal Thread Size [CQJX]
- 0.138 Inches
- Nonpile-Up Contact Arrangement [CRLD]
- 1 Four Throw, Normally Open, Momentary Action Single Switch Unit
- Inclosure Type [AKNA]
- Fully Inclosed
- Precious Material And Location [PMLC]
- Terminal Surfaces Silver
- Overall Height [ABKW]
- 1.531 Inches Nominal
- Overall Length [ABHP]
- 3.063 Inches Nominal
- Overall Width [ABMK]
- 2.125 Inches Nominal
- Special Features [FEAT]
- Flame Resistant
- Terminal Type And Quantity [TTQY]
- 5 Screw
- Thread Class [AAJD]
- 2A
- Thread Quantity Per Inch [CMLP]
- 32
- Thread Series Designator [THSD]
- Unc
DLA Procurement Analysis 5930-00-548-3134
Management Data 5930-00-548-3134
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 5930-00-548-3134
Freight Information 5930-00-548-3134
5930-00-548-3134 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061300. A Sub NMFC of X. It has a NMFC Description of CIRCUIT BREAKER/SWITCH NOI. 5930-00-548-3134 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34410 which rates the freight between FCL and LCL. 5930-00-548-3134 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5930-00-548-3134 is not classified as a special type of cargo when transported by water. 5930-00-548-3134 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5930-00-548-3134
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- PPP-B-566 or PPP-B-676, Folding or Setup Box
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Any Suitable Fiber Box
