5930-00-506-1922
Sensitive Switch
5930005061922 005061922 H7-8 DMS 81010B
A switch with a quick-acting mechanism actuated by a highly delicate tactile contact. Includes membrane switch. Excludes SWITCH, FLEXIBLE; SWITCH, PRESSURE; and SWITCH, THERMOSTATIC. View more Sensitive Switch
Managed by United States
NSN Created on 1 Jan 1963
Data Last Changed
November 2023
November 2023
NATO Update Count
18
18
NATO Data Quality
Marketplace 5930-00-506-1922
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 5930-00-506-1922 5+ Documents (More...)
H7-8 DMS 81010B A switch with a quick-acting mechanism actuated by a highly delicate tactile contact
H7-8 SWITCH,SENSITIVE 3 EA NS Request Quotation Subscribe to View Vendor Details... 5930-00-506-1922
H7-8 SWITCH,SENSITIVE 10 EA NS Request Quotation Updated Every Day 5930-00-506-1922 RQST NE Updated Every
H7-8 SWITCH,SENSITIVE 3 EA NS Request Quotation Subscribe to View Vendor Details... 5930-00-506-1922
H7-8 SWITCH,SENSITIVE 10 EA NS Request Quotation Updated Every Day 5930-00-506-1922 RQST NE Updated Every
H7-8 BUSHING,TAPERED 3 EA NS Request Quotation Updated Every Day 5365-00-498-0635 RQST NE Updated Every
8990-6040 A trunicated cone-shaped metal item generally tapered along its entire peripheral length H7-8
Sensitive Switch 5930005061922 005061922,H7-8 for $1 a day Upgrade your Account Upgrade 5930-00
8990-6040 A trunicated cone-shaped metal item generally tapered along its entire peripheral length H7-8
Sensitive Switch 5930005061922 005061922,H7-8 for $1 a day Upgrade your Account Upgrade 5930-00
Upgrade your Account Upgrade 5930-00-682-0411Push Switch5930006820411 006820411 1676236 A4-2WITHD8-9 DMS 81010B
day Upgrade your Account Upgrade 5930-00-669-8367Sensitive Switch5930006698367 006698367 H1-30 DMS 81010B
https//www.nsnlookup.com /fsg-59/fsc-5930/us 5930-00-506-1922 Sensitive Switch 5930005061922 005061922
day Upgrade your Account Upgrade 5930-00-669-8367Sensitive Switch5930006698367 006698367 H1-30 DMS 81010B
https//www.nsnlookup.com /fsg-59/fsc-5930/us 5930-00-506-1922 Sensitive Switch 5930005061922 005061922
your Account Upgrade 5930-00-948-0365Switch Actuator Adapter5930009480365 009480365 A2-14 GA805E1 DMS 81010B
day Upgrade your Account Upgrade 5930-00-505-4380Sensitive Switch5930005054380 005054380 H1-17 DMS 81010B
Sensitive Switch 5930005061922 005061922,H7-8 a day Upgrade your Account Upgrade 5930-00-506-1922Sensitive
day Upgrade your Account Upgrade 5930-00-505-4380Sensitive Switch5930005054380 005054380 H1-17 DMS 81010B
Sensitive Switch 5930005061922 005061922,H7-8 a day Upgrade your Account Upgrade 5930-00-506-1922Sensitive
your Account Upgrade 5930-00-723-2446Push-Pull Switch5930007232446 007232446 A20064-01 913B272P1 DMS 81010B
https//www.nsnlookup.com /fsg-59/fsc-5930/us 5930-00-506-1922 Sensitive Switch 5930005061922 005061922
,H7-8 a day Upgrade your Account Upgrade 5930-00-506-1922Sensitive Switch5930005061922 005061922 H7-8
https//www.nsnlookup.com /fsg-59/fsc-5930/us 5930-00-506-1922 Sensitive Switch 5930005061922 005061922
,H7-8 a day Upgrade your Account Upgrade 5930-00-506-1922Sensitive Switch5930005061922 005061922 H7-8
Restrictions 5930-00-506-1922
5930-00-506-1922 is a Sensitive Switch that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5930-00-506-1922
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5930-00-506-1922
- US Air Force (FXGX)
- Effective Date:
- 1 Aug 2006
- Former MOE Rule:
- FXTX
- US Navy (N9BN)
- Effective Date:
- 1 Aug 2006
- Former MOE Rule:
- NIND
- Supplementary Collaborators:
- KE
- Brazil (YA01)
- Effective Date:
- 1 Jan 2002
- Israel (YD01)
- Effective Date:
- 1 Apr 1991
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Kuwait (YK01)
- Effective Date:
- 1 Feb 2015
- Malaysia (YW01)
- Effective Date:
- 1 Aug 2001
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5930-00-506-1922
- Part Number
- Manufacturer
- Status
- H7-8
- Manufacturer
- 81640 - Safran Power Usa, Llc (Active)
- Primary Buy
- Primary Buy
- DMS 81010B
- 16236 - Dla Land And Maritime (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5930-00-506-1922
- Characteristic
- Specifications
- FIIG
- Specifications
- A053A0
- Actuator Movement [CXQQ]
- 0.100 Pretravel Inches Maximum And 0.125 Overtravel Inches Minimum And 0.030 Differential Inches Nominal
- Actuator Roller Diameter [AFUV]
- 0.500 Inches Nominal
- Actuator Roller Width [AFUW]
- 0.125 Inches Nominal

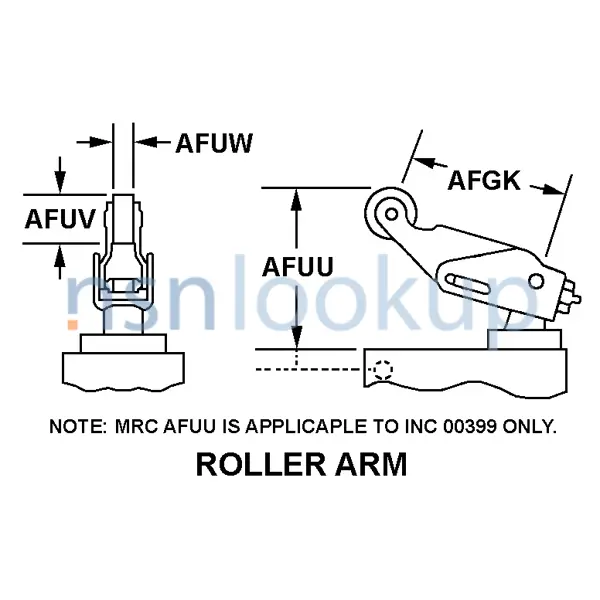

- Actuator Style [AFUQ]
- Roller Arm
- Center To Center Distance Between Housing Mounting Facilities Parallel To Length [AFWH]
- 1.375 Inches Nominal
- Contact Load Current Rating At Maximum Rated Voltage [CXQR]
- 15.000 Amperes Resistive Dc And 10.000 Amperes Inductive Dc And 10.000 Amperes Resistive Ac
- Features Provided [CBBL]
- Actuator Seal
- Hazardous Locations/Environmental Protection [ABFE]
- Dustproof
- Housing Height [AFWC]
- 1.125 Inches Nominal
- Housing Length [AFWD]
- 2.000 Inches Nominal
- Housing Width [AFWE]
- 1.156 Inches Nominal
- Maximum Voltage Rating In Volts [AFXE]
- 250.0 Ac And 28.0 Dc
- Nonpile-Up Contact Arrangement [CRLD]
- 1 Two Circuit, Double Break/Double Make, One Position Momentary Single Switch Unit
- Inclosure Type [AKNA]
- Fully Inclosed
- Body Style [AAQL]
- Switch Actuating Force [CSJN]
- 64.0 Ounces Minimum
- Terminal Type And Quantity [TTQY]
- 4 Connector, Receptacle
Weapon Systems (WSDC) 5930-00-506-1922
DLA Procurement Analysis 5930-00-506-1922
- Last Stock Position:
- 6 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5930-00-506-1922
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2022
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- Oct 2020
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- Mar 2020
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- Oct 2019
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- EH
- ELECTRONIC COMPONENTS
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 5930-00-506-1922
5930-99-915-0453 5930-22-612-8942 5930-27-041-9585 5930-99-302-8128 5930-99-474-5977 5930-12-368-1529 5930-99-020-6409 5930-12-344-3684 5930-99-797-0902 5930-99-151-5216 5930-99-718-9561 5930-99-768-5251 5930-12-337-2193 5930-99-742-8804 5930-99-971-6837 5930-99-723-6217 5930-12-327-5823 5930-99-435-6203
Freight Information 5930-00-506-1922
5930-00-506-1922 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061300. A Sub NMFC of X. It has a NMFC Description of CIRCUIT BREAKER/SWITCH NOI. 5930-00-506-1922 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34410 which rates the freight between FCL and LCL. 5930-00-506-1922 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5930-00-506-1922 is not classified as a special type of cargo when transported by water. 5930-00-506-1922 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5930-00-506-1922
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- --
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- See Method of Preservation
- --
Contracting Technical Data File (CTDF) 5930-00-506-1922 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- W
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
