5930-00-504-9044
Sensitive Switch
5930005049044 005049044 H5-9 DMS 80058B
A switch with a quick-acting mechanism actuated by a highly delicate tactile contact. Includes membrane switch. Excludes SWITCH, FLEXIBLE; SWITCH, PRESSURE; and SWITCH, THERMOSTATIC. View more Sensitive Switch
November 2023
4
Marketplace 5930-00-504-9044
Request a Quotation from participating marketplace vendors
Related Documents 5930-00-504-9044 5+ Documents (More...)
H5-9 SWITCH,SENSITIVE 21 EA NS Request Quotation FedMall Updated Every 15 Minutes 5930-00-504-9044 BUY
NE FedMall Updated Every Day 5930-00-504-9044 RQST NE Updated Every Day 5930-00-504-9044 RQST Updated
Sensitive Switch 5930005049044 005049044,H5-9 a day Upgrade your Account Upgrade 5930-00-504-9044Sensitive
Switch5930005049044 005049044 H5-9 DMS 80058B Push Switch 5930009089648 009089648,860057-14 Account
a day Upgrade your Account Upgrade 5930-00-504-9044Sensitive Switch5930005049044 005049044 H5-9 DMS
Sensitive Switch 5930005049044 005049044,H5-9 a day Upgrade your Account Upgrade 5930-00-504-9044Sensitive
/fsg-59/fsc-5930/us 5930-00-504-9044 Sensitive Switch 5930005049044 005049044,H5-9 a day Upgrade your
Account Upgrade 5930-00-504-9044Sensitive Switch5930005049044 005049044 H5-9 DMS 80058B Account Upgrade
Sensitive Switch 5930005049044 005049044,H5-9 a day Upgrade your Account Upgrade 5930-00-504-9044Sensitive
Switch5930005049044 005049044 H5-9 DMS 80058B Account Upgrade 5930-00-908-9648Push Switch5930009089648
Restrictions 5930-00-504-9044
5930-00-504-9044 is a Sensitive Switch that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5930-00-504-9044
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5930-00-504-9044
- US Air Force (FXGX)
- Effective Date:
- 1 Aug 2006
- Former MOE Rule:
- FXTX
- US Navy (N9BN)
- Effective Date:
- 1 Aug 2006
- Supplementary Collaborators:
- KE
Approved Sources 5930-00-504-9044
- Part Number
- Manufacturer
- Status
- H5-9
- Manufacturer
- 81640 - Safran Power Usa, Llc (Active)
- Primary Buy
- Primary Buy
- DMS 80058B
- 16236 - Dla Land And Maritime (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5930-00-504-9044
- Characteristic
- Specifications
- FIIG
- Specifications
- A053A0
- Actuator Movement [CXQQ]
- 0.075 Pretravel Inches Nominal And 0.125 Overtravel Inches Minimum And 0.025 Differential Inches Nominal
- Actuator Length [AFGK]
- 1.781 Inches Nominal
- Actuator Roller Diameter [AFUV]
- 0.500 Inches Nominal
- Actuator Roller Width [AFUW]
- 0.120 Inches Nominal
- Actuator Style [AFUQ]
- Roller Arm
- Body Style [AAQL]
- Hole Mounted

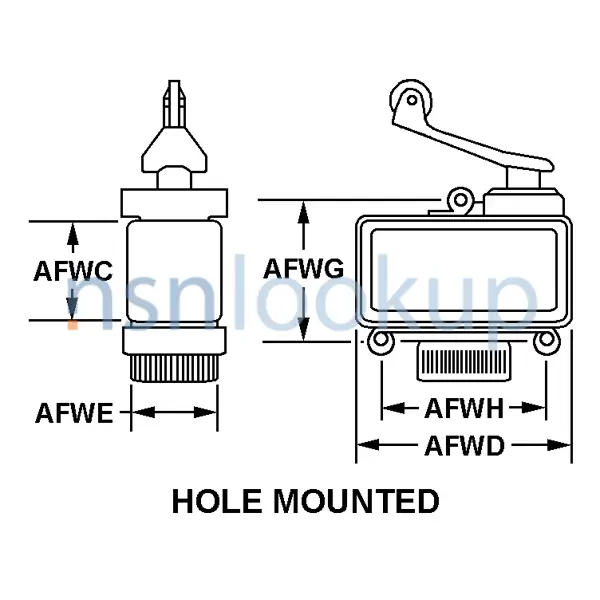

- Center To Center Distance Between Housing Mounting Facilities Parallel To Height [AFWG]
- 1.437 Inches Nominal
- Center To Center Distance Between Housing Mounting Facilities Parallel To Length [AFWH]
- 1.375 Inches Nominal
- Contact Load Current Rating At Maximum Rated Voltage [CXQR]
- 15.000 Amperes Resistive Dc And 10.000 Amperes Inductive Dc And 10.000 Amperes Inductive Ac
- Housing Height [AFWC]
- 1.125 Inches Nominal
- Housing Length [AFWD]
- 2.000 Inches Nominal
- Housing Width [AFWE]
- 1.032 Inches Nominal
- Maximum Voltage Rating In Volts [AFXE]
- 250.0 Ac And 28.0 Dc
- Mounting Method [AXGY]
- Threaded Hole
- Nonpile-Up Contact Arrangement [CRLD]
- 1 Two Circuit, Double Break/Double Make, One Position Momentary Single Switch Unit
- Inclosure Type [AKNA]
- Fully Inclosed
- Overall Length [ABHP]
- 2.000 Inches Nominal
- Overall Width [ABMK]
- 1.032 Inches Nominal
- Switch Actuating Force [CSJN]
- 64.0 Ounces Nominal
- Switch Release Force [CRRM]
- 10.0 Ounces Nominal
- Terminal Type And Quantity [TTQY]
- 1 Connector, Receptacle
