5930-00-490-2969
Pull Switch
5930004902969 004902969 209-070-280-3 E855M9-2
A switch which is actuated by a device, such as a pull rod or a chain which requires pulling for each action. Excludes LIGHT-SWITCH ASSEMBLY and SWITCH, SENSITIVE. View more Pull Switch
November 2023
11
Marketplace 5930-00-490-2969
Request a Quotation from participating marketplace vendors
Related Documents 5930-00-490-2969 5+ Documents (More...)
E855M9-2 SWITCH,PULL 1 EA NS Request Quotation Updated Every Day 5930-00-490-2969 RQST NE Updated Every
Day 5930-00-490-2969 RQST Updated Every Day 5930-00-490-2969 RQST NE Related Documents 5930-00-490-2969
Pull Switch 5930004902969 004902969 2969 RQST NE Related Documents 5930-00-490-2969 https//www.nsnlookup.com
990-1393 5930-01-250-0824 5930-01-559-0364 5930-01-439-5285 5930-01-515-9342 5930-14-392-7513 5930-00-490-2969
Pull Switch 5930004902969 004902969 5930-01-515-9342 5930-14-392-7513 5930-00-490-2969 https//www.nsnlookup.com
990-1393 5930-01-250-0824 5930-01-559-0364 5930-01-439-5285 5930-01-515-9342 5930-14-392-7513 5930-00-490-2969
Pull Switch 5930004902969 004902969 5930-01-515-9342 5930-14-392-7513 5930-00-490-2969 https//www.nsnlookup.com
990-1393 5930-01-250-0824 5930-01-559-0364 5930-01-439-5285 5930-01-515-9342 5930-14-392-7513 5930-00-490-2969
fsg-59/fsc-5930/us 5930-01-583-6734 Pull Switch 5930015836734 015836734,39328 5930-14-392-7513 5930-00-490-2969
-583-6734 https 250-0824 5930-01-559-0364 5930-01-439-5285 5930-01-515-9342 5930-14-392-7513 5930-00-490-2969
Restrictions 5930-00-490-2969
5930-00-490-2969 is a Pull Switch that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5930-00-490-2969
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5930-00-490-2969
- US Air Force (FXGX)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- FXTX
- US Navy (N9BN)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- GTKE
- Spain (YB01)
- Effective Date:
- 1 Feb 1994
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5930-00-490-2969
- Part Number
- Manufacturer
- Status
- 209-070-280-3
- Manufacturer
- 97499 - Bell Textron Inc (Active)
- Source Control
- Source Control
- E855M9-2
- 99145 - Eaton Aerospace Llc Ed And C West (Obsolete)
- Original Design
- Original Design
Datasheet 5930-00-490-2969
- Characteristic
- Specifications
- FIIG
- Specifications
- A053A0
- Actuator Height [AFUS]
- 2.500 Inches Nominal
- Actuator Color [AFVA]
- Natural Single Actuator
- Actuator Inscription [AFVE]
- Fire Pull Single Actuator

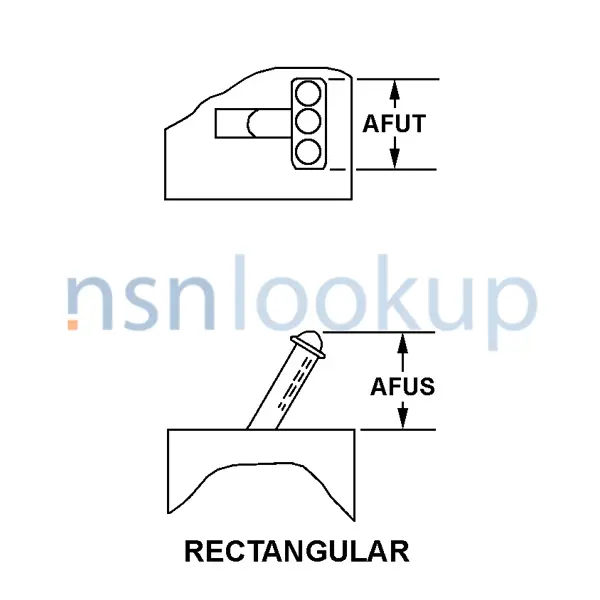

- Actuator Style [AFUQ]
- Rectangular
- Body Height [ADAU]
- 2.840 Inches Maximum
- Body Length [ADAQ]
- 3.910 Inches Maximum
- Body Style [AAQL]
- Hole Mount
- Body Width [ADAT]
- 1.130 Inches Maximum
- Center To Center Distance Between Mounting Facilities Parallel To Height [AEBW]
- 1.800 Inches Nominal
- Maximum Voltage Rating In Volts [AFXE]
- 28.0 Dc
- Nonpile-Up Contact Arrangement [CRLD]
- 6 Pole, Double Throw, Both Positions Maintained Single Switch Unit
- Illuminated Actuator Color [AFVB]
- Red Single Actuator
- Inclosure Type [AKNA]
- Uninclosed
Weapon Systems (WSDC) 5930-00-490-2969
DLA Procurement Analysis 5930-00-490-2969
- Last Stock Position:
- 6 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5930-00-490-2969
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2022
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- Oct 2020
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- Nov 2019
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Air Force (DF)
- F
- R
- Refer To Aft095req
- AFT095REQ
- R
Navy
- Cognizance:
- 3B
- Special Material ID:
- AH
- Helicopters (H1)
- Special Material Content:
- 9
- Non-Hazardous or Non-Sensitive Item
Similar Supply Items to 5930-00-490-2969
Freight Information 5930-00-490-2969
5930-00-490-2969 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061300. A Sub NMFC of X. It has a NMFC Description of CIRCUIT BREAKER/SWITCH NOI. 5930-00-490-2969 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34410 which rates the freight between FCL and LCL. 5930-00-490-2969 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5930-00-490-2969 is not classified as a special type of cargo when transported by water. 5930-00-490-2969 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5930-00-490-2969
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- --
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- See Method of Preservation
- --
Procurement History 5930-00-490-2969 2 Records
Contracting Technical Data File (CTDF) 5930-00-490-2969 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
