5930-00-259-8228
Sensitive Switch
5930002598228 002598228 BZV7RNTN41
A switch with a quick-acting mechanism actuated by a highly delicate tactile contact. Includes membrane switch. Excludes SWITCH, FLEXIBLE; SWITCH, PRESSURE; and SWITCH, THERMOSTATIC. View more Sensitive Switch
January 2023
9
Marketplace 5930-00-259-8228
Request a Quotation from participating marketplace vendors
Related Documents 5930-00-259-8228 5+ Documents (More...)
Every Day 5930-00-259-8228 RQST Updated Every Day 5930-00-259-8228 RQST NE Related Documents 5930-00
BZV7RNTN41 SWITCH,SENSITIVE 1 EA NS Request Quotation Updated Every Day 5930-00-259-8228 RQST NE Updated
Sensitive Switch 5930002598228 002598228 Every Day 5930-00-259-8228 RQST Updated Every Day 5930
-00-259-8228 RQST NE Related Documents 5930-00 Every Day 5930-00-259-8228 RQST Updated Every Day 5930
Sensitive Switch 5930002598228 002598228 5930002598228002598228 Every Day 5930-00-259-8228 https
Sensitive Switch 5930002598228 002598228 www.nsnlookup.com /fsg-59/fsc-5963/us 5963-01-318-8998
Controlled Oscillator 5963013188998 Documents 7320-01-259-8228 5930002598228002598228 Every Day 5930-00-259-8228
Sensitive Switch 5930002598228 002598228 Every Day 5930-00-259-8228 RQST Updated Every Day 5930
-00-259-8228 RQST NE Related Documents 5930-00 Every Day 5930-00-259-8228 RQST Updated Every Day 5930
Restrictions 5930-00-259-8228
5930-00-259-8228 is a Sensitive Switch that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5930-00-259-8228
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5930-00-259-8228
- Malaysia (YW01)
- Effective Date:
- 1 Aug 1997
- Thailand (YY01)
- Effective Date:
- 1 Feb 2015
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5930-00-259-8228
- Part Number
- Manufacturer
- Status
- BZV7RNTN41
- Manufacturer
- 91929 - Honeywell International Inc. (Active)
- Primary Buy
- Primary Buy
Datasheet 5930-00-259-8228
- Characteristic
- Specifications
- FIIG
- Specifications
- A053A0

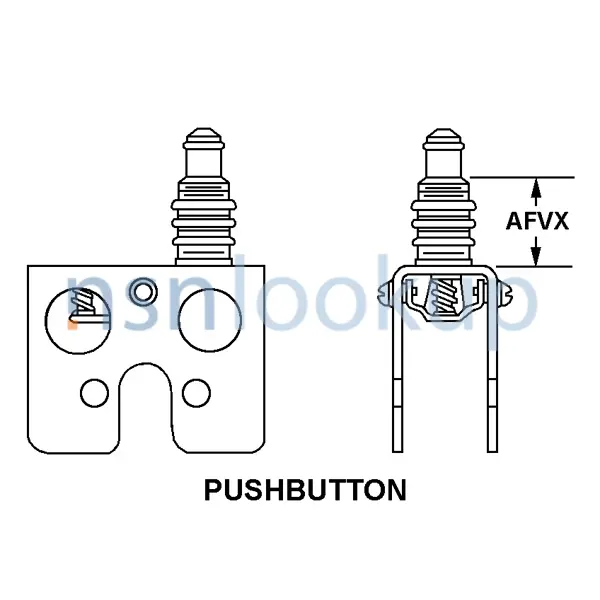

- Actuator Adapter Style [AFVV]
- Pushbutton
- Actuator Movement [CXQQ]
- 0.078 Pretravel Inches Maximum And 0.219 Overtravel Inches Minimum And 0.005 Differential Inches Maximum
- Body Style [AAQL]
- Hole Mounted
- Contact Load Current Rating At Maximum Rated Voltage [CXQR]
- 3.000 Amperes Resistive Ac
- Housing Width [AFWE]
- 1.000 Inches Nominal
- Housing Height [AFWC]
- 1.625 Inches Nominal
- Maximum Voltage Rating In Volts [AFXE]
- 460.0 Ac
- Nonpile-Up Contact Arrangement [CRLD]
- 1 Pole, Double Throw, One Position Momentary Single Switch Unit
- Inclosure Type [AKNA]
- Fully Inclosed
- Special Features [FEAT]
- Sealed Plunger Constructed For Low Temp Application
- Switch Actuating Force [CSJN]
- 54.0 Ounces Maximum
- Switch Release Force [CRRM]
- 10.0 Ounces Minimum
- Terminal Type And Quantity [TTQY]
- 3 Tab, Solder Lug
Similar Supply Items to 5930-00-259-8228
Freight Information 5930-00-259-8228
5930-00-259-8228 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061300. A Sub NMFC of X. It has a NMFC Description of CIRCUIT BREAKER/SWITCH NOI. 5930-00-259-8228 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. 5930-00-259-8228 is rated as class 77.5 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 34410 which rates the freight between FCL and LCL. 5930-00-259-8228 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5930-00-259-8228 is not classified as a special type of cargo when transported by water. 5930-00-259-8228 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
