5930-00-254-0383
Sensitive Switch Housing
5930002540383 002540383 H03RN11
An item designed to inclose a basic sensitive switch providing characteristics features such as dust-proof, explosion-proof, watertight, and the like, and having provisions for actuating the switch. Excludes BOX, SWITCH. View more Sensitive Switch Housing
January 2023
14
Marketplace 5930-00-254-0383
Request a Quotation from participating marketplace vendors
Related Documents 5930-00-254-0383 1+ Documents (More...)
/fsg-59/fsc-5930/us
5930-00-254-0383 1+ Documents ( More... ) https//www.nsnlookup.com /fsg-59/fsc-5930/us 5930-00-254-0383
Sensitive Switch Housing 5930002540383 RQST NE Updated Every Day 5930-00-254-0383 RQST Updated Every
Restrictions 5930-00-254-0383
5930-00-254-0383 is a Sensitive Switch Housing that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5930-00-254-0383
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5930-00-254-0383
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5930-00-254-0383
- Part Number
- Manufacturer
- Status
- H03RN11
- Manufacturer
- 91929 - Honeywell International Inc. (Active)
- Original Design
- Original Design
Datasheet 5930-00-254-0383
- Characteristic
- Specifications
- FIIG
- Specifications
- A053A0

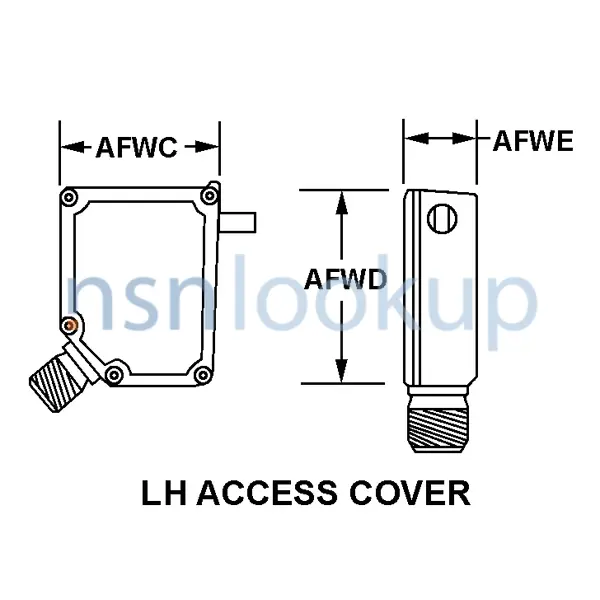

- Body Style [AAQL]
- Lh Access Cover
- Housing Length [AFWD]
- 2.766 Inches Nominal
- Housing Width [AFWE]
- 1.000 Inches Nominal
- Actuator Style [AFUQ]
- Round
- Actuator Free Position Height [AFUU]
- 2.047 Inches Nominal
- Mounting Method [AXGY]
- Threaded Hole
- Thread Series Designator [THSD]
- Unc
- Nominal Thread Size [CQJX]
- 0.164 Inches
- Thread Class [AAJD]
- 2B
- Thread Quantity Per Inch [CMLP]
- 32
- Features Provided [CBBL]
- Nonadjustable
DLA Procurement Analysis 5930-00-254-0383
Management Data 5930-00-254-0383
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2003
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Defense Logistics Agency (DS)
- I
- V
- Discontinued Without Replacement
- V
NATO Stock Numbers Related to 5930-00-254-0383
Freight Information 5930-00-254-0383
5930-00-254-0383 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061300. A Sub NMFC of X. It has a NMFC Description of CIRCUIT BREAKER/SWITCH NOI. 5930-00-254-0383 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34410 which rates the freight between FCL and LCL. 5930-00-254-0383 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5930-00-254-0383 is not classified as a special type of cargo when transported by water. 5930-00-254-0383 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5930-00-254-0383
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- MIL-P-130, Laminated and Creped Wrapping Paper
- No Requirement
- Not Applicable
- PPP-B-566 or PPP-B-676, Folding or Setup Box
- No special marking
- MIL-P-130, Laminated and Creped Wrapping Paper
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Any Suitable Fiber Box
Contracting Technical Data File (CTDF) 5930-00-254-0383 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
