5930-00-243-4496
Trigger Switch
5930002434496 002434496 NAF1174-1 8897K1 GS837JN1 NAF1174 1174-1
A switch which is actuated by pulling a trigger. The switching device with trigger action may be a separate unit but is usually mounted or designed to be mounted in a pistol-grip handle. It may include provisions for locking the switch in the "ON" position. Excludes GRIP ASSEMBLY, CONTROLLER, AIRCRAFT. View more Trigger Switch
Managed by United States
NSN Created on 1 Jan 1963
Data Last Changed
November 2023
November 2023
NATO Update Count
10
10
NATO Data Quality
Marketplace 5930-00-243-4496
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 5930-00-243-4496 5+ Documents (More...)
https//www.nsnlookup.com
/fsg-59/fsc-5930/us
/fsg-59/fsc-5930/us
5930-00-243-4496 Trigger Switch 5930002434496 002434496
NAF1174-1 8897K1 GS837JN1 NAF1174 1174-1 A switch which is actuated by pulling a trigger.
Vendor Details... 8897K1 SWITCH,TRIGGER 1 EA NS Request Quotation Updated Every Day 5930-00-243-4496
RQST NE Updated Every Day 5930-00-243-4496 RQST Updated Every Day 5930-00-243-4496 RQST NE Related Documents
Vendor Details... 8897K1 SWITCH,TRIGGER 1 EA NS Request Quotation Updated Every Day 5930-00-243-4496
RQST NE Updated Every Day 5930-00-243-4496 RQST Updated Every Day 5930-00-243-4496 RQST NE Related Documents
https//www.nsnlookup.com
/fsg-63/fsc-6350/us
/fsg-63/fsc-6350/us
6350-00-676-4813 Trigger Switch 6350006764813 006764813
Vendor Details... 11741 SWITCH,TRIGGER 33 EA NS Request Quotation Subscribe to View Vendor Details... 1174-1
SWITCH,TRIGGER 2 EA NS Request Quotation 1174-1 SWITCH,TRIGGER 2 EA NS Request Quotation Updated Every
Quotation from participating marketplace vendors https//www.nsnlookup.com /fsg-59/fsc-5930/us 5930-00-243-4496
SWITCH,TRIGGER 2 EA NS Request Quotation 1174-1 SWITCH,TRIGGER 2 EA NS Request Quotation Updated Every
Quotation from participating marketplace vendors https//www.nsnlookup.com /fsg-59/fsc-5930/us 5930-00-243-4496
https//www.nsnlookup.com
/fsg-53/fsc-5315/us
/fsg-53/fsc-5315/us
5315-00-925-9803 Trigger Switch 5315009259803 009259803
Vendor Details... 11741 SWITCH,TRIGGER 33 EA NS Request Quotation Subscribe to View Vendor Details... 1174-1
SWITCH,TRIGGER 2 EA NS Request Quotation 1174-1 SWITCH,TRIGGER 2 EA NS Request Quotation Updated Every
Restrictions 5315-00-925-9803 DEMIL: A | DEMILI https//www.nsnlookup.com /fsg-59/fsc-5930/us 5930-00-243-4496
SWITCH,TRIGGER 2 EA NS Request Quotation 1174-1 SWITCH,TRIGGER 2 EA NS Request Quotation Updated Every
Restrictions 5315-00-925-9803 DEMIL: A | DEMILI https//www.nsnlookup.com /fsg-59/fsc-5930/us 5930-00-243-4496
Upgrade your Account Upgrade 1680-00-948-3778Grip Control1680009483778 009483778 PM-21782 53-519 NAF1174
Trigger Switch 5930002434496 002434496 Upgrade for $1 a day Upgrade your Account Upgrade 5930-00
-243-4496Trigger Switch5930002434496 002434496 NAF1174 -1 8897K1 GS837JN1 NAF1174 1174-1 A switch which
Trigger Switch 5930002434496 002434496 Upgrade for $1 a day Upgrade your Account Upgrade 5930-00
-243-4496Trigger Switch5930002434496 002434496 NAF1174 -1 8897K1 GS837JN1 NAF1174 1174-1 A switch which
a day Upgrade your Account Upgrade 5340-01-285-3389Webbing Strap5340012853389 012853389 734-074-1 NAF1174
(Active) Primary Buy RNCC 3 RNVC 2 MEDALS DAC 5 NAF1174 https//www.nsnlookup.com /fsg-59/fsc-5930/us
5930-00-243-4496 Trigger Switch 5930002434496 002434496 the Navy (DN)NAConsolidated With 5930-00-243
(Active) Primary Buy RNCC 3 RNVC 2 MEDALS DAC 5 NAF1174 https//www.nsnlookup.com /fsg-59/fsc-5930/us
5930-00-243-4496 Trigger Switch 5930002434496 002434496 the Navy (DN)NAConsolidated With 5930-00-243
Restrictions 5930-00-243-4496
5930-00-243-4496 is a Trigger Switch that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5930-00-243-4496
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5930-00-243-4496
- US Army (A918)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- A196
- Supplementary Receivers:
- CL
- US Coast Guard (C911)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- C007
- US Air Force (FXGX)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- FXTX
- US Navy (N9BN)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- KE
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- France (ZF01)
- Effective Date:
- 1 Aug 1996
Approved Sources 5930-00-243-4496
- Part Number
- Manufacturer
- Status
- NAF1174-1
- Manufacturer
- 80020 - Naval Air Warfare Center Aircraft (Active)
- Primary Buy
- Primary Buy
- 8897K1
- 81640 - Safran Power Usa, Llc (Active)
- Secondary Buy
- Secondary Buy
- NAF1174
- 80020 - Naval Air Warfare Center Aircraft (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 1174-1
- 80020 - Naval Air Warfare Center Aircraft (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- GS837JN1
- 26512 - Northrop Grumman Systems Corporation (Active)
- Vendor Drawing
- Vendor Drawing
Datasheet 5930-00-243-4496
- Characteristic
- Specifications
- FIIG
- Specifications
- A053A0

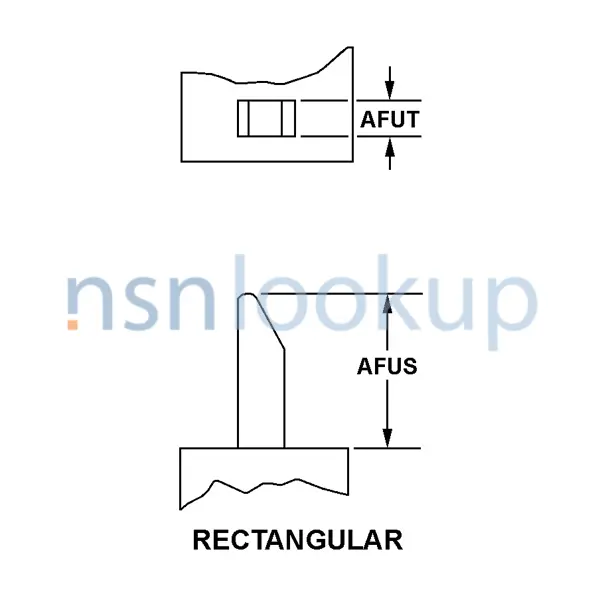

- Actuator Height [AFUS]
- 15.000 Inches Nominal
- Actuator Style [AFUQ]
- Rectangular
- Actuator Width [AFUT]
- 0.094 Inches Nominal
- Body Height [ADAU]
- 2.000 Inches Nominal
- Body Length [ADAQ]
- 4.094 Inches Nominal
- Body Style [AAQL]
- Hole Mount
- Body Width [ADAT]
- 0.688 Inches Nominal
- Case Material [ADTV]
- Plastic
- Contact Load Current Rating At Maximum Rated Voltage [CXQR]
- 40.000 Amperes Resistive Dc And 35.000 Amperes Inductive Dc And 5.000 Amperes Lamp Dc And 40.000 Amperes Motor Dc And 8.000 Amperes Resistive Ac And 500.0 Milliamperes Inductive Ac And 6.500 Amperes Motor Ac
- Maximum Voltage Rating In Volts [AFXE]
- 440.0 Ac And 30.0 Dc
- Mounting Method [AXGY]
- Unthreaded Hole
- Nonpile-Up Contact Arrangement [CRLD]
- 1 Pole, Single Throw, Normally Open, Momentary Action Single Switch Unit
- Inclosure Type [AKNA]
- Fully Inclosed
- Overall Height [ABKW]
- 3.735 Inches Nominal
- Overall Length [ABHP]
- 16.156 Inches Nominal
- Overall Width [ABMK]
- 0.688 Inches Nominal
- Terminal Type And Quantity [TTQY]
- 1 Cable W/Connector
Weapon Systems (WSDC) 5930-00-243-4496
DLA Procurement Analysis 5930-00-243-4496
- Last Stock Position:
- 15 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5930-00-243-4496
Army
- Materiel Category and Inventory Manager:
- Q
- Electronics Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- EH
- ELECTRONIC COMPONENTS
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 5930-00-243-4496
5930-37-522-4352 5930-01-157-0603 5930-99-523-1352 5930-99-641-7439 5930-99-724-3395 5930-01-617-9096 5930-01-487-6096 5930-01-444-0066 5930-99-932-5300 5930-99-484-3427 5930-00-237-7744 5930-01-665-8516 5930-01-312-7925 5930-01-234-0479 5930-01-235-8734 5930-01-670-9357 5930-01-526-5494 5930-01-195-2224
Freight Information 5930-00-243-4496
5930-00-243-4496 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061300. A Sub NMFC of X. It has a NMFC Description of CIRCUIT BREAKER/SWITCH NOI. 5930-00-243-4496 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34410 which rates the freight between FCL and LCL. 5930-00-243-4496 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5930-00-243-4496 is not classified as a special type of cargo when transported by water. 5930-00-243-4496 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5930-00-243-4496
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- MIL-P-130, Laminated and Creped Wrapping Paper
- A-A-1898, Grade II, Water Resistant Cellulosic Cushioning
- --
- PPP-B-566 or PPP-B-676, Folding or Setup Box
- No special marking
- MIL-P-130, Laminated and Creped Wrapping Paper
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Any Suitable Fiber Box
Procurement History 5930-00-243-4496 1 Records
Contracting Technical Data File (CTDF) 5930-00-243-4496 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
