5930-00-237-8597
Sensitive Switch Housing
5930002378597 002378597 HRE11
An item designed to inclose a basic sensitive switch providing characteristics features such as dust-proof, explosion-proof, watertight, and the like, and having provisions for actuating the switch. Excludes BOX, SWITCH. View more Sensitive Switch Housing
January 2023
13
Marketplace 5930-00-237-8597
Request a Quotation from participating marketplace vendors
Related Documents 5930-00-237-8597 4+ Documents (More...)
Sensitive Switch Housing 5930002378597,HRE11 HRE11 HOUSING,SENSITIVE SWITCH 14 EA NS Request Quotation
us 5930-00-237-8597 Sensitive Switch Housing 5930002378597,HRE11 Switch Housing 5930002378597,HRE11HRE11
/fsg-59/fsc-5930/uk
Sensitive Switch Housing 5930002378597,HRE11 5930002378597,HRE11 Switch Housing 5930002378597,HRE11HRE11
Sensitive Switch Housing 5930997876896 Numbers Related to 5930-99-787-6896 5930-14-352-5371 https 5930002378597
/fsg-59/fsc-5930/fr
Sensitive Switch Housing 5930002378597,HRE11 Switch Housing 5930002378597,HRE11HRE11 HOUSING https
RQST Updated Every Day 5930-14-440-4279 RQST NE Related Sensitive Switch Housing 5930144404279 5930002378597
/fsg-59/fsc-5930/us
Sensitive Switch Housing 5930002378597,HRE11 fsg-59/fsc-5930/fr 5930-14-440-4279 5930002378597
Restrictions 5930-00-237-8597
5930-00-237-8597 is a Sensitive Switch Housing that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5930-00-237-8597
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5930-00-237-8597
- Brazil (YA01)
- Effective Date:
- 1 Aug 2000
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Dec 2007
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5930-00-237-8597
- Part Number
- Manufacturer
- Status
- HRE11
- Manufacturer
- 91929 - Honeywell International Inc. (Active)
- Primary Buy
- Primary Buy
Datasheet 5930-00-237-8597
- Characteristic
- Specifications
- FIIG
- Specifications
- A053A0
- Actuator Free Position Height [AFUU]
- 0.594 Inches Nominal
- Actuator Style [AFUQ]
- Round
- Center To Center Distance Between Housing Mounting Facilities Parallel To Length [AFWH]
- 3.312 Inches Nominal
- Features Provided [CBBL]
- Nonadjustable
- Housing Width [AFWE]
- 1.000 Inches Nominal

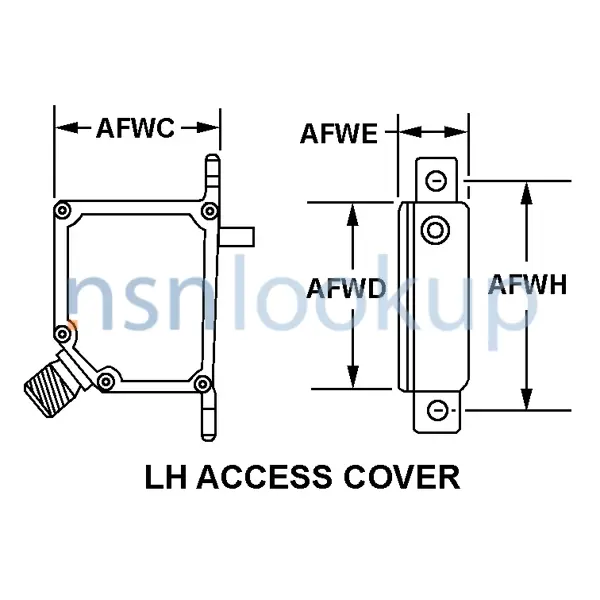

- Body Style [AAQL]
- Lh Access Cover
- Mounting Method [AXGY]
- Flush And Unthreaded Hole
- Overall Length [ABHP]
- 3.938 Inches Nominal
- Special Features [FEAT]
- Aluminum Frame
- Unthreaded Mounting Hole Diameter [AEBV]
- 0.281 Inches Nominal
NATO Stock Numbers Related to 5930-00-237-8597
Freight Information 5930-00-237-8597
5930-00-237-8597 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061300. A Sub NMFC of X. It has a NMFC Description of CIRCUIT BREAKER/SWITCH NOI. 5930-00-237-8597 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34410 which rates the freight between FCL and LCL. 5930-00-237-8597 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5930-00-237-8597 is not classified as a special type of cargo when transported by water. 5930-00-237-8597 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5930-00-237-8597
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- --
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- MIL-P-130, Laminated and Creped Wrapping Paper
- No Requirement
- Not Applicable
- PPP-B-566 or PPP-B-676, Folding or Setup Box
- No special marking
- MIL-P-130, Laminated and Creped Wrapping Paper
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Any Suitable Fiber Box
