5930-00-153-8488
Rotary Switch
5930001538488 001538488 627-67199
A switch actuated by a definite angular rotation of the switch shaft about its axis. For items having rated actuation travel and pressure characteristics, see SWITCH, SENSITIVE. Excludes RELAY, ROTARY; SWITCH, STEPPING; and SWITCH, TELEPHONE (as modified). View more Rotary Switch
May 2023
2
Marketplace 5930-00-153-8488
Request a Quotation from participating marketplace vendors
Related Documents 5930-00-153-8488 5+ Documents (More...)
5930-00-153-8488 RQST NE Related Documents 5930-00-153-8488 5+ Documents ( More... ) https//www.nsnlookup.com
/fsg-59/fsc-5930/us 5930-00-153-8488 Rotary Switch 5930001538488001538488 Updated Every Day 5930-00-
Rotary Switch 5930001538488 001538488 for $1 a day Upgrade your Account Upgrade 5930-00-153-8488Rotary
Switch5930001538488 001538488 627-67199 a Quotation from participating marketplace vendors Request Subscribe
Rotary Switch 5930001538488 001538488 for $1 a day Upgrade your Account Upgrade 5930-00-153-8488Rotary
Switch5930001538488 001538488 627-67199 a Quotation from participating marketplace vendors Request Subscribe
Rotary Switch 5930001538488 001538488 for $1 a day Upgrade your Account Upgrade 5930-00-153-8488Rotary
Switch5930001538488 001538488 627-67199 Compression Helical Spring 5360143467944 Rotary Switch 5930001538488001538488
Rotary Switch 5930001538488 001538488 for $1 a day Upgrade your Account Upgrade 5930-00-153-8488Rotary
Switch5930001538488 001538488 627-67199 a Quotation from participating marketplace vendors Request Subscribe
Restrictions 5930-00-153-8488
5930-00-153-8488 is a Rotary Switch that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
End Users 5930-00-153-8488
- US Navy (N9BN)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- HD
Approved Sources 5930-00-153-8488
- Part Number
- Manufacturer
- Status
- 627-67199
- Manufacturer
- 07505 - Applied Power Inc (Active)
- Primary Buy
- Primary Buy
Datasheet 5930-00-153-8488
- Characteristic
- Specifications
- FIIG
- Specifications
- A052B0

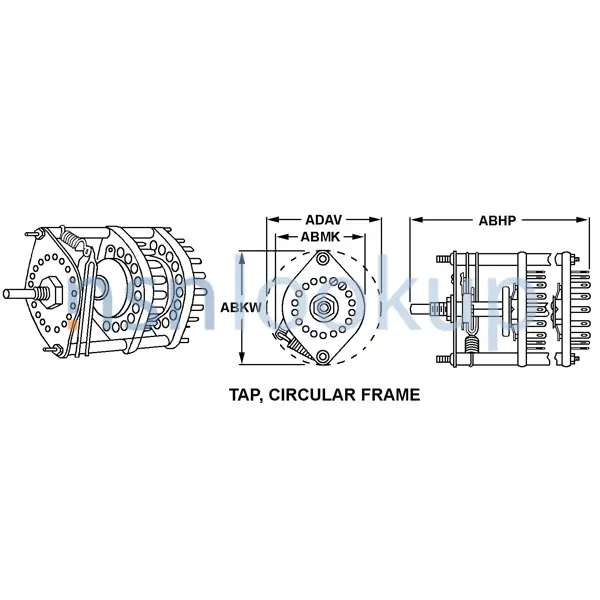

- Style Designator [STYL]
- Tap, Circular Frame
- Overall Length [ABHP]
- 2.156 Inches Nominal
- Overall Diameter [ADAV]
- 2.812 Inches Nominal
- Individual Section Quantity [AFBH]
- 1
- Switch Contact Basic Design [AJZE]
- Nonpile-Up Symmetrical
- Pole Quantity [AKPX]
- 1 Single Section Rear
- Throw Quantity [AKPY]
- 6 Single Section Rear
- Contact Switching Action [CSHW]
- Breaks Before Makes Single Section Rear
- Switch Actuator Indexing Position Quantity [CRJH]
- 6 Single Actuator
- Switch Actuator Positioning Increment [CSLC]
- 40.0 Degrees Single Actuator
- Switch Actuator Stop Device Type [CTDN]
- Fixed Stop Single Actuator
- Shaft Type [CRSJ]
- Round, Flatted Single Actuator
- Shaft Diameter [ABWV]
- 0.250 Inches Nominal Single Actuator
- Shaft Length [ABXF]
- 0.656 Inches Nominal Single Actuator
- Terminal Type [CSCF]
- Tab, Solder Lug
- Mounting Method [AXGY]
- Threaded Bushing Single Mounting Facility
- Thread Series Designator [THSD]
- Unef Single Mounting Facility
- Nominal Thread Size [CQJX]
- 0.375 Inches Single Mounting Facility
DLA Procurement Analysis 5930-00-153-8488
Management Data 5930-00-153-8488
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 5930-00-153-8488
Freight Information 5930-00-153-8488
5930-00-153-8488 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061300. A Sub NMFC of X. It has a NMFC Description of CIRCUIT BREAKER/SWITCH NOI. 5930-00-153-8488 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34410 which rates the freight between FCL and LCL. 5930-00-153-8488 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5930-00-153-8488 is not classified as a special type of cargo when transported by water. 5930-00-153-8488 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5930-00-153-8488
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- --
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- See Method of Preservation
- --
Contracting Technical Data File (CTDF) 5930-00-153-8488 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
