5930-00-137-4306
Toggle Switch
5930001374306 001374306 GP164S22 1X878 T111-16-73
A switch which is externally actuated by a lever and whose contacts open and close with an instantaneous (snap) action; includes items having one or more momentary positions. Includes switches (snap action) which use mercury to bridge contacts, and assemblages of complete switches (snap action) having common actuators. Excludes SWITCH, LEVER; SWITCH, ROTARY; SWITCH, KNIFE; SWITCH, SENSITIVE; and SWITCH, BOX. View more Toggle Switch
November 2023
2
Marketplace 5930-00-137-4306
Request a Quotation from participating marketplace vendors
Related Documents 5930-00-137-4306 5+ Documents (More...)

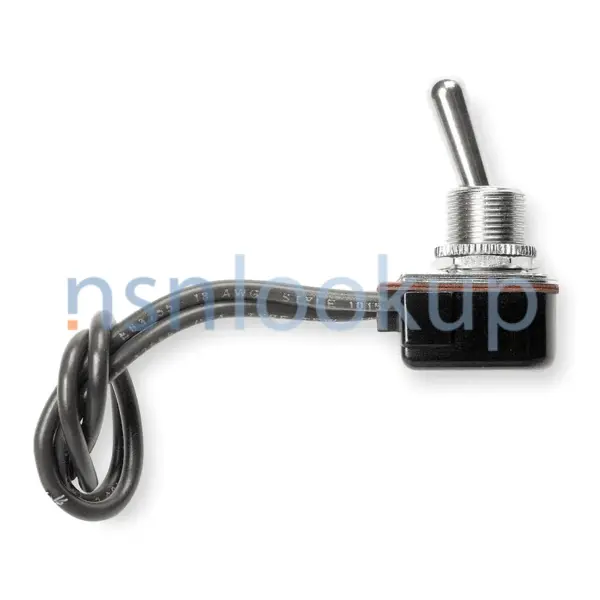

Photo 1/3 NSN 5930-00-137-4306 (Identification) 2/3 NSN 5930-00-137-4306 (Identification) 3/3 -
BUY NE FedMall Updated Every Day 1X878 RQST NE Updated Every Day 5930-00-137-4306 RQST NE Updated
Restrictions 5930-00-137-4306
5930-00-137-4306 is a Toggle Switch that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5930-00-137-4306
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5930-00-137-4306
- US Air Force (FXGX)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- FXTX
- US Navy (N9BN)
- Effective Date:
- 1 Nov 2005
- Supplementary Collaborators:
- HD
Approved Sources 5930-00-137-4306
- Part Number
- Manufacturer
- Status
- GP164S22
- Manufacturer
- 93457 - Super Vacuum Manufacturing Co., Inc. (Active)
- Primary Buy
- Primary Buy
- 1X878
- 25795 - W.W. Grainger, Inc. (Active)
- Secondary Buy
- Secondary Buy
- T111-16-73
- 73559 - Carling Technologies, Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5930-00-137-4306
- Characteristic
- Specifications
- FIIG
- Specifications
- A053A0
- Actuator Height [AFUS]
- 0.688 Inches Nominal
- Actuator Position-Action Relationship [AFUX]
- Up Position Maintained And Down Position Maintained
- Actuator Style [AFUQ]
- Round
- Body Height [ADAU]
- 0.500 Inches Nominal
- Body Style [AAQL]
- Bushing Mount
- Body Width [ADAT]
- 0.625 Inches Nominal
- Bushing Length [ABXD]
- 0.469 Inches Nominal
- Contact Load Current Rating At Maximum Rated Voltage [CXQR]
- 3.000 Amperes Resistive Dc And 3.000 Amperes Resistive Ac
- Maximum Voltage Rating In Volts [AFXE]
- 250.0 Ac And 250.0 Dc
- Mounting Method [AXGY]
- Threaded Bushing
- Nominal Thread Size [CQJX]
- 0.469 Inches
- Nonpile-Up Contact Arrangement [CRLD]
- 1 Pole, Single Throw, Both Positions Maintained Single Switch Unit
- Inclosure Type [AKNA]
- Fully Inclosed
- Terminal Type And Quantity [TTQY]
- 2 Wire Lead
- Thread Quantity Per Inch [CMLP]
- 32
- Thread Series Designator [THSD]
- Uns
DLA Procurement Analysis 5930-00-137-4306
- Last Stock Position:
- 86 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5930-00-137-4306
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- EH
- ELECTRONIC COMPONENTS
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5930-00-137-4306
Freight Information 5930-00-137-4306
5930-00-137-4306 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061300. A Sub NMFC of X. It has a NMFC Description of CIRCUIT BREAKER/SWITCH NOI. 5930-00-137-4306 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34410 which rates the freight between FCL and LCL. 5930-00-137-4306 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5930-00-137-4306 is not classified as a special type of cargo when transported by water. 5930-00-137-4306 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5930-00-137-4306
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- --
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- See Method of Preservation
- --
Procurement History 5930-00-137-4306 2 Records
Contracting Technical Data File (CTDF) 5930-00-137-4306 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
