5930-00-126-0527
Sensitive Switch
5930001260527 001260527 1LS10
A switch with a quick-acting mechanism actuated by a highly delicate tactile contact. Includes membrane switch. Excludes SWITCH, FLEXIBLE; SWITCH, PRESSURE; and SWITCH, THERMOSTATIC. View more Sensitive Switch
Managed by United States
NSN Created on 15 Nov 1968
Data Last Changed
November 2023
November 2023
NATO Update Count
5
5
NATO Data Quality
Marketplace 5930-00-126-0527
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 5930-00-126-0527 5+ Documents (More...)
BUY NE FedMall Updated Every Day 5930-00-126-0527 RQST NE Updated Every Day 5930-00-126-0527 RQST
Updated Every Day 5930-00-126-0527 RQST NE Related Documents 5930-00-126-0527 5+ Documents ( More...
BUY NE FedMall Updated Every Day 5930-00-126-0527 RQST NE Updated Every Day 5930-00-126-0527 RQST Updated
Updated Every Day 5930-00-126-0527 RQST NE Related Documents 5930-00-126-0527 5+ Documents ( More...
BUY NE FedMall Updated Every Day 5930-00-126-0527 RQST NE Updated Every Day 5930-00-126-0527 RQST Updated
to enable JavaScript in your web browser . 5930-01-023-4615Sensitive Switch5930010234615 010234615 1LS10
Sensitive Switch 5930001260527 https/ https//www.nsnlookup.com /fsg-59/fsc-5930/us 5930-00-126-
0527 Sensitive Switch 5930001260527 001260527 Documents 5930-00-126-0527 5+ Documents ( More... https
Sensitive Switch 5930001260527 https/ https//www.nsnlookup.com /fsg-59/fsc-5930/us 5930-00-126-
0527 Sensitive Switch 5930001260527 001260527 Documents 5930-00-126-0527 5+ Documents ( More... https
Upgrade for $1 a day Upgrade your Account Upgrade 5930-01-629-0828Lever Switch5930016290828 016290828 1LS10
www.nsnlookup.com /fsg-59/fsc-5930/us 5930-01-629-0828 Lever Switch 5930016290828 016290828,1LS10-L 1LS10
Sensitive Switch 5930001260527 001260527 010234615 1LS10 Sensitive Switch 5930001260527 https//
www.nsnlookup.com /fsg-59/fsc-5930/us 5930-01-629-0828 Lever Switch 5930016290828 016290828,1LS10-L 1LS10
Sensitive Switch 5930001260527 001260527 010234615 1LS10 Sensitive Switch 5930001260527 https//
to enable JavaScript in your web browser . 5930-01-023-4614Sensitive Switch5930010234614 010234614 1LS10
www.nsnlookup.com /fsg-59/fsc-5930/us 5930- https https//www.nsnlookup.com /fsg-59/fsc-5930/us 5930-00-126-0527
Sensitive Switch 5930001260527 001260527 www.nsnlookup.com /fsg-59/fsc-5930/us 5930-00-126-0527
www.nsnlookup.com /fsg-59/fsc-5930/us 5930- https https//www.nsnlookup.com /fsg-59/fsc-5930/us 5930-00-126-0527
Sensitive Switch 5930001260527 001260527 www.nsnlookup.com /fsg-59/fsc-5930/us 5930-00-126-0527
Request a Quotation from participating marketplace vendors Request Subscribe to View Vendor Details... 1LS10
Related Documents 5930-01-030-4729 2+ Documents RQST https//www.nsnlookup.com /fsg-59/fsc-5930/us 5930-00-126-0527
Sensitive Switch 5930001260527 001260527 www.nsnlookup.com /fsg-59/fsc-5930/us 5930-01-629-0828
Related Documents 5930-01-030-4729 2+ Documents RQST https//www.nsnlookup.com /fsg-59/fsc-5930/us 5930-00-126-0527
Sensitive Switch 5930001260527 001260527 www.nsnlookup.com /fsg-59/fsc-5930/us 5930-01-629-0828
Restrictions 5930-00-126-0527
5930-00-126-0527 is a Sensitive Switch that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5930-00-126-0527
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5930-00-126-0527
- US Army (A918)
- Effective Date:
- 1 Jun 2006
- Former MOE Rule:
- A196
- Supplementary Receivers:
- AZ
- US Air Force (FXGX)
- Effective Date:
- 1 Jun 2006
- Former MOE Rule:
- FXTX
- US Navy (N9BN)
- Effective Date:
- 1 Jun 2006
- Supplementary Collaborators:
- HD
Approved Sources 5930-00-126-0527
- Part Number
- Manufacturer
- Status
- 1LS10
- Manufacturer
- 91929 - Honeywell International Inc. (Active)
- Primary Buy
- Primary Buy
- 1LS10
- 076M6 - Bae Systems Land & Armaments L.P. (Active)
- Secondary Buy
- Secondary Buy
- 1LS10
- 0FW39 - Bae Systems Tactical Vehicle Systems (Active)
- Secondary Buy
- Secondary Buy
Datasheet 5930-00-126-0527
- Characteristic
- Specifications
- FIIG
- Specifications
- A053A0
- Actuator Height [AFUS]
- 0.250 Inches Nominal
- Actuator Diameter [AFUR]
- 0.125 Inches Nominal
- Actuator Length [AFGK]
- 5.560 Inches Maximum
- Actuator Movement [CXQQ]
- 20.0 Pretravel Degrees Maximum And 30.0 Overtravel Degrees Minimum And 12.0 Differential Degrees Maximum

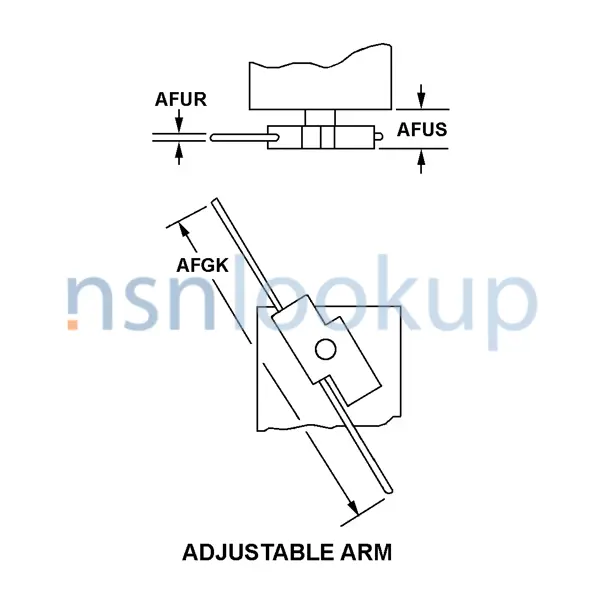

- Actuator Style [AFUQ]
- Adjustable Arm
- Body Style [AAQL]
- Hole Mounted
- Center To Center Distance Between Housing Mounting Facilities Parallel To Length [AFWH]
- 2.310 Inches Nominal
- Center To Center Distance Between Housing Mounting Facilities Parallel To Width [AFWJ]
- 1.190 Inches Nominal
- Contact Load Current Rating At Maximum Rated Voltage [CXQR]
- 100.000 Milliamperes Resistive Dc And 10.000 Amperes Resistive Ac
- Hazardous Locations/Environmental Protection [ABFE]
- Driptight
- Housing Length [AFWD]
- 3.700 Inches Nominal
- Housing Width [AFWE]
- 1.570 Inches Nominal
- Maximum Voltage Rating In Volts [AFXE]
- 480.0 Ac And 550.0 Dc
- Mounting Method [AXGY]
- Unthreaded Hole
- Nonpile-Up Contact Arrangement [CRLD]
- 1 Two Circuit, Double Break/Double Make, One Position Momentary Single Switch Unit
- Inclosure Type [AKNA]
- Fully Inclosed
- Overall Height [ABKW]
- 2.094 Inches Nominal
- Overall Length [ABHP]
- 3.700 Inches Nominal
- Overall Width [ABMK]
- 1.570 Inches Nominal
- Switch Actuating Force [CSJN]
- 5.0 Ounces Maximum
- Switch Release Force [CRRM]
- 4.0 Ounces Maximum
- Terminal Type And Quantity [TTQY]
- 4 Screw
Weapon Systems (WSDC) 5930-00-126-0527
DLA Procurement Analysis 5930-00-126-0527
- Last Stock Position:
- 16 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5930-00-126-0527
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2022
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- Jan 2022
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- Oct 2020
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- Oct 2019
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
Army
- Materiel Category and Inventory Manager:
- Q
- Electronics Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 3B
Similar Supply Items to 5930-00-126-0527
Freight Information 5930-00-126-0527
5930-00-126-0527 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061300. A Sub NMFC of X. It has a NMFC Description of CIRCUIT BREAKER/SWITCH NOI. 5930-00-126-0527 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34410 which rates the freight between FCL and LCL. 5930-00-126-0527 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5930-00-126-0527 is not classified as a special type of cargo when transported by water. 5930-00-126-0527 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
