5930-00-079-7928
Inertia Switch
5930000797928 000797928 168304-1
A switch which is specifically designed to be actuated by an abrupt change in velocity of the item upon which it is mounted. View more Inertia Switch
May 2023
3
Marketplace 5930-00-079-7928
Request a Quotation from participating marketplace vendors
Related Documents 5930-00-079-7928 5+ Documents (More...)
/fsg-59/fsc-5930/us
Day 5930-00-079-7928 RQST NE Related Documents 5930-00-079-7928 5+ Documents ( More... ) https//www.nsnlookup.com
5930-00-079-7928 RQST NE Updated Every Day 5930-00-079-7928 RQST Updated Every Day 5930-00-079-7928
/fsg-59/fsc-5930/uk
5930/uk 5930-99-429-3518 https//www.nsnlookup.com https//www.nsnlookup.com /fsg-59/fsc-5930/us 5930-00-079-7928
Inertia Switch 5930000797928 000797928 079-7928 RQST Updated Every Day 5930-00-079-7928 https//
/fsg-59/fsc-5930/us
5930016968310 016968310,VN-110 00-390-9717 5930-00-079 https//www.nsnlookup.com /fsg-59/fsc-5930/us 5930-00-079-7928
Inertia Switch 5930000797928 000797928 5930-00-390-9717 5930-00-079-7928 https//www.nsnlookup.com
Inertia Switch 5930000797928 000797928 5930/us 5930-00-079-7928 Inertia Switch 5930000797928000797928
551-7052 5930-01-331-9216 5930-01-500-5053 5930-01-658-0996 5930-00-972-0544 5930-00-390-9717 5930-00-079-7928
Inertia Switch 5930000797928 000797928 RQST Updated Every Day 5930-00-079-7928 https// https//www.nsnlookup.com
551-7052 5930-01-331-9216 5930-01-500-5053 5930-01-658-0996 5930-00-972-0544 5930-00-390-9717 5930-00-079-7928
Restrictions 5930-00-079-7928
5930-00-079-7928 is a Inertia Switch that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5930-00-079-7928
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5930-00-079-7928
- National Security Agency (DGX1)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- DTX1
- Supplementary Receivers:
- TX
Approved Sources 5930-00-079-7928
- Part Number
- Manufacturer
- Status
- 168304-1
- Manufacturer
- 37695 - Raytheon Company (Active)
- Primary Buy
- Primary Buy
Datasheet 5930-00-079-7928
- Characteristic
- Specifications
- FIIG
- Specifications
- A048B0
- Body Diameter [ABPM]
- 0.631 Nominal Inches
- Body Length [ADAQ]
- 2.000 Inches Nominal
- Contact Action Stimulus [CQGB]
- Increase
- Contact Adjustability [CTYC]
- Actuation Point Not Adjustable And Deactuation Point Not Adjustable
- Contact Load Current Rating [CTHF]
- 1.0 Milliamperes Resistive Load Single Voltage
- Contact Stimulus Rating [CTYX]
- 3.70 Actuation Point Minimum Gravity Units And 4.50 Actuation Point Maximum Gravity Units And 0.30 Differential Point Minimum Gravity Units And 0.50 Differential Point Maximum Gravity Units
- Contact Voltage Rating In Volts [CTZB]
- 1.5 Dc At Sea Level Single Voltage
- Features Provided [CBBL]
- Electrical Access Port
- Mounting Method [AXGY]
- Clamp
- Nonpile-Up Contact Arrangement [CRLD]
- 1 Pole, Single Throw, Both Positions Maintained
- Operating Temp Rating [AWTN]
- -55.0 Deg Celsius Minimum And 85.0 Deg Celsius Maximum

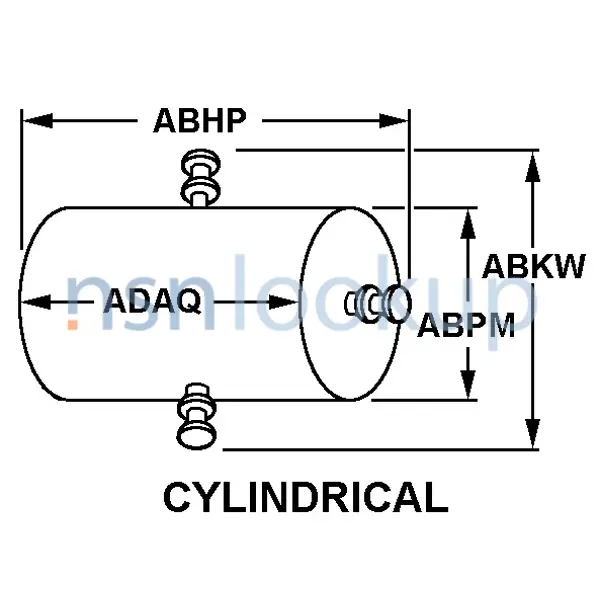

- Style Designator [STYL]
- Cylindrical
- Overall Height [ABKW]
- 1.125 Inches Nominal
- Overall Length [ABHP]
- 2.250 Inches Nominal
- Terminal Type [CSCF]
- Tab, Solder Lug
DLA Procurement Analysis 5930-00-079-7928
Management Data 5930-00-079-7928
NATO Stock Numbers Related to 5930-00-079-7928
Freight Information 5930-00-079-7928
5930-00-079-7928 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061300. A Sub NMFC of X. It has a NMFC Description of CIRCUIT BREAKER/SWITCH NOI. 5930-00-079-7928 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34410 which rates the freight between FCL and LCL. 5930-00-079-7928 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5930-00-079-7928 is not classified as a special type of cargo when transported by water. 5930-00-079-7928 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5930-00-079-7928
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- --
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- See Method of Preservation
- --
