5930-00-069-3604

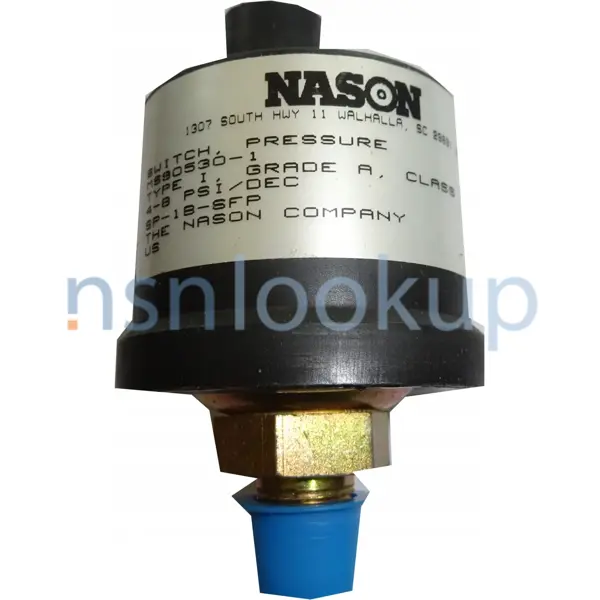

Pressure Switch
5930000693604 000693604 MIL-DTL-12211 SP-1A-11RP AC-5652656 506AM 5652656 35-5652656 10914602 SC-C-644620 MS90530-9 177MBC1 LA330-17 MIL-S-12211 P67719
A switch which is actuated by changes in pressure of any gas or liquid or by changes in a vacuum acting upon its sensing element. Excludes BAROSWITCH; SWITCH, PRESSURE-THERMOSTATIC; and SWITCH, SENSITIVE. View more Pressure Switch
Managed by United States
NSN Created on 11 Jul 1967
Data Last Changed
December 2023
December 2023
NATO Update Count
42
42
NATO Data Quality
Marketplace 5930-00-069-3604
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
35-5652656 SWITCH,PRESSURE 1 EA NS
SCC644620 SWITCH,PRESSURE 1 EA NS
MS90530-9 SWITCH,PRESSURE 1 EA NS
SP-1A-11RP SWITCH,PRESSURE 1 EA NS
SC-C-644620 SWITCH,PRESSURE 1 EA NS
AC-5652656 RQST NE
5652656 RQST NE
Updated Every Day 5930-00-069-3604 RQST NE
Updated Every Day 5930-00-069-3604 RQST
Updated Every Day 5930-00-069-3604 RQST NE
Related Documents 5930-00-069-3604 5+ Documents (More...)
MIL-DTL-12211 SP-1A-11RP AC-5652656 506AM 10914602 SC-C-644620 5652656 35-5652656 MS90530-9 177MBC1
LA330-17 MIL-S-12211 P67719 A switch which is actuated by changes in pressure of any gas or liquid or
MS90530-9 SWITCH,PRESSURE 1 EA NS Request Quotation 5930-00-069-3604 SWITCH,PRESSURE 6 EA NS Request
LA330-17 MIL-S-12211 P67719 A switch which is actuated by changes in pressure of any gas or liquid or
MS90530-9 SWITCH,PRESSURE 1 EA NS Request Quotation 5930-00-069-3604 SWITCH,PRESSURE 6 EA NS Request
JavaScript in your web browser . 6515-12-197 https https//www.nsnlookup.com /fsg-59/fsc-5930/us 5930-00-069-3604
Pressure Switch 5930000693604 000693604 MIL-DTL-12211 SP-1A-11RP AC-5652656 506AM 10914602 SC-C
-644620 5652656 35-5652656 MS90530-9 177MBC1 LA330 5930000693604000693604 MIL-DTL-12211SP-1A-11RPAC-5652656506AM10914602SC-C
Pressure Switch 5930000693604 000693604 MIL-DTL-12211 SP-1A-11RP AC-5652656 506AM 10914602 SC-C
-644620 5652656 35-5652656 MS90530-9 177MBC1 LA330 5930000693604000693604 MIL-DTL-12211SP-1A-11RPAC-5652656506AM10914602SC-C
https//www.nsnlookup.com
/fsg-28/fsc-2840/us
/fsg-28/fsc-2840/us
2840-00-957-7068 Turbine Engine Accessory Drive Gearbox
Accessory Drive Gearbox2840009577068 009577068 https//www.nsnlookup.com /fsg-59/fsc-5930/us 5930-00-069-3604
Pressure Switch 5930000693604 000693604 3604Pressure Switch5930000693604 000693604 MIL-DTL-12211
SP-1A-11RP AC-5652656 506AM 10914602 SC-C-644620 SWITCH,PRESSURE 1 EA NS Request Quotation SP-1A-11RP
Pressure Switch 5930000693604 000693604 3604Pressure Switch5930000693604 000693604 MIL-DTL-12211
SP-1A-11RP AC-5652656 506AM 10914602 SC-C-644620 SWITCH,PRESSURE 1 EA NS Request Quotation SP-1A-11RP
MS90530-9 SWITCH,PRESSURE 2 EA NS Request Quotation Subscribe to View Vendor Details... 10914602 SWITCH
SC-C-644620 SWITCH,PRESSURE 1 EA NS Request Quotation 35-5652656 SWITCH,PRESSURE 1 EA NS Request Quotation
MS90530-9 SWITCH,PRESSURE 1 EA NS Request Quotation SCC644620 SWITCH,PRESSURE 1 EA NS Request Quotation
SC-C-644620 SWITCH,PRESSURE 1 EA NS Request Quotation 35-5652656 SWITCH,PRESSURE 1 EA NS Request Quotation
MS90530-9 SWITCH,PRESSURE 1 EA NS Request Quotation SCC644620 SWITCH,PRESSURE 1 EA NS Request Quotation
RESISTOR,THERMAL 19 EA NS Request Quotation Updated https//www.nsnlookup.com /fsg-59/fsc-5930/us 5930-00-069-3604
Pressure Switch 5930000693604 000693604 MIL-DTL-12211 SP-1A-11RP AC-5652656 506AM 10914602 SC-C
-644620 5652656 35-5652656 MS90530-9 177MBC1 LA330 5930000693604000693604 MIL-DTL-12211SP-1A-11RPAC-5652656506AM10914602SC-C
Pressure Switch 5930000693604 000693604 MIL-DTL-12211 SP-1A-11RP AC-5652656 506AM 10914602 SC-C
-644620 5652656 35-5652656 MS90530-9 177MBC1 LA330 5930000693604000693604 MIL-DTL-12211SP-1A-11RPAC-5652656506AM10914602SC-C
Restrictions 5930-00-069-3604
5930-00-069-3604 is a Pressure Switch that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5930-00-069-3604
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5930-00-069-3604
- US Army (A918)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- A196
- Supplementary Receivers:
- AZBF
- US Air Force (FXGX)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- FXTX
- US Marine Corps (MC49)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- MC13
- US Navy (N9BN)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- NIND
- Supplementary Collaborators:
- GTHD
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Kuwait (YK01)
- Effective Date:
- 1 Jan 2015
- Morocco (YP01)
- Effective Date:
- 1 Nov 2008
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- France (ZF01)
- Effective Date:
- 1 Jun 2015
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- United Kingdom (ZK01)
- Effective Date:
- 1 Apr 1991
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 1991
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 5930-00-069-3604
- Part Number
- Manufacturer
- Status
- MS90530-9
- Manufacturer
- 96906 - Military Standards (Active)
- Definitive Standard
- Definitive Standard
- MIL-DTL-12211
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
- 506AM
- 3F847 - Stewart-Warner Corp Bassick Div (Obsolete)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- SP-1A-11RP
- 85814 - Nason Company, The Inc (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 177MBC1
- 05415 - Linde Lift Truck Corp. (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 5930000693604
- SCY13 - E.C.A Etablissement (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- LA330-17
- 46717 - Pettibone Llc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- MIL-S-12211
- 81349 - Military Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- P67719
- 04285 - Athey Products Corp (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 5930000693604
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
- AC-5652656
- 70040 - General Motors Llc (Obsolete)
- Advisory Reference
- Advisory Reference
- 506AM
- 57733 - Stewart-Warner Corporation (Active)
- Advisory Reference
- Advisory Reference
- 177MBC1
- 556A6 - Linde Material Handling North (Active)
- Advisory Reference
- Advisory Reference
- 5652656
- 24617 - General Motors Corp (Active)
- Advisory Reference
- Advisory Reference
- 35-5652656
- 16662 - Lift Parts Mfg Co Inc (Replaced)
- Advisory Reference
- Advisory Reference
- 10914602
- 19207 - U S Army Tank Automotive Command (Active)
- Advisory Reference
- Advisory Reference
- SC-C-644620
- 80063 - Us Army Communications & Electronics (Active)
- Advisory Reference
- Advisory Reference
Datasheet 5930-00-069-3604
- Characteristic
- Specifications
- FIIG
- Specifications
- A048B0
- Body Length [ADAQ]
- 0.860 Inches Nominal
- Contact Action Stimulus [CQGB]
- Increase
- Contact Adjustability [CTYC]
- Deactuation Point Not Adjustable And Actuation Point Not Adjustable
- Contact Load Current Rating [CTHF]
- 6.0 Amperes Resistive Load Single Voltage
- Contact Stimulus Rating [CTYX]
- 9.00 Actuation Point Minimum Pounds Per Square Inch And 13.00 Actuation Point Maximum Pounds Per Square Inch And 11.00 Deactuation Point Nominal Pounds Per Square Inch
- Contact Voltage Rating In Volts [CTZB]
- 24.0 Dc At Sea Level Single Voltage
- Hazardous Locations/Environmental Protection [ABFE]
- Weatherproof
- Media For Which Designed [MEDA]
- Gas Or Liquid
- Mounting Method [AXGY]
- Terminal
- Nominal Thread Size [CQJX]
- 0.250 Inches Single Pressure Connection
- Nonpile-Up Contact Arrangement [CRLD]
- 1 Pole, Single Throw, Both Positions Maintained
- Style Designator [STYL]
- Cylindrical
- Inside Diameter [AARX]
- 0.250 Inches Nominal Single Connection
- Pressure Connector Type [CTZL]
- Plain, Threaded Internal Single Connection
- Pressure Switch Type [AJZC]
- Gage
- Overall Diameter [ADAV]
- 2.230 Inches Maximum
- Overall Length [ABHP]
- 4.188 Inches Nominal
- Width Across Flats [ASDB]
- 0.875 Inches Nominal
- Terminal Type [CSCF]
- Connector, Plug
- Thread Class [AAJD]
- 3B Single Pressure Connection
- Thread Quantity Per Inch [CMLP]
- 18 Single Pressure Connection
- Thread Series Designator [THSD]
- Npt Single Pressure Connection
Weapon Systems (WSDC) 5930-00-069-3604
DLA Procurement Analysis 5930-00-069-3604
- Last Stock Position:
- 640 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5930-00-069-3604
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2022
- US Marine Corps (DM)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Jan 2021
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Feb 2020
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- US Marine Corps (DM)
- M
- 0
- Reversal Of Phrase Code Z 5930-00-888-7656
- 0
Army
- Materiel Category and Inventory Manager:
- Q
- Electronics Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- EH
- ELECTRONIC COMPONENTS
- Price Validation Code:
- V
- The current standard price has been validated.
The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
ZOP or Standard price challenges are permissible but must be supported by adequate justification.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Material Identification:
- B
- Consumable Repair Parts
- Operational Test:
- No Special Procedures
Similar Supply Items to 5930-00-069-3604
Freight Information 5930-00-069-3604
5930-00-069-3604 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061300. A Sub NMFC of X. It has a NMFC Description of CIRCUIT BREAKER/SWITCH NOI. 5930-00-069-3604 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34410 which rates the freight between FCL and LCL. 5930-00-069-3604 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5930-00-069-3604 is not classified as a special type of cargo when transported by water. 5930-00-069-3604 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5930-00-069-3604
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- MIL-DTL-17667, Neutral Wrapping Paper
- No Requirement
- Not Applicable
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- MIL-DTL-17667, Neutral Wrapping Paper
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Any Suitable Fiber Box
Procurement History 5930-00-069-3604 5 Records
- Contract
- Date
- CAGE
- Quantity
- Net Price
- Std Price
- CAGE
- SPE7M817V1235
- 15 May 2017
- Subscribe
- 645
- Subscribe
- Subscribe
- Subscribe
- SPE7M117V6336
- 27 Feb 2017
- Subscribe
- 139
- Subscribe
- Subscribe
- Subscribe
- SPE7M817V0450
- 23 Jan 2017
- Subscribe
- 334
- Subscribe
- Subscribe
- Subscribe
- SPE7M117V4807
- 20 Jan 2017
- Subscribe
- 100
- Subscribe
- Subscribe
- Subscribe
- SPE7M013V5285
- 18 Jul 2013
- Subscribe
- 541
- Subscribe
- Subscribe
- Subscribe
Contracting Technical Data File (CTDF) 5930-00-069-3604 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- Z
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
